Common Procedures
Removal and Replacement 3-3
Illustration Legend:
1 - Confirmation Dialog Box (OK Button)
To Set the Library Online
1. Log in to the SL150 remote interface using your browser (see Figure 2–1).
2. Click Library is Offline.
3. Select Set Library Online (takes the library out of maintenance mode).
4. Click OK in the dialog box.
The library state changes to online.
To Enable the Locate Light
1. Log in to the SL150 remote interface using your browser (see Figure 2–1).
2. Click the locate icon in the upper left of the screen (see Figure 3–4).
3. Select Switch Locate Light On.
The GUI locate indicator activates.
The physical locate indicators activate on the front control panel and in the black
rectangle on the robot CRU (at the rear of the base module, see Figure 3–1).

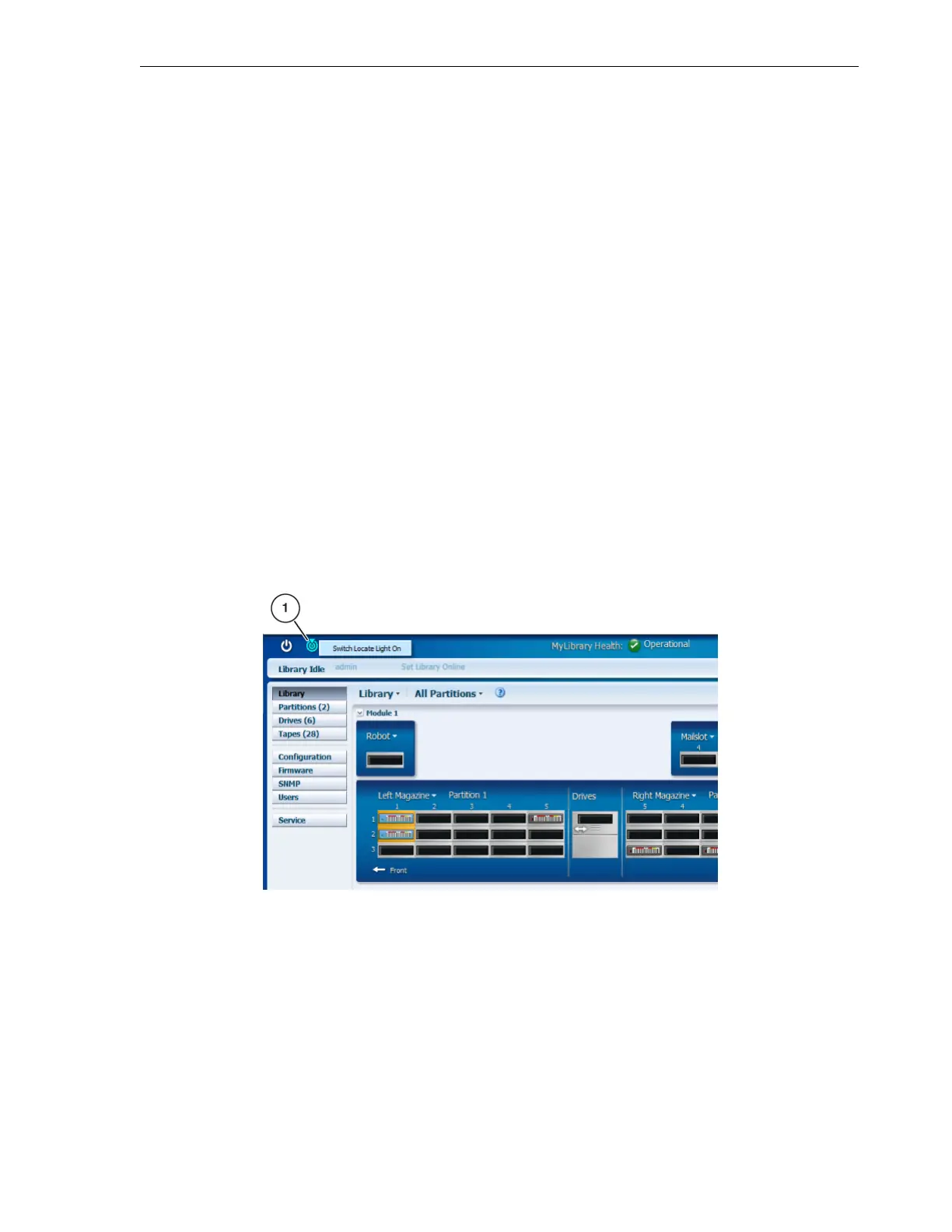

Figure 3–4 Locate the Library
Illustration Legend:
1 - Locate Indicator
Tape Cartridge Magazine
Adding or removing a tape cartridge magazine posts a Unit Attention to the host
connected to the library or to the affected partition.
The tape magazine for the right side of a module is shown in Figure 3–5. The left and
right magazines are not interchangeable. Each magazine holds 15 cartridges in slots
arranged in a three row by five column array.
