Hot Swappable CRUs
Removal and Replacement 3-7

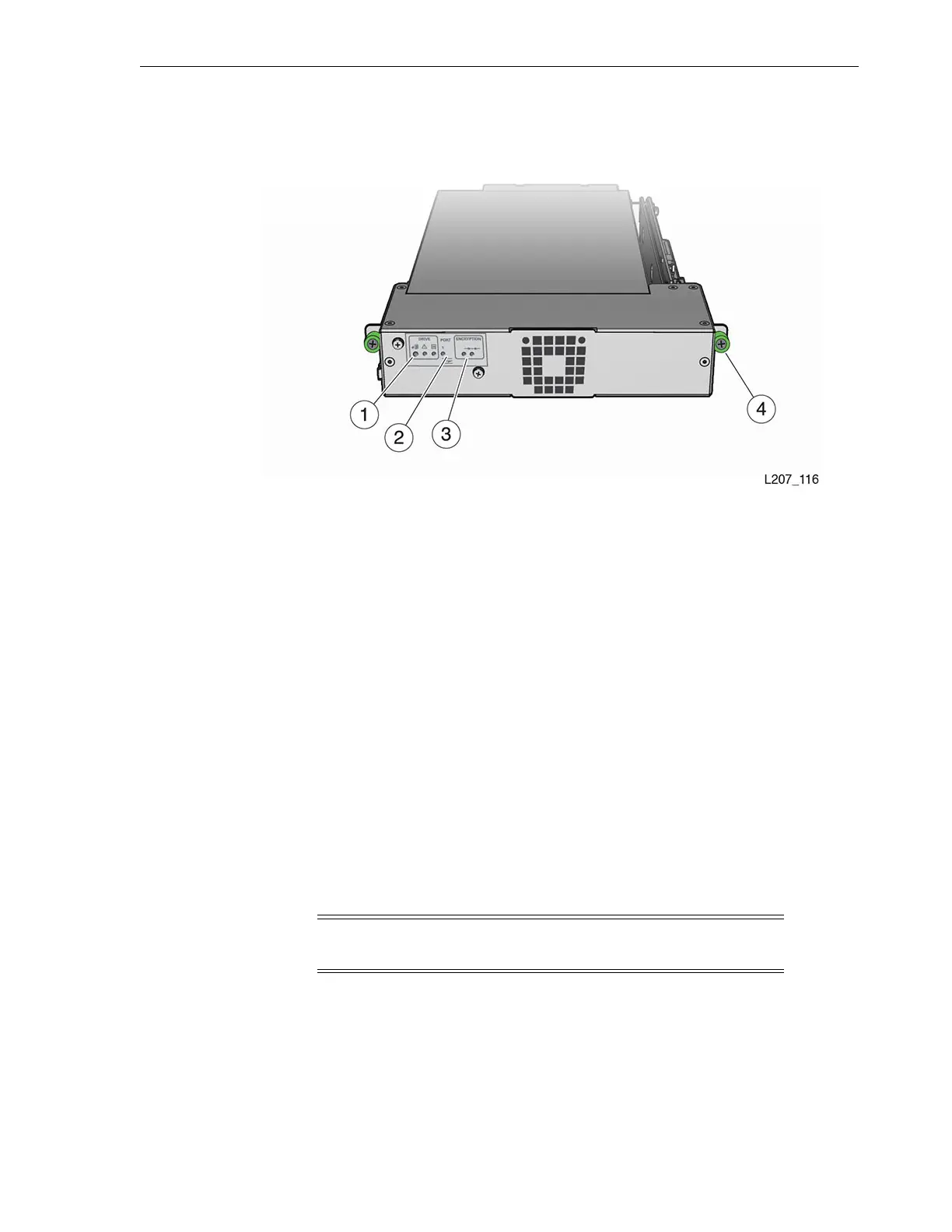

Figure 3–8 Tape Drive Tray CRU
Illustration Legend:
1 - Drive Indicators
2 - Port Indicator (SAS and LTO-6 FC Drives have Two Ports)
3 - Encryption Indicator and IP Reset Switch
4 - Thumbscrew (Drive Tray has Two Thumbscrews)
Bridged Drive Considerations
The robot control is a SCSI Medium Changer device that appears as LUN 1 on the
bridged tape drive.
■ If the library is not partitioned, there is a designated bridged drive that provides
the robot control for the entire library.
■ If the library is partitioned, there is a designated bridged drive that provides the
robot control for its assigned partition.
Removal of a bridge drive results in loss of host connectivity.
To Remove the Drive Tray
Note: If the failed drive is the bridged drive, see "Bridged Drive
Considerations".
Task 1 Preparation
1. Quiesce activity for this tape drive.
2. Log in to the SL150 remote interface using your browser (see Figure 2–1).
3. (Optional) Enable the locate library indicator (see "To Enable the Locate Light" on
page 3-3).
