7420 Controller Hardware Overview
Figure Legend Figure Legend
4 Power supply unit 1 AC inlet 11 Network management (NET MGT) 10/100 BASE-T
Ethernet port
5 System status LEDs Power: green Attention: amber
Locate: white
12 Serial management (SER MGT) port
6 PCIe slots 0-4 13 DB-15 video connector
7 Cluster card slot
Cluster Interface Card Compatibility - The 7420 controller contains a Version 2 cluster
interface card. This card cannot be replaced with a Version 3 cluster interface card.
For information about how to connect cables to form a cluster, see “Connecting Cluster Cables”
in Oracle ZFS Storage Appliance Cabling Guide.
Ethernet Ports
There are four RJ-45 Gigabit Ethernet connectors (NET0, NET1, NET2, NET3) located on
the motherboard that operate at 10/100/1000 Mbit/sec. These network interfaces must be
configured before use.
Network Management Port
The network management connector (NET MGT) is an RJ-45 10/100 BASE-T Ethernet port
and provides a LAN interface to the SP console.

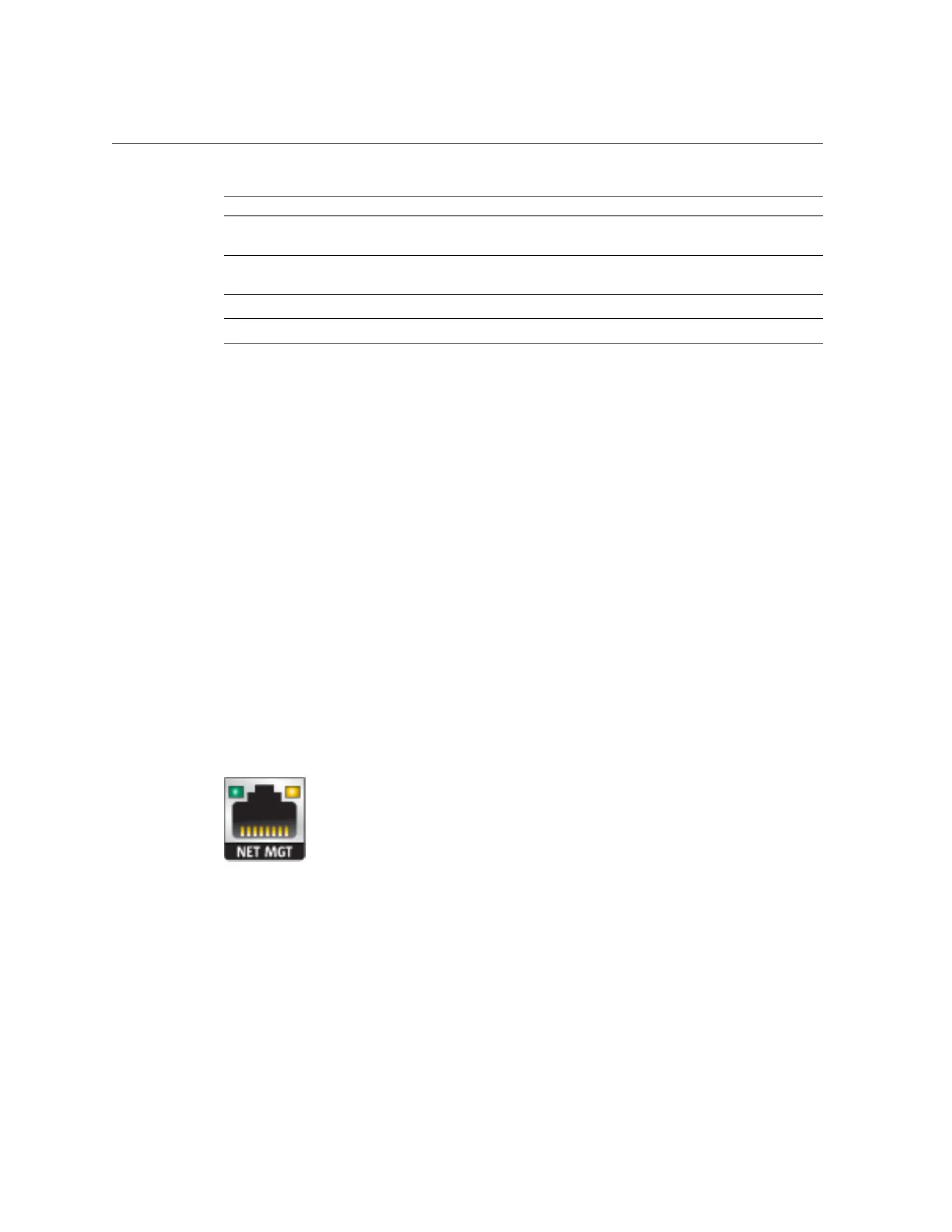

FIGURE 38
7420 Controller Network Management Port
Serial Management Port
The serial management connector (SER MGT) is an RJ-45 connector and provides a terminal
connection to the SP console.
Servicing the 7x20 Controller 217
