ST 9100 - INSTALLATION GUIDE

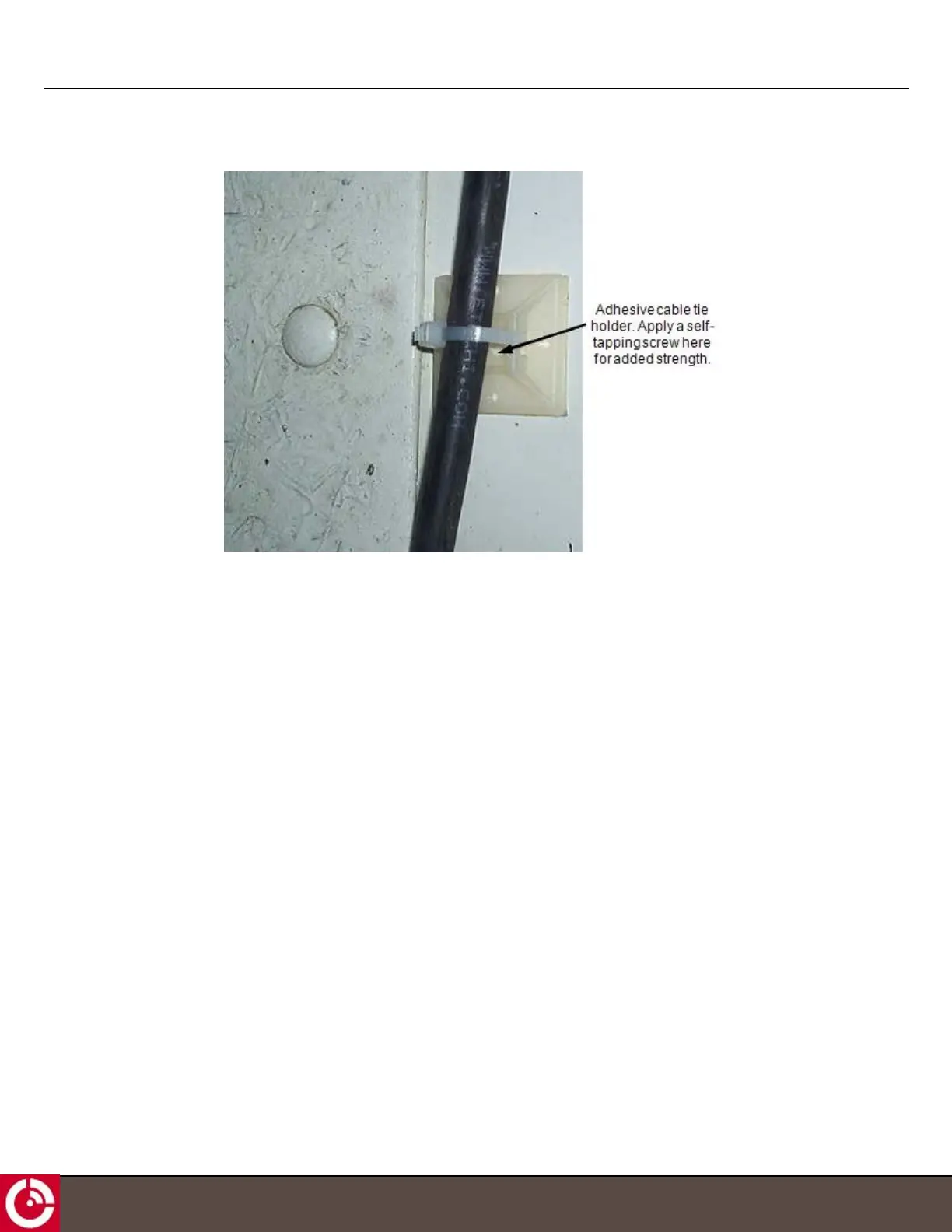

Figure 12: Cable Management
1.6 Connect the Cables and Mount the ST 9100
Note: The Solution Provider is responsible for providing mounting instructions if the mounting is to be done using
tools or configurations that are different from the ones described in this document.
Note: The Installer is responsible for complying with local electrical codes.
CAUTION: Cable management and connector strain relief must be incorporated in the installation.
ORBCOMM highly recommends securing the cable at regular intervals along its length as part of
the installation to prevent cable wear and eliminate strain on the connector. Damage to the
connector interface or cable might result and lead to hardware failure.
1.6.1 Connect the Cables
1. Connect the satellite antenna to the curry yellow FAKRA connector on the transceiver by pushing until you
hear a click.
T414, Version 0.04 BETA © ORBCOMM
®
