ST 9100 - INSTALLATION GUIDE

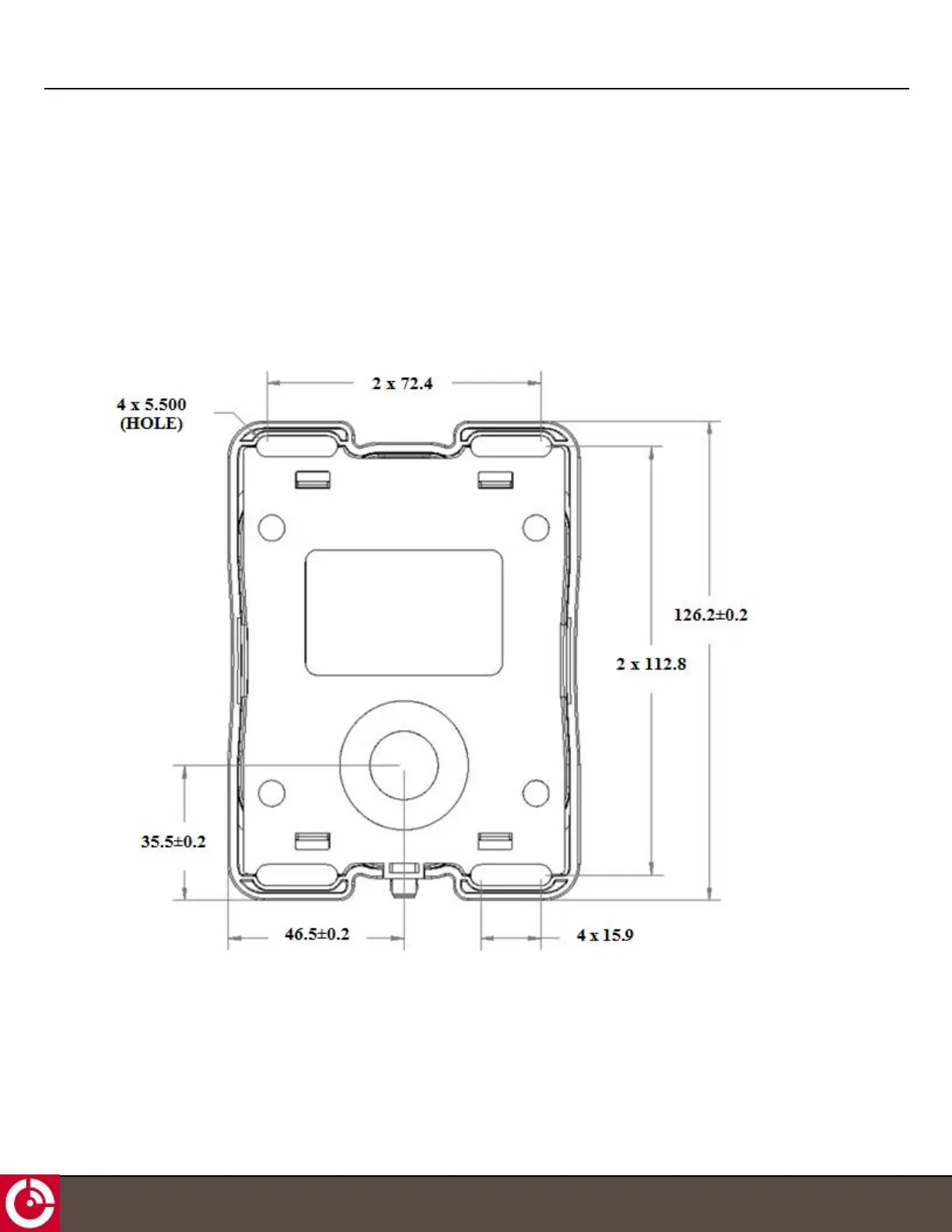

APPENDIXB SATELLITE ANTENNA DIMENSIONS
CAUTION: Before drilling check the template against actual hardware for dimensional accuracy. If it is not
correct, DO NOT USE THIS TEMPLATE. Use the physical antenna hardware as a template.
CAUTION: Cable management and connector strain relief must be incorporated in the installation. Secure the
cable no more than 15 cm (6 in.) from the antenna enclosure and at regular intervals along its
length as part of the installation to prevent cable wear and eliminate strain on the connector.
Damage to the connector interface or cable may otherwise result and lead to hardware failure.
Note: Dimensions shown in mm.
T414, Version 0.04 BETA © ORBCOMM
®
Proprietary
30
