TECHNICAL MANUAL BLUE PAPER RISE · 202130 | ORBEA ORBEA | 31
EN

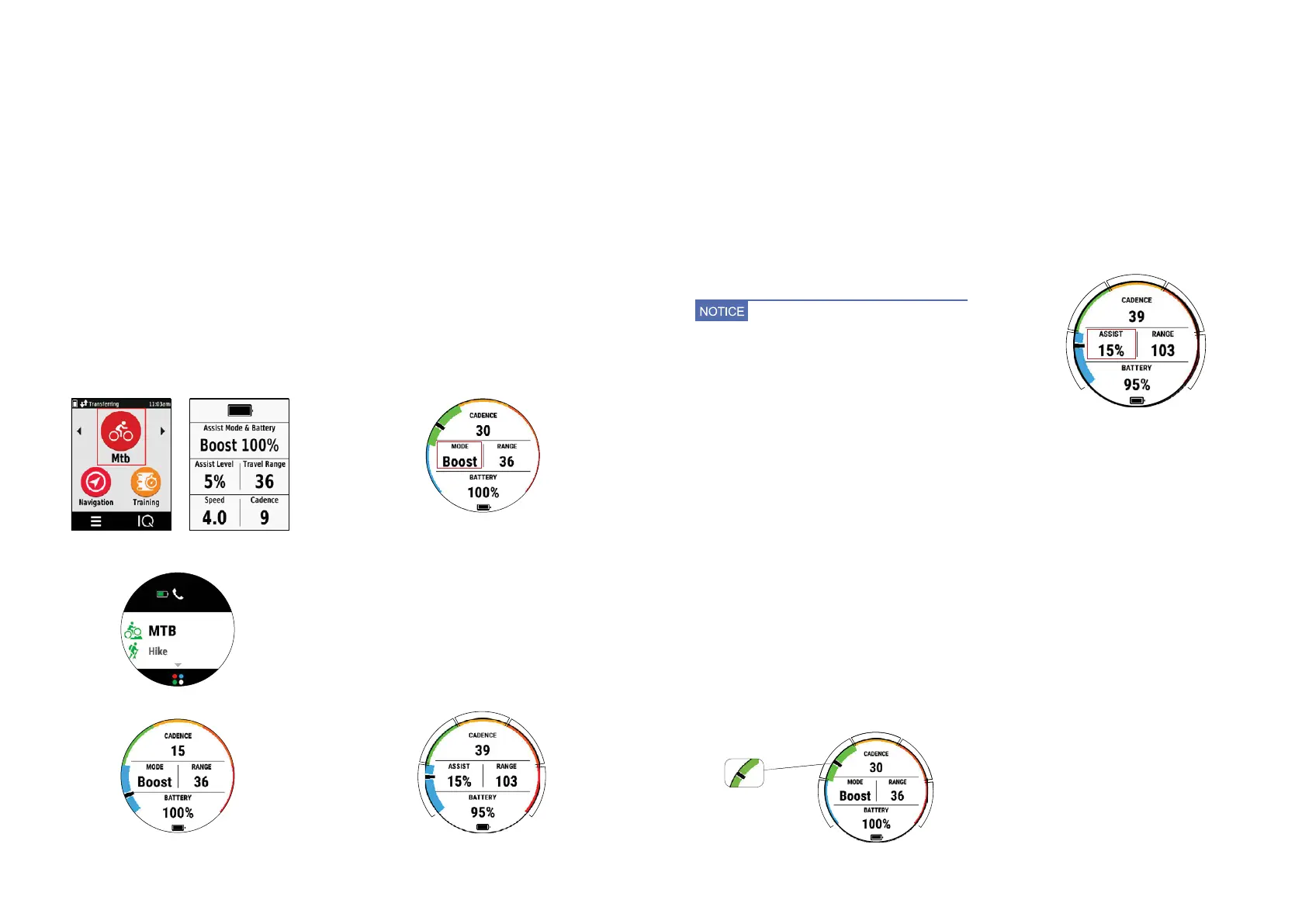

USING ORBEA TOOLBOX
Turn your Rise on to connect it to your Garmin device and
access the Orbea RS Toolbox data screen within the activi-
V[RTQƂNG[QWJCXGUGNGEVGFVQWUG4KUG
Rise and Toolbox will connect via ANT+ automatically. If
the data from your Rise is not shown in Toolbox, switch
Rise off and turn it back on to reset the connection.
&WTKPICPCEVKXKV[VJG1TDGC456QQNDQZFCVCƂGNFYKNNDG
CEEGUUKDNGCUCP[QVJGTFCVCƂGNFQP[QWT)CTOKPFGXKEG
YKVJKPVJGCEVKXKV[RTQƂNGKPYJKEJ[QWCTGWUKPI4KUG
AVAILABLE INFORMATION IN ORBEA RS TOOLBOX
ASSIST MODE: Shows the currently selected assist mode
from the modes available: Off, Eco, Trail, Boost.
· Assist mode visualization options (on Garmin watches):
Orbea RS Toolbox allows you to see the currently selec-
ted assist mode in two different ways. Read the Data
Fields Customization section of this manual to learn
JQYVQUGNGEVVJGKPHQTOCVKQPUJQYPKPGCEJƂGNF
· You can choose to see the selected assist mode on
QPGQHVJGFCVCƂGNFU QH6QQNDQZ6JG ƂGNFYKNNUJQY
the name of the selected mode.
· It is also possible to see the selected assist modes on
the external colour band around the screen. When se-
lecting an assist mode, the corresponding area will be
highlighted. The assist modes colour codes are:
BLUE: Walk Assist selected but not active.
GREEN: Walk Assist active.
YELLOW: Eco.
ORANGE: Trail.
RED: Boost.
Walk Assist
Walk Assist
Active
Eco
Trail
Boost
BATTERY: Charge level of the battery shown as a per-
centage.
If an external RS Range Extender battery is connected, the
system will account for the total capacity of both the inter-
nal battery and the Range Extender (612 Wh) and Toolbox
will show the percentage of battery charge remaining ba-
sed on the total capacity of the system.
If while using the bicycle the battery percen-
tage level is not visible in Toolbox, the infor-
mation will be visible again when the battery
level drops by 1%. At that moment the EP8
system will send the remaining battery level
information via Bluetooth to the Garmin de-
vice and the battery level will be shown in
the unit.
ASSIST LEVEL: Assist power delivered by the motor de-
pending on the assist mode selected. It is shown as a per-
centage of the total power available from the motor.
· Assist level visualization options (on Garmin watches):
Orbea RS Toolbox allows the assist level to be shown in
two different ways. Read the Data Fields Customiza-
tion section of this manual to learn how to select the
KPHQTOCVKQPUJQYPKPGCEJƂGNF
· You can choose the assist level to be shown on the
external colour band around the screen. Thus, the cu-
rrent assist level will be displayed by a black line that
will travel through the motor power range (1%-100%).
$[FGHCWNVVJGFKHHGTGPVCUUKUVNGXGNUYKNNTGCEJURGEKƂE
areas of the engine power range. For example, only
the more powerful assist modes will allow the motor
to deliver power around its 100% potential.
· It is also possible to select the assist level to be shown
QP QPG QH VJG FCVC ƂGNFU QH 1TDGC 45 6QQNDQZ 6JG
#UUKUVFCVCƂGNFYKNNFKURNC[VJGEWTTGPVRQYGTFGNKXG-
red as a percentage of the total power available from
the motor.
RANGE: Available range (in km or miles) in the selected
assist mode with the remaining battery charge. The range
shown may change depending on the power delivered by
the rider, as well as the previous use of the bicycle.
SPEED: The bicycle´s current speed.
CADENCE: The rider´s pedalling cadence.
Walk Assist
Walk Assist
Active
Eco
Trail
Boost
21%-40%
41%-60%
61%-80%
1%-20%
21%-40%
41%-60%
61%-80%
81%-100%
Current assist power delivery
