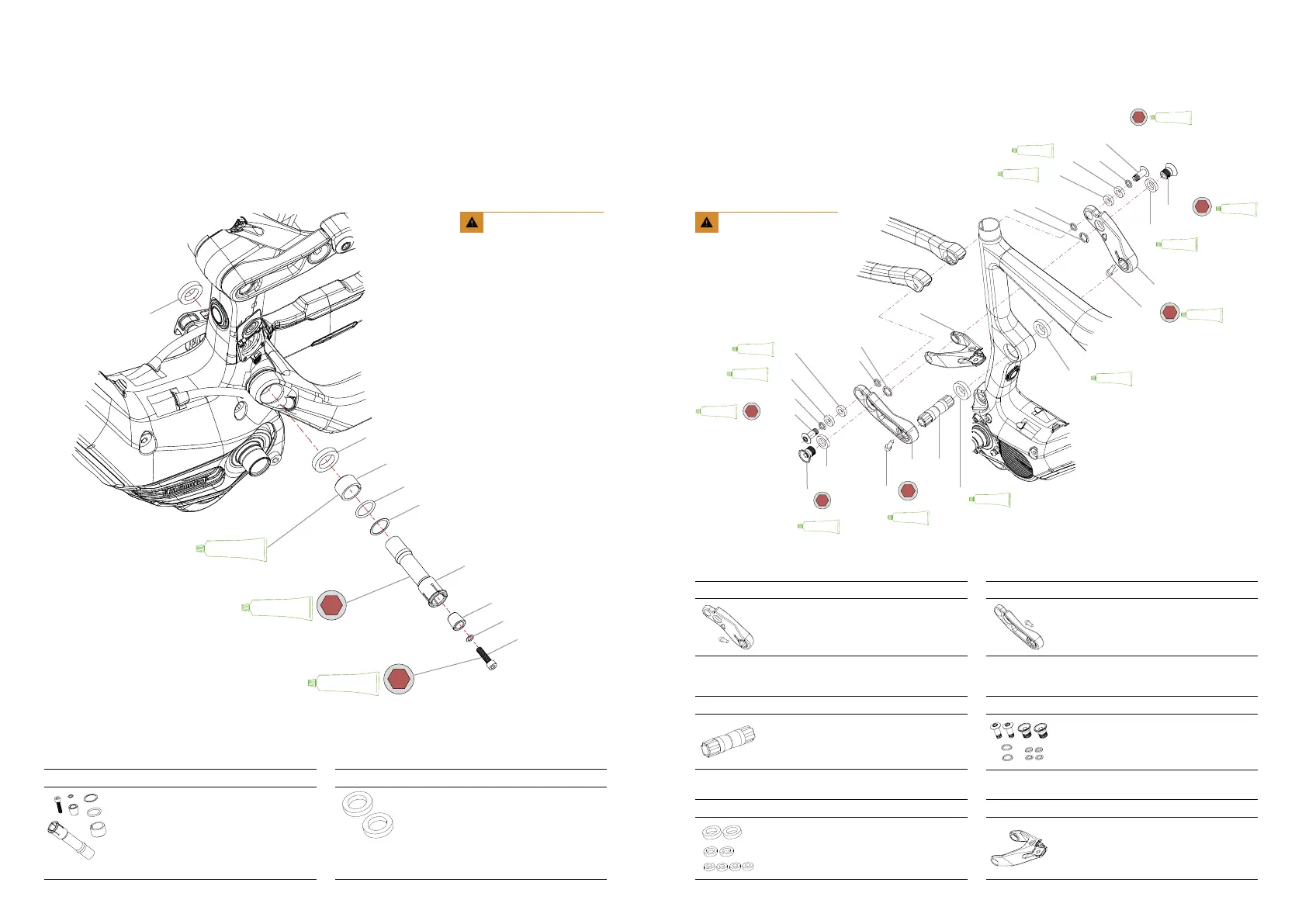

Orbea RISE M-LTD 2021 - Swingarm Main Pivot; Linkage Exploded View and Spares

TECHNICAL MANUAL BLUE PAPER RISE · 202148 | ORBEA ORBEA | 49
EN
5
10 N.m
5
10 N.m
8
15 N.m
8
15 N.m
5
8 N.m
5
8 N.m
9.1
9.2
13.2
12.3
12.1
12.2
13.1
13.1
12.2
12.4
13.3
14
12.4
12.2
13.1
13.1
12.2
12.1
13.3
11
10.2
13.2
12.3
GREASE
GREASE
GREASE
GREASE
GREASE
GREASE
GREASE
GREASE
GREASE
GREASE
GREASE
GREASE
GREASE
SWINGARM MAIN PIVOT
07
HARDWARE KIT MAIN PIVOT RISE-OCCAM M
ART Nº: X2140000 QTY.
7.1 EXPANDER BOLT M5x20 1
7.2 EXPANDER ASHER 5x8x0.5 1
7.3 EXPANDER CONE MAIN PIVOT 1
7.4 MAIN PIVOT AXLE 1
7.5 AXLE WASHER 17x20.5x0.5 1
7.6 O-RING 16x2 1
7.7 BUSHING MAIN PIVOT 1
08
MAIN PIVOT BEARING KIT RISE-OCCAM M
ART Nº: X2150000 QTY.
8.1 BEARING 6803 1
8.2 BEARING 6802 1
8
20 N.m
4
5 N.m
GREASE
7.1
7.2
7.3
7.4
7.5
7.6
7.7
8.1
8.2
GREASE
GREASE
8.2
8.1
7.7
7.6
7.5
7.4
7.3
7.2
7.1
Always follow the recommended
torque settings.
LINKAGE
Always follow the recommended
torque settings.
LINKAGE EXPLODED VIEW
AND SPARES
09
LINKAGE LEFT RISE
(Bearings not included)
ART Nº: X2070000 QTY.
9.1 LEFT LINKAGE RISE 1
9.2 BOLT M6x20 1
11
LINKAGE AXLE RISE
ART Nº: X2090000 QTY.
LINKAGE AXLE RISE 1
13
LINKAGE BEARING KIT OCCAM-RISE
ART Nº: X2110000 QTY.
13.1 LINKAGE-SEATSTAY BEARING 6800 4
13.2 LINKAGE-SHOCK EXT. BEARING 6802 2
13.3 LINKAGE-FRAME BEARING 6804 2
10
LINKAGE RIGHT RISE
(Bearings not included)
ART Nº: X2080000 QTY.
10.1 RIGHT LINKAGE RISE 1
10.2 BOLT M6x20 1
12
LINKAGE HARDWARE KIT RISE
(Both sides)
ART Nº: X2100000 QTY.
12.1 LINKAGE-SEATSTAY BOLT 2
12.2 LINKAGE-SEATSTAY WASHER 4
12.3 LINKAGE-SHOCK EXT. BOLT 2
12.4 LINKAGE-SHOCK EXT. WASHER 2
14
SHOCK EXTENDER RISE
ART Nº: X2120000 QTY.
SHOCK EXTENDER RISE 1
12.1
12.2
13.1
13.1
12.2
12.4
14
12.4
12.2
13.1
13.1
12.2
12.1
12.3
13.2
10.2
10.1
11
13.3
13.3
9.2
9.1
13.2
12.3
