TECHNICAL MANUAL BLUE PAPER RISE · 202146 | ORBEA ORBEA | 47
EN

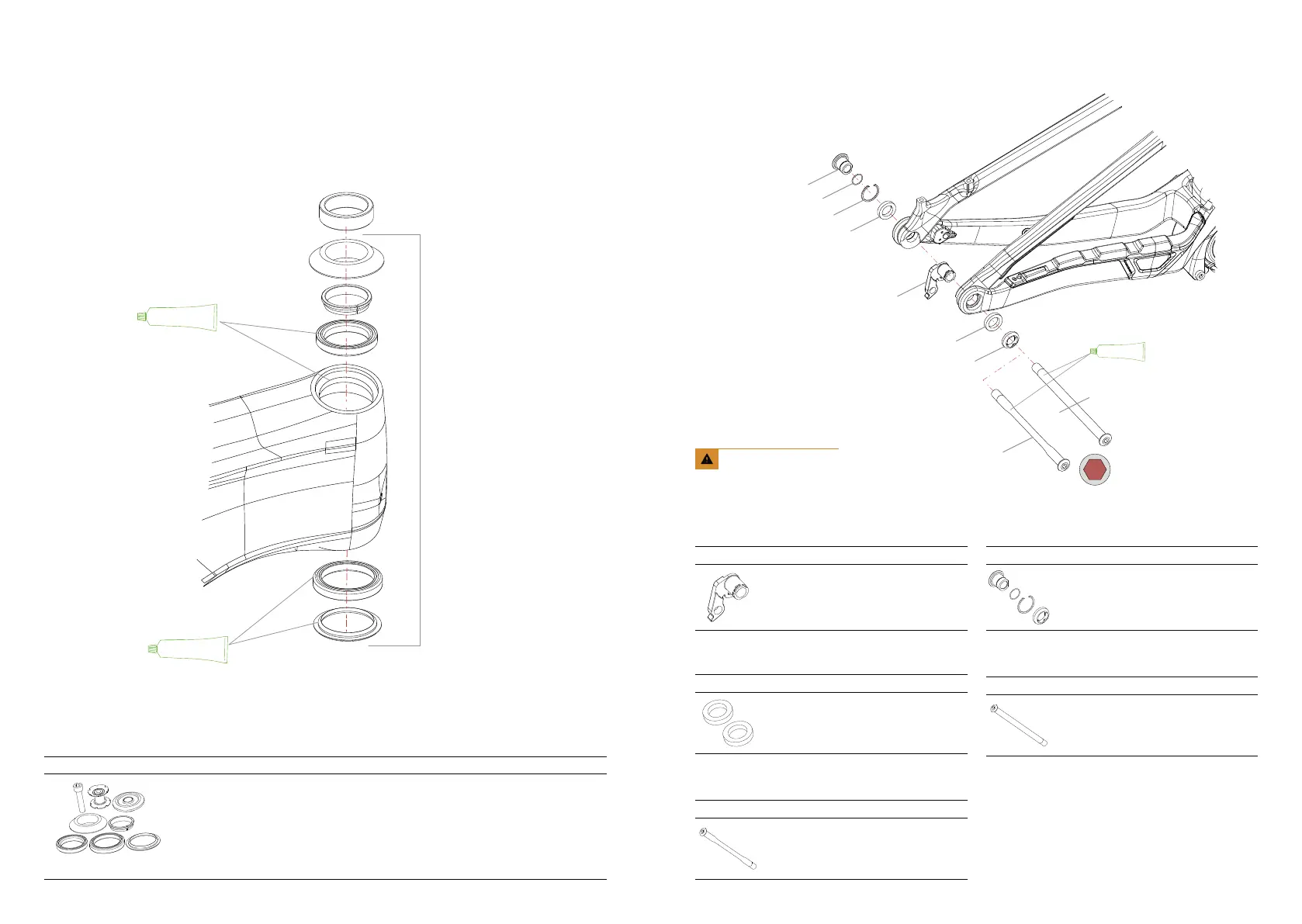

HEADSET SPARE PARTS
AND ASSEMBLY
01
INTEGRATED HEADSET MTB 1 1/8"-1 1/2"
ART Nº: X0230000 QTY.
1.1 STEM TOPCAP 1
1.2 HEADSET PRELOAD BOLT 1
1.3 STARNUT 1 1/8" 1
1.4 HEADSET COVER 1
1.5 PRELOAD RING 1
1.6 TOP BEARING 1
1.7 BOTTOM BEARING 1
1.8 FORK CROWN RACE 1
GREASE
GREASE
1
AXLES AND REAR DERAILLEUR
Always follow the recommended
torque settings.
02
REAR DER. HANGER STD X12 FS 21
ART Nº: X1600000 QTY.
REAR DER. HANGER STD X12 FS 21 1
04
REAR AXLE BEARING KIT FS20
ART Nº: X2040000 QTY.
4.1 BEARING 6803 2
06
REAR THRU-AXLE BOOST 12x148 LITE
(12x187x1.5x15)
ART Nº: X2060000 QTY.
REAR THRU-AXLE BOOST 12x148 LITE
(12x187x1.5x15)
1
03
REAR AXLE HARDWARE KIT FS20
(Hanger not included)
ART Nº: X2030000 QTY.
3.1 LEFT AXLE NUT 1
3.2 O-RING LEFT 13x1 1
3.3 CIRCLIP LEFT SB26mm 1
3.4 HANGER INSERT RIGHT 1
05
REAR THRU-AXLE BOOST 12x148 HOLLOW
(12x187x1.5x15)
ART Nº: X2050000 QTY.
REAR THRU-AXLE BOOST 12x148 HOLLOW
(12x187x1.5x15)
1
6
10 N.m
GREASE
3.1
3.2
3.3
4.1
2
4.1
3.4
6
5
