TECHNICAL MANUAL BLUE PAPER RISE · 202144 | ORBEA ORBEA | 45
EN
ORBEA RS INTERNAL BATTERY
Voltage 36V
Capacity 360 Wh
Weight 2.2 Kg
Cells LITHIUM-ION. 21700
Charging time (2A) 5 HOURS
Assembly INTERNAL. DOWNTUBE
Connection HARNESS CABLE TO MOTOR, CHARGING PORT AND POWER BUTTON
RANGE EXTENDER RS EXTERNAL BATTERY
Voltage 36V
Capacity 252 Wh
Weight 1.4 Kg
Cells LITHIUM-ION. 18650
Charging time (2A) 3.5 HOURS
Assembly DEDICATED MOUNT. DOWNTUBE
Connection RANGE EXTENDER CONNECTION CABLE TO RISE CHARGE PORT
RS 2A CHARGER
Input 100V - 240V
Output 42V
Charging rate 2A
11 ASSEMBLY AND SPARES
HEADSET

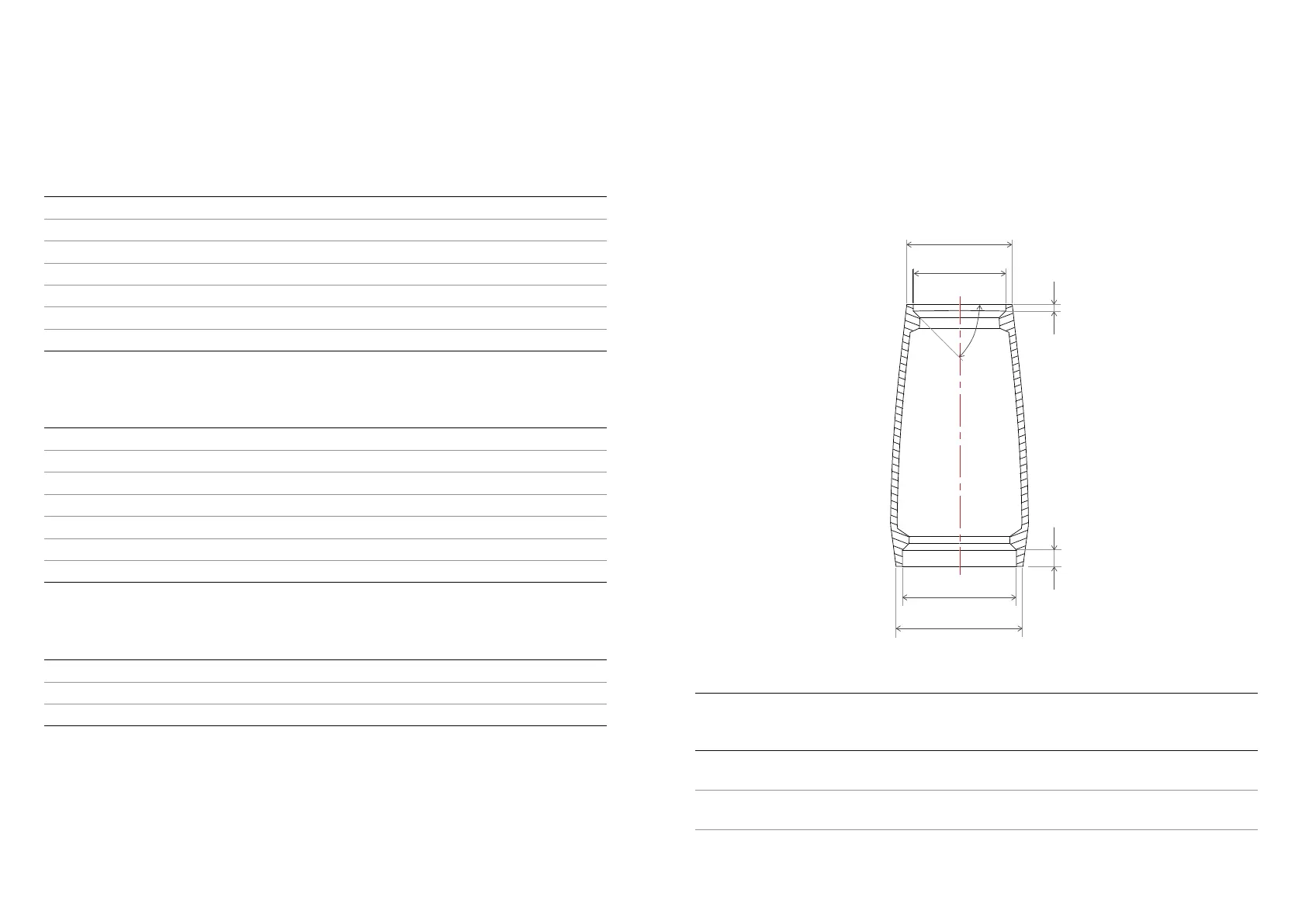

HEADTUBE DIMENSIONS
TYPE ID* OD**
Bearing
angle
Preload ring ring/
fork crown race angle
SHIS
CODE
TOP 1-1/8" Integrated 42mm 48mm 45º 45º IS42/28.6
BOTTOM 1-1/2" Integrated 52.1mm 58mm 45º 45º IS52/40
HEADSET SPECIFICATIONS
Ø48
Ø42
3
45º
Ø52.1
Ø58
7.5
* ID: Internal headtube diameter.
** OD: External headtube diameter.
