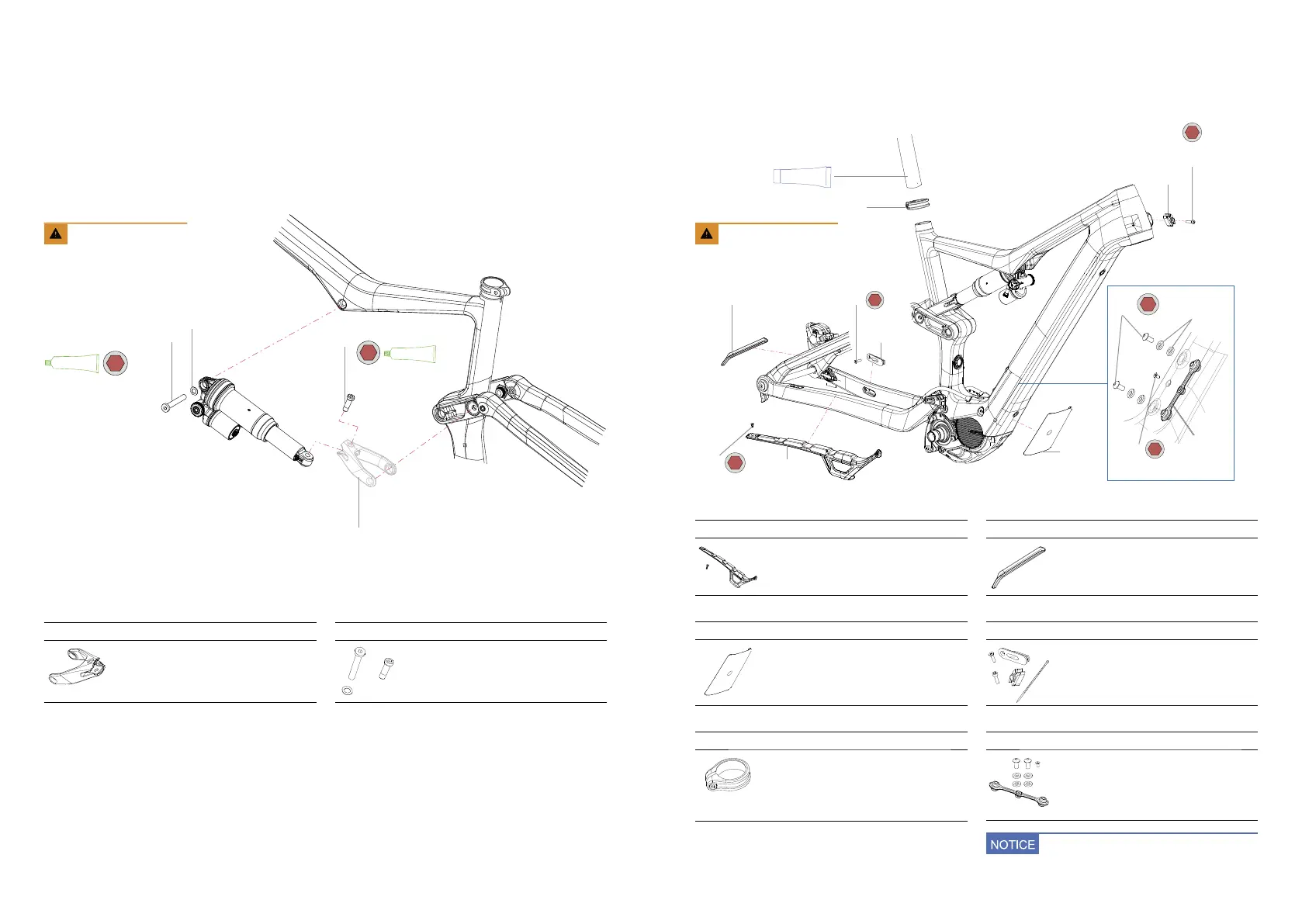

Orbea RISE M-LTD 2021 - Frame Hardware and Protectors; Shock Assembly

TECHNICAL MANUAL BLUE PAPER RISE · 202152 | ORBEA ORBEA | 53
EN
5
6 N.m
5
8 N.m
GREASE
GREASE
16.1
16.2
16.3
14
SHOCK ASSEMBLY
14
SHOCK EXTENDER RISE
ART Nº: X2120000 QTY.
SHOCK EXTENDER RISE 1
16
SHOCK ASSEMBLY KIT RISE
ART Nº: X2130000 QTY.
16.1 FRAME-SHOCK BOLT 1
16.2 FRAME-SHOCK WASHER 1
16.3 SHOCK-SHOCK EXT. BOLT 1
Always follow the recommended
torque settings.
16.2
16.3
14
16.1
FRAME HARDWARE AND PROTECTORS
17
RUBBER PROTECTOR RIGHT CHAINSTAY
ART Nº: X2160000 QTY.
17.1
RUBBER PROTECTOR RIGHT CHAINSTAY
RISE
1
17.2 BOLT M3x12 COUNTERSUNK 1
19
ADHES. PROTECTOR TRANSPARENT DOWNTUBE
ART Nº: X2160000 QTY.
ADHES. PROTECTOR TRANSPARENT
DOWNTUBE
1
21
SEATPOST CLAMP 34.9mm BLK
ART Nº: X2020000 QTY.
SEATPOST CLAMP 34.9mm BLK 1
18
ADHES. RUBBER PROTECTOR RIGHT S/STAY
ART Nº: X2170000 QTY.
ADHES. RUBBER PROTECTOR RIGHT S/STAY 1
20
CABLEGUIDE KIT BRAKE-DERAILL. RISE
ART Nº: X2190000 QTY.
20.1 CABLEGUIDE HEADTUBE 1
20.2 BOLT M3x15 1
20.3 CABLEGUIDE BRAKE C/STAY 1
20.4 BOLT M3x12 COUNTERSUNK 1
20.5 ZIPTIE 2.5x100 1
22
BOTTLE HOLDER PLATE KIT RISE
ART Nº: X2270000 QTY.
22.1 INTERNAL BOTTLE HOLDER PLATE 1
22.2 BOLT M3x8 DIN7991 FRAME 1
22.3 BOTTLE HOLDER BOLT M5x10 2
22.4 WASHER 6.2x10x2 4
Always use the original washers to install a
bottle holder or the Range Extender mount
to Rise.
2
2 N.m
2
2 N.m
2.5
2.5 N.m
FIBER CARBON GRIP
2
2 N.m
3
5 N.m
21
17.1
17.2
18
19
20.1
20.2
20.3
20.4
22.1
22.2
22.3
22.4
18 20.4
20.3
21
19
20.4
17.2
22.3
22.4
22.2
22.1
20.1
20.2
Always follow the recommended
torque settings.
