TECHNICAL MANUAL BLUE PAPER RISE · 202176 | ORBEA ORBEA | 77
EN
BATTERY ERROR CODES
AND TROUBLESHOOTING
· If pressing the battery power button does not turn on
the LED display, the protection circuit is operating. To
release the protection circuit, please charge the battery
by connecting the RS charger charger.
+H VJG .'& UVCTVU ƃCUJKPI CU UJQGP KP VJG VCDNG DGNQY
when pressing the battery main button or while the
battery is charging, follow the recommend actions to
release the protection functions or conduct some neces-
sary check actions accordingly.

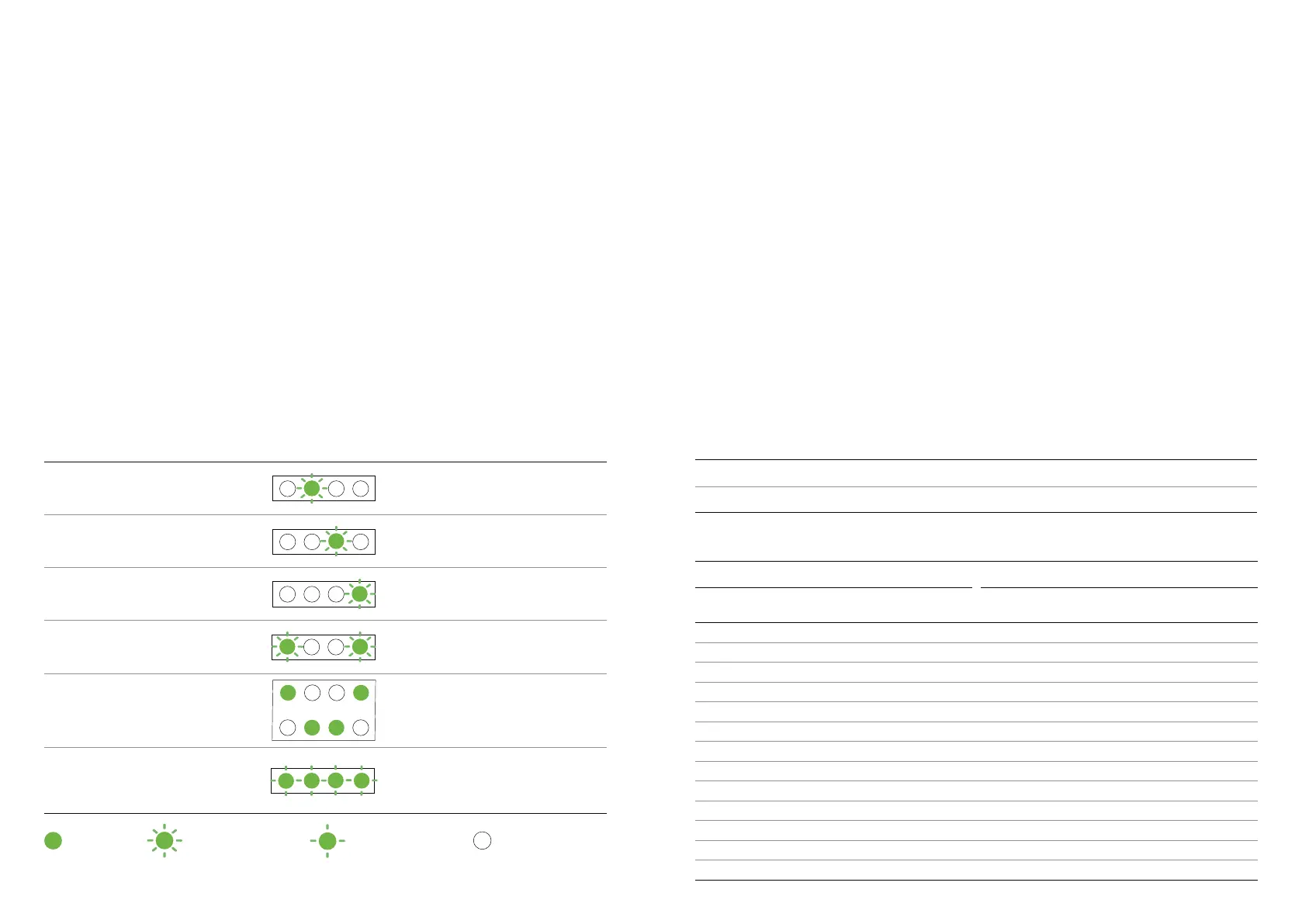

MEANING OF THE ERROR CODES LEDs RECOMMENDED ACTION
Battery run out of capacity and triggered the
lowest voltage protection.
Start to charge the battery.
Battery triggered the high temperature or low
temperature protection.
Place the battery in a 5°C ~ 40°C environment.
Battery triggered the short circuit protection.
Remove any external object that may be causing
the short circuit and check all cables. Wait for
30 minutes.
Battery triggered the permanent failure protection
or further safety protections.
Stop charging the battery inmediately and contact
an authorized dealer.
Battery triggered the over charge current
protection.
2 Hz
Desconnect the charger to interrupt the charging
process. Wait 30 seconds.
After using the battery for a long period of time,
VJG.'&ƃCUJHQTUGEQPFUQPN[YJKNGEJCTIKPI
Contact an authorized dealer to diagnose the state
of the battery.
4GCFVJGEQORNGVGOCPWCNQHVJG(QZHQTMUURGEKƂECVGFQP4KUGHTQOVJGOCPWHCEVWTGTUFQEWOGPVCVKQP
FOX 36 FLOAT GRIP 2 FORK MANUAL
www.ridefox.com/fox17/help.php?m=bike&id=1082
FOX 34 FLOAT GRIP & FIT4 FORK MANUAL
www.ridefox.com/fox17/help.php?m=bike&id=1081
RECOMMENDED SAG SETTING
Fork total
travel
15% SAG
(Firm)
20% SAG
(Plush)
FOX 36 FLOAT 150mm
23mm 30mm
FOX 34 FLOAT 140mm
21mm 28mm
RECOMMENDED AIR PRESSURE FOR SAG SETTING
FOX 36 FLOAT FOX 34 FLOAT
Rider+equipment
weight (Kg)
Rider+equipment
weight (Lb)
Pressure (psi)
Rider+equipment
weight (Kg)
Rider+equipment
weight (Lb)
Pressure (psi)
54-59 120-130 66 54-68 120-150 58-68
59-64 130-140 70 68-82 150-180 72-82
64-68 140-150 74 82-95 180-210 86-96
68-73 150-160 78 95-113 210-250 100-114
73-77 160-170 82
77-82 170-180 86
82-86 180-190 89
86-91 190-200 94
91-95 200-210 99
95-100 210-220 105
100-104 220-230 109
104-109 230-240 113
109-113 240-250 117
13 SUSPENSION
FOX FORKS SETTINGS
RECOMMENDED STARTING AIR PRESSURE SETTINGS
FOR FOX 34 AND 36 FLOAT FORKS
6JG VCDNGU DGNQY IKXG CRRTQZKOCVG XCNWGU 6JG ƂPCN UGVVKPIU OC[ EJCPIG FGRGPFKPI QP TKFKPI UV[NG CPF VGTTCKP
conditions.
LED On .'&ƃCUJGUCV*\ .'&ƃCUJGUCV*\ LED Off
