TECHNICAL MANUAL BLUE PAPER RISE · 202154 | ORBEA ORBEA | 55
EN

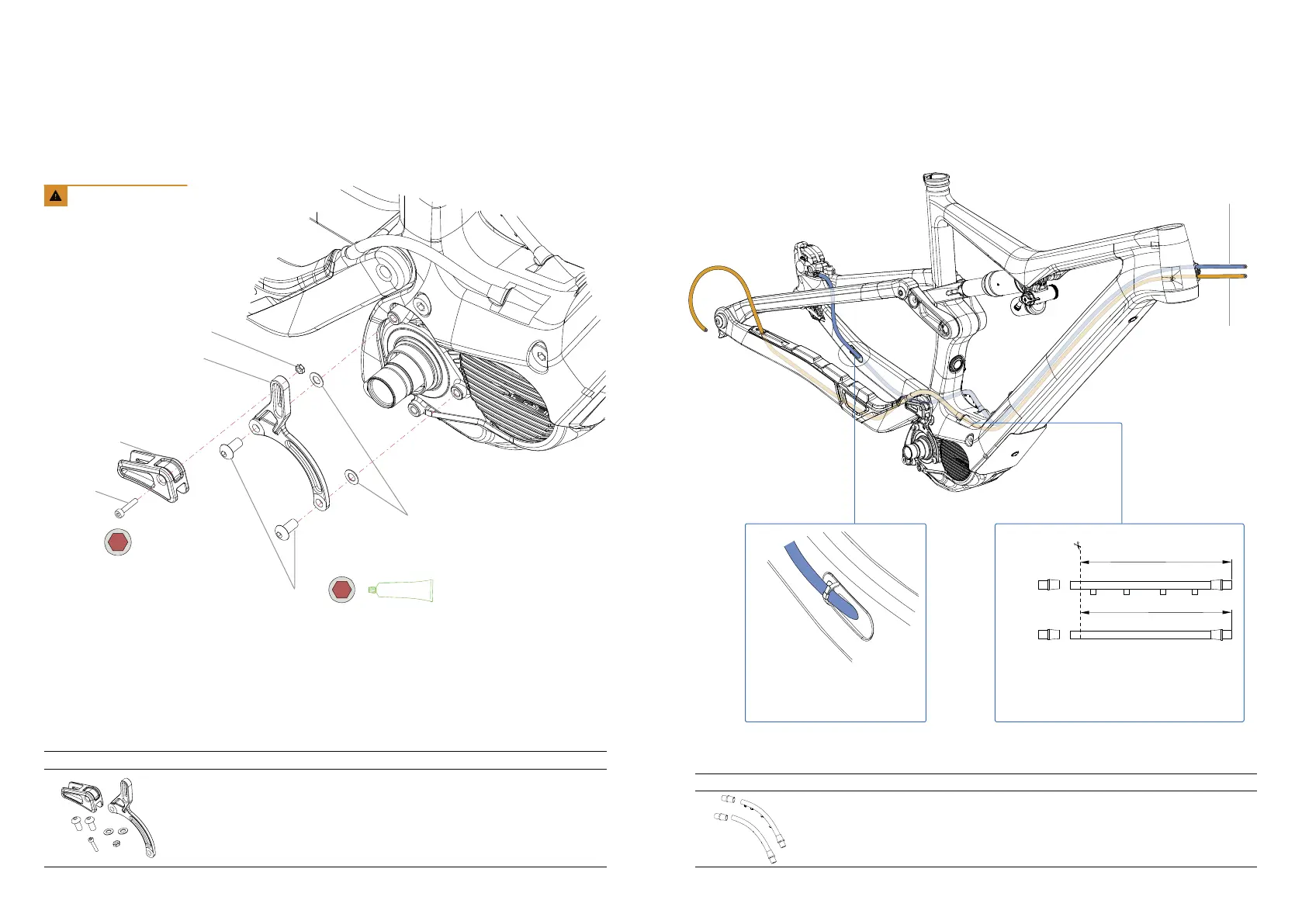

CHAINGUIDE
23
CHAINGUIDE KIT RISE
ART Nº: X2210000 QTY.
23.1 CHAINGUIDE BRACKET RISE 1
23.2 CHAINGUIDE 1
23.3 EP8 MOTOR FIXING BOLT 2
23.4 BOLT M3X15 1
23.5 NUT M3 1
23.6 WASHER M6 2
GREASE
23.1
23.2
23.3
23.4
23.5
23.6
4
4 N.m
2.5
2 N.m
23.5
23.1
23.2
23.4
23.3
23.6
Always follow the recommended
torque settings.
REAR DERAILLEUR
AND BRAKE CABLE ROUTING
L
R
Tie the hose around the cableguide
with the ziptie included to avoid
rubbing against the spokes
%WVVWDGUVQVJGURGEKƂGFNGPIVJ
(all sizes)
L = 135mm
R = 145mm
Rear brake hose
Rear derailleur
24
CABLING TUBES KIT FT-S/ARM RISE
ART Nº: X2020000 QTY.
FS CABLE TUBE (ONE SIZE) 1
FS CABLE TUBE. CLIP SENSOR (ONE SIZE) 1
FERRULE TUBE FS 2
