RECOMMENDED REBOUND SETTINGS
FOX 36 FLOAT FOX 34 FLOAT
Rider+equipment
weight (Kg)
Rider+equipment
weight (Lb)
36 GRIP
(clicks)
36 GRIP 2
Air pressure
FIT 4
(clicks)
GRIP
(clicks)
LSR (clicks) HSR (clicks)
54-59 120-130 13 9 8 65psi/ 4.5 bar 8 13
59-64 130-140 12 8 7 70psi/ 4.8 bar 8 12
64-68 140-150 11 7 6 74psi/ 5.1 bar 7 11
68-73 150-160 10 7 6 80psi/ 5.5 bar 7 10
73-77 160-170 9 6 5 85psi/ 5.9 bar 6 9
77-82 170-180 8 6 5 90psi/ 6.2 bar 6 8
82-86 180-190 7 5 4 96psi/ 6.6 bar 5 7
86-91 190-200 6 4 3 101psi/ 7.0 bar 5 6
91-95 200-210 5 4 3 106psi/ 7.3 bar 4 5
95-100 210-220 4 3 2 111psi/ 7.6 bar 4 4
100-104 220-230 3 2 1 117psi/ 8.0 bar 3 3
104-109 230-240 2 2 1 122psi/ 8.4 bar 2 2
109-113 240-250 1 1 0 126psi/ 8.7 bar 1 1
SUGGESTED REBOUND SETTINGS
FOR FOX 34 AND 36 FLOAT FORKS
The rebound adjustment depends on the shock air
pressure. The more air pressure, the more closed the
rebound circuit will have to be.
7UG VJG ƂPCN CKT RTGUUWTG QP [QWT UJQEM VQ ƂPF VJG
correct rebound setting. Turn the rebound idal clock-wise
to the fully closed position.
Then count "clicks" as per the table below.
Air pressure (psi)
Recommended rebound
setting (clicks)
<100 Open
100-120 11
120-140 10
140-160 9
160-180 8
180-200 7
200-220 6
220-240 5
240-260 4
260-280 3
280-300 Close
104-109 230-240
109-113 240-250
FOX SHOCKS SETTINGS
4GCFVJGEQORNGVGOCPWCNQHVJG(QZUJQEMUURGEKƂECVGFQP4KUGHTQOVJGOCPWHCEVWTGTUFQEWOGPVCVKQP
FOX DPS AND DPX2 EVOL MANUAL
www.ridefox.com/fox17/help.php?m=bike&id=1079
SUGGESTED AIR PRESSURE SETTINGS
FOR THE FOX DPX EVOL AND DPX2
EVOL SHOCKS
6JG VCDNGU DGNQY IKXG CRRTQZKOCVG XCNWGU 6JG ƂPCN
settings may change depending on riding style and
terrain conditions.
Adjust the shock´s air pressure until the desired SAG is
CEJKGXGF#5#)YKNNIKXG[QWCƂTOGTHGGNKPIYKVJ
more support. A 30% SAG will provide a plusher riding
experience.
Once the desired SAG is achieved, adjust the Rebound
depending on the air pressure of your shock.
7UGVJGƂPCNCKTRTGUUWTGQP[QWTUJQEMVQƂPFVJGTG-
commended Rebound setting on the table below. Turn
the Reboud dial clockwise until the Closed position.
Then count "click" as per the table below counter-clockwise.

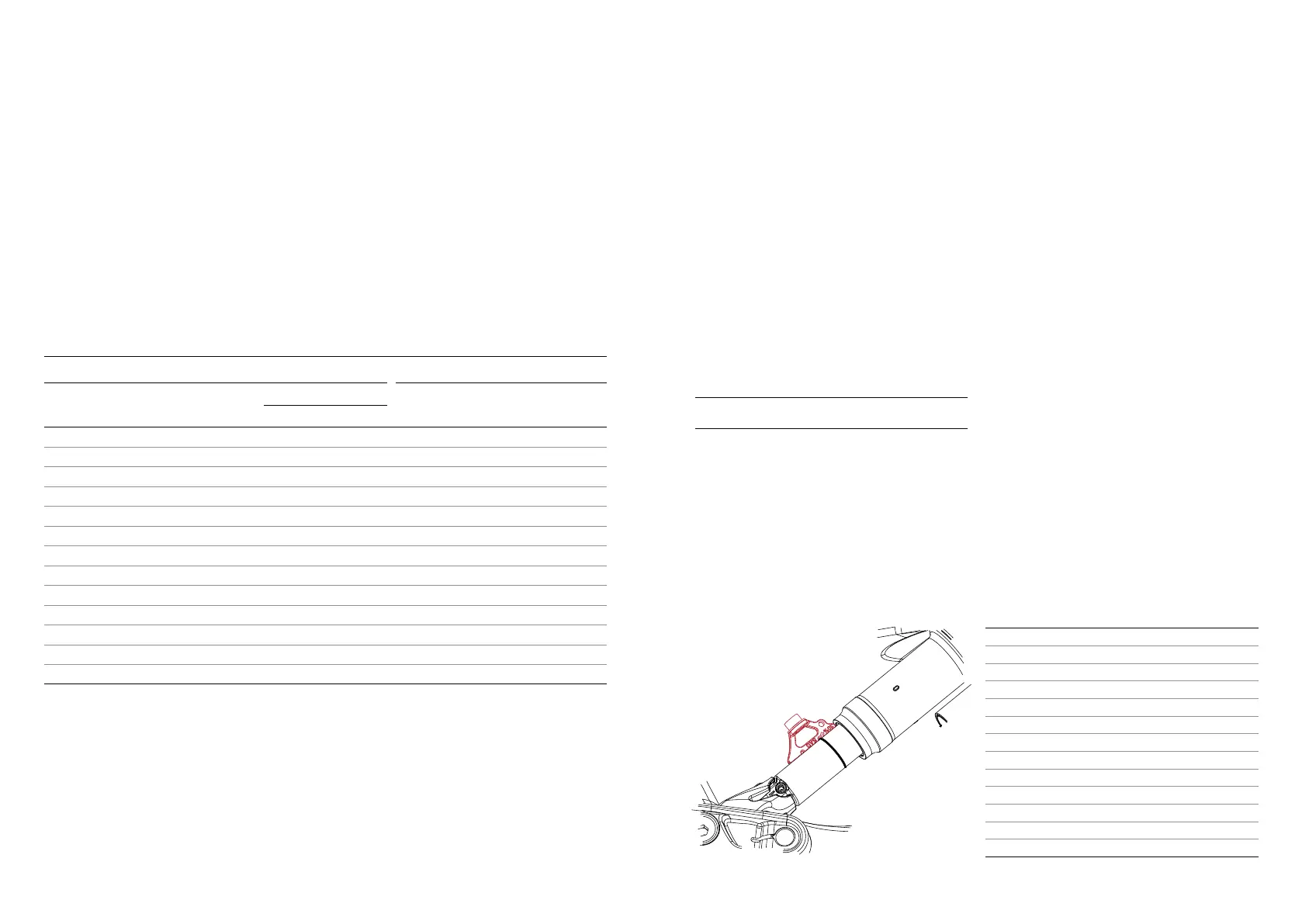

You can use the integrated SAG measurement on the
linkage preload tool to measure a 30% SAG.
RECOMMENDED SAG SETTING
30%
REBOUND ADJUSTMENT
Based on air pressure after target SAG is achieved.
