TECHNICAL MANUAL BLUE PAPER RISE · 202138 | ORBEA ORBEA | 39
EN
MAXIMUM AND MINIMUM SADDLE
HEIGHT WITH DROPPER SEATPOSTS
Find below a table with the maximum and minimum possi-
ble height with the seatpost in its extender position.
The maximum height refers to the seatpost installed in its
OKPKOWOKPUGTVKQPYJKEJKUFGƂPGFD[VJGUGCVRQUV
The minimum height refers to the seatpost installed in its
OCZKOWOKPUGTVKQPYJKEJKUFGƂPGFD[VJGHTCOG
Only the measurements with the seatpost and saddle
options offered by Orbea for a given frame are listed. To
know these measurements for any other seatpost brand
and model, consult the seatpost dimensions with the ma-
nufacturer and check the maximum insertion for each size
frame on this manual.
FRAME/SIZE
DROPPER
SEATPOST
SADDLE
HEIGHT
EXTENDED
RISE (S) RISE (M) RISE (L) RISE (XL)
OC2 31.6
125mm
Minimum 627mm* 650mm* 691mm* 738mm*
Maximum 741mm* 778mm* 818mm* 866mm*
OC2 31.6
150mm
Minimum 675mm* 675mm* 713mm* 763mm*
Maximum 790mm* 827mm* 866mm* 918mm*
OC2 31.6
170mm
Minimum 716mm* 717mm* 734mm* 785mm*
Maximum 831mm* 866mm* 908mm* 957mm*
FOX TRANSFER 31.6
125mm
Minimum 598mm* 630mm* 670mm* 718mm*
Maximum 692mm* 730mm* 769mm* 820mm*
FOX TRANSFER 31.6
150mm
Minimum 652mm* 654mm* 695mm* 744mm*
Maximum 746mm* 782mm* 824mm* 874mm*
FOX TRANSFER 31.6
175mm
Minimum 709mm* 708mm* 720mm* 768mm*
Maximum 804mm* 840mm* 881mm* 930mm*

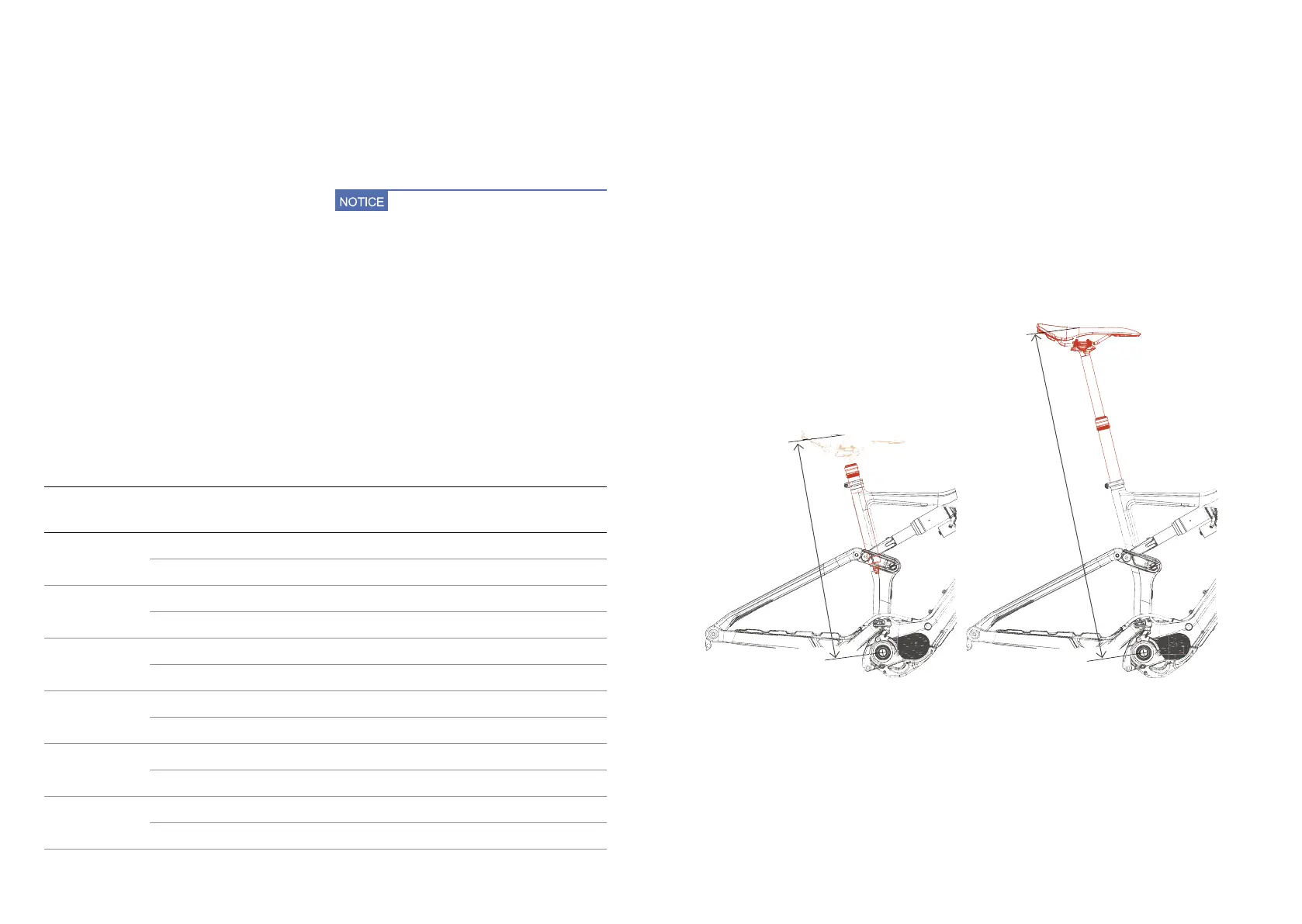

The measurements given show the distance
between the center of the bottom bracket
shell to the middle of the saddle´s top (saddle
OQFGNUURGEKƂECVGFHTQO1TDGC
Different saddle models in the market may
vary these heights by +/-5mm depending on
the saddle model height. If your saddle hei-
ght differs from the values on the table by
less than 5mm, it may be possible to adjust
the height by means of an aftermarket saddle
of a different height.
If your saddle height differs from the values
on the table by more than 5mm, choose a
longer or shorter travel seatpost.
* The measurements may vary +/-5mm depending on the height of the saddle model.
L (MAX)
L (MIN)
