TECHNICAL MANUAL BLUE PAPER RISE · 202136 | ORBEA ORBEA | 37
EN

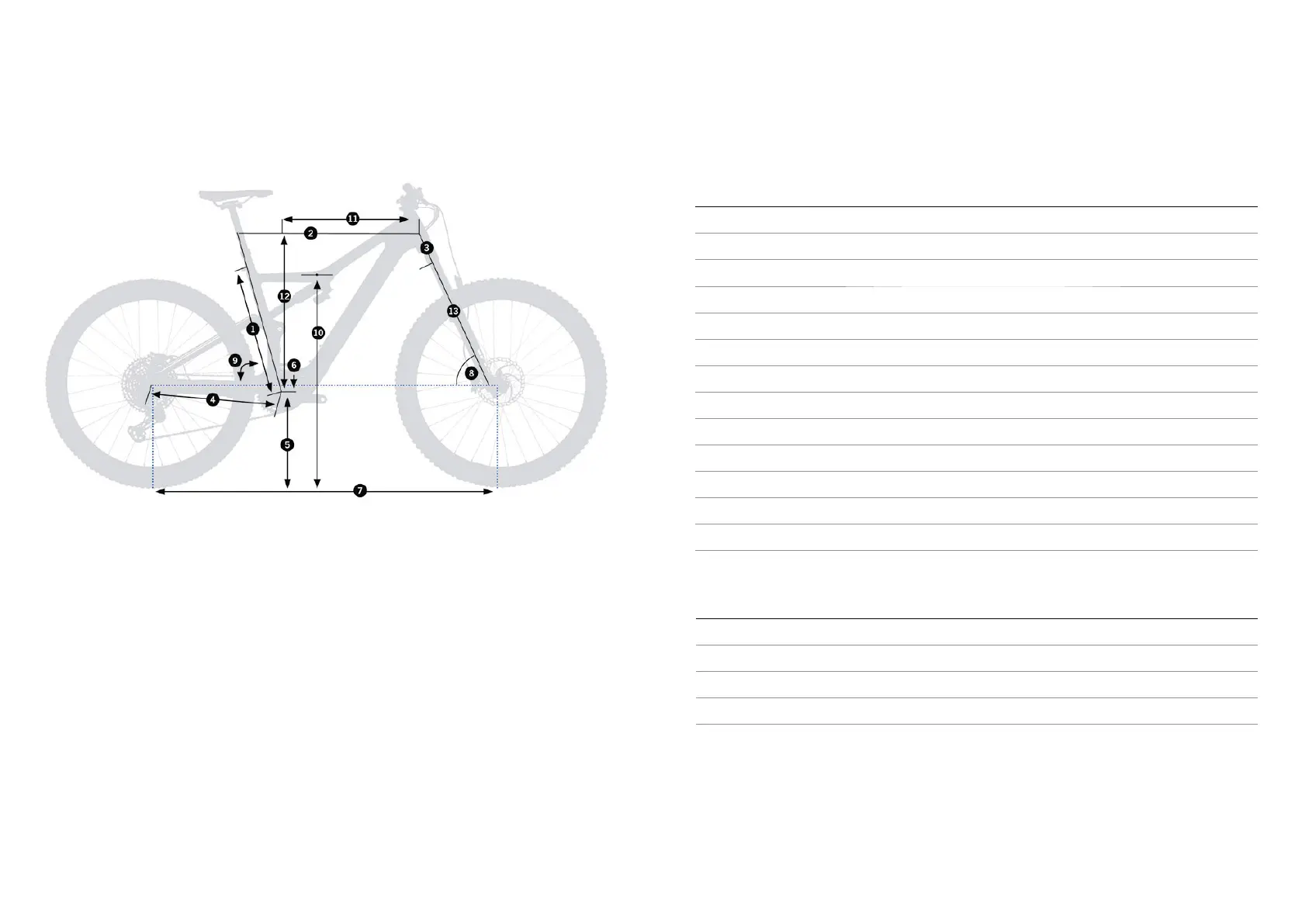

09 GEOMETRY AND SIZING
RISE
HEIGHT (CM) HEIGHT (IN) SIZE*
150-165 59.1”-65.0 S
160-175 63.0”-68.9 M
170-185 66.9”-72.8” L
180-198 70.9”-78.0” XL
* These sizing measurements are an approximate guide. The most effective method to choose the right size for you is to try the
bicycle at one of our authorized dealers.
** With 140/150mm fork.
SIZES S M L XL
1 - Seat Tube (C-T)
381 419 457 508
2 - Top Tube (EFF)
565 592 619 649
3 - Head Tube
95 105 120 140
4 - Chainstay
445 445 445 445
5 - BB Height
336 336 336 336
6 - BB Drop**
35/32 35/32 35/32 35/32
7 - Wheelbase
1.180 1.205 1.229 1.255
8 - Head Angle**
66º/65.5º 66º/65.5º 66º/65.5º 66º/65.5º
9 - Seat Angle**
77º/76.5º 77º/76.5º 77º/76.5º 77º/76.5º
10 - Standover
710 736 766 776
11 - Reach
425 450 474 500
12 - Stack
604 613 627 646
13 - Fork Length
547 547 547 547
