AIR VOLUMEN REDUCERS
ON FOX SHOCKS
The Fox DPX2 shock allows you to modify the air chamber
volume to achieve a different progressivity depending on
your riding style.
This shock comes from Orbea with a 0.2 volume spacer
installed, but a 0.4 is also included if you desire to swap it.
NO REDUCER MORE LINEAR BEHAVIOR LIGHT RIDER
LESS AGRESSIVE RIDING STYLE
WITH 0.2 REDUCER MORE PROGRESSIVITY MID-WEIGHT RIDER
MEDIUM RIDING STYLE
WITH 0.4 REDUCER MORE PROGRESSIVITY HEAVIER RIDER
AGRESSIVE RIDING STYLE

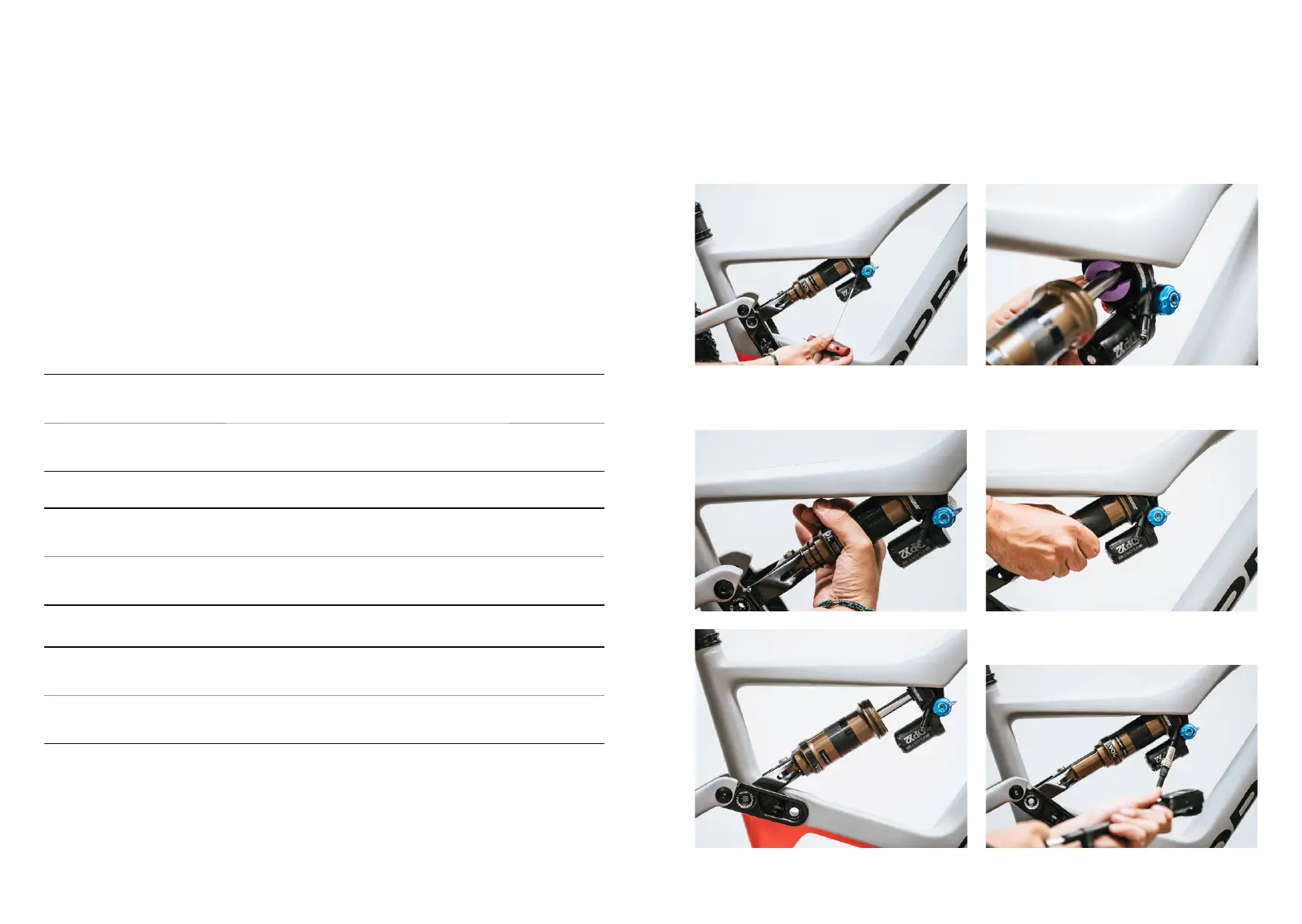

1. To install or remove the air chamber volume reducers,
FGKPƃCVGEQORNGVGN[VJGUJQEMUCKTEJCODGT
2. Unscrew the air chamber sleeve from the shock´s head
and slide the sleeve downwards.
3. Remove the 0.2 volume reducer from the shock´s shaft
CPFKPUVCNNVJGTGFWEGTYKVJVJGƃCVHCEGHCEKPIWR
or leave the shock without any reducers. Do not use
metal tools to remove the reducer. Any damage to the
shock´s shaft will cause air leakages.
4. Slide air chamber sleeve towards the shock´s head and
screw the sleeve into the head.
5. 9KVJCUJQEMRWORKPƃCVGVJGCKTEJCODGTVQVJGFGUK-
red pressure.
