Preparation
−5−

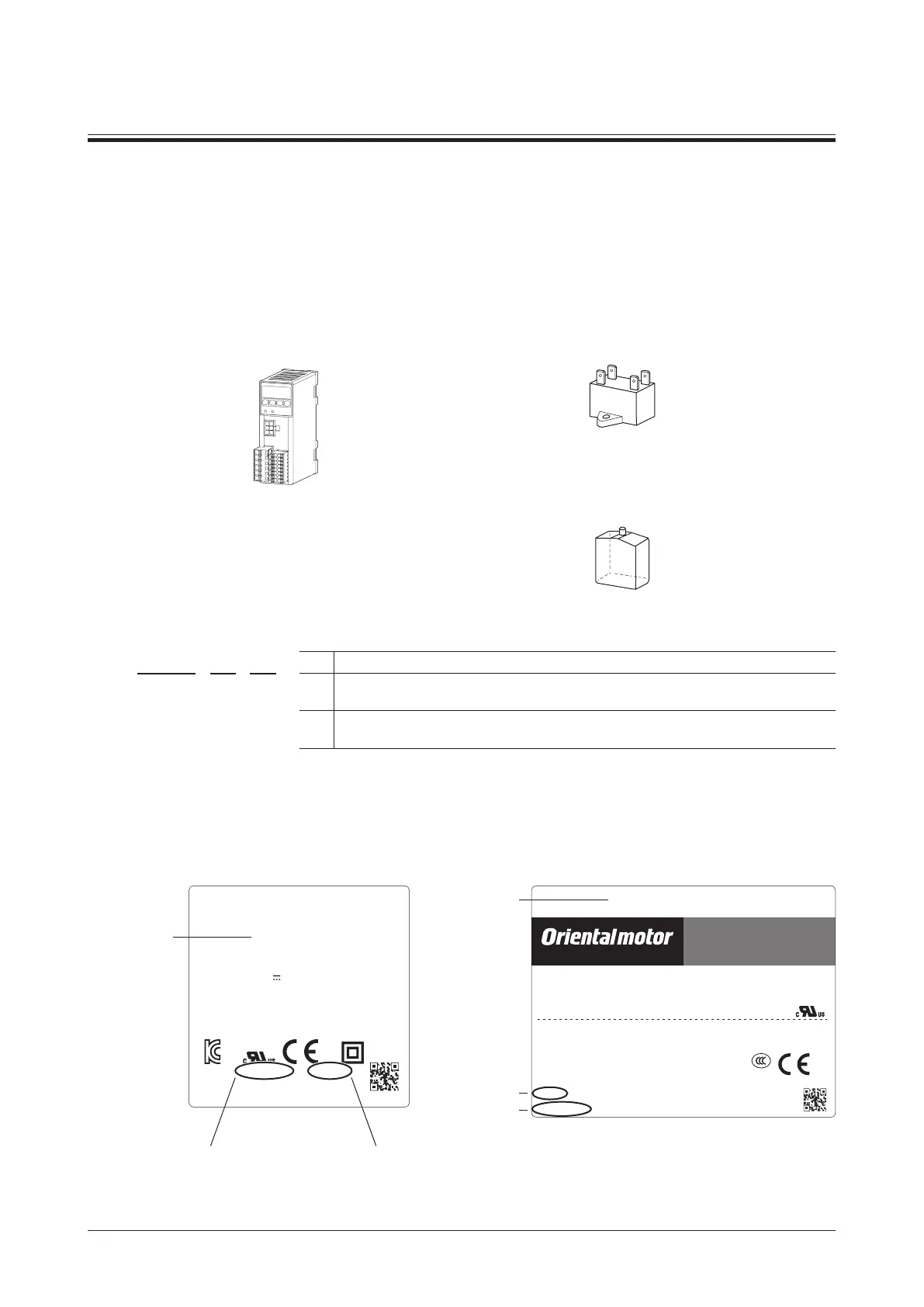

3 Preparation
This section explains the items you should check, as well as the name and function of each part.
3.1 Checking the product
Verify that the items listed below are included.
Report any missing or damaged items to the branch or sales oce from which you purchased the product.
The model name purchased means the set of the speed controller and capacitor. Verify the model name shown on the
package label.
Refer to "3.4 Products possible to combine" on p.6 for combinations of the motor and capacitor.

Speed controller..................................1 unit

Capacitor..............................................1 piece

Operating manual (this document).....1 copy

Capacitor cap...................................... 1 piece
3.2 How to identify the product model
DSCD 25 JA
① ② ③
①
Speed controller type
DSCD
:
DSC
Series speed controller
②
Output power
6
:
6 W
15
:
15 W
25
: 25 W
40
: 40 W
60
: 60 W
90
:
90 W
③
Power supply voltage
JA
: Single-phase 100 VAC
JC
:
Single-phase 200 VAC
UA
:
Single-phase 110/115 VAC
EC
:
Single-phase 220/230 VAC
3.3 Information about nameplate
The gure shows an example.
The position describing the information may vary depending on the product.

Speed controller

Motor
Model
SPEED CONTROLLER
MODEL
DSC-U
INPUT 100-115V~ 50/60Hz 2.6A
200-230V~ 50/60Hz 1.3A
OUTPUT
(Locked Rotor Current 4.7A)
Serial number Manufacturing date
MSIP-REM-
OMC-XXX
SY5 123456
2017/10
ORIENTAL MOTOR CO.,LTD.
TOKYO 110-8536 JAPAN
MADE IN XXXXX
24V
CLASS 2
0.15A
100-115V~ 50/60Hz 2.6A
(Locked Rotor Current 2.2A)
200-230V~ 50/60Hz 1.3A
Model
Serial number
Manufacturing
date
SCM425GV-JA
MODEL
SPEED CONTROL
MOTOR
25
V
Hz A
µF(250V)
r/min Amb.
100 50 0.49 8.0 1200 50C
25 100 60 0.50 8.0 1450 50C
Cont.(S1) TP Ins.Class B(S1)
TE
2017/10
UX9 1234567
ORIENTAL MOTOR CO.,LTD.
TOKYO 110-8536 JAPAN
MADE IN XXXXX
IP20
S
фսդ͹ؠ ଍ ૴ڑ࠵ Ԉ ߑ
Ӳଭ֌դ͹Бސ௛ଇ ߼ ڔѫ
Ӳଭ֪͹
ޙߎ
ଋࢽґܔ͹ࢽґ ܔ 
W
