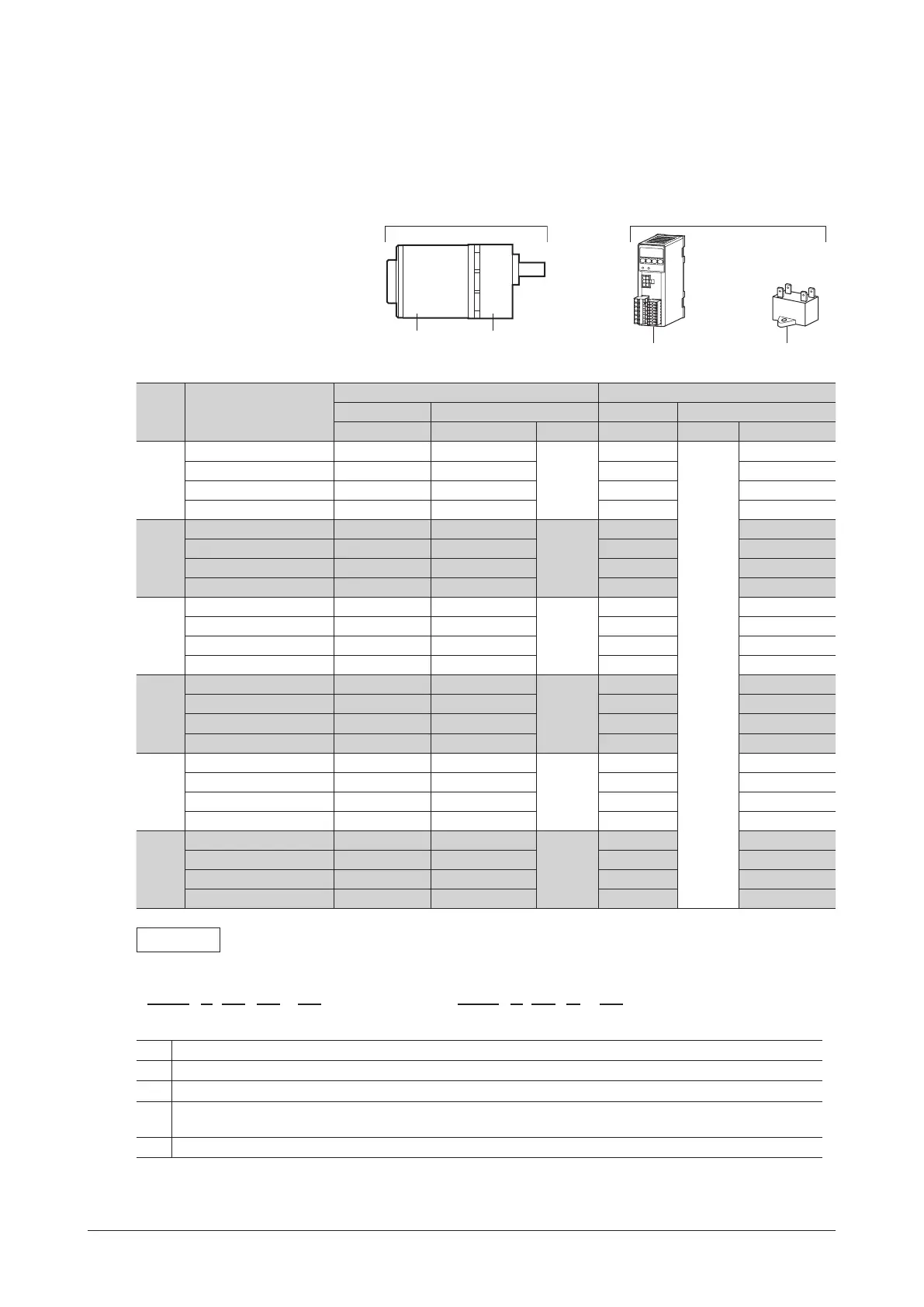

3.4 Products possible to combine
Be sure to match the output power and power supply voltage of the motor with those of the speed
controller. Also use a capacitor in the specied combination.
The box (
o
) in the model name indicates the number representing the gear ratio.
In the case of the round shaft type, enter "A" instead of "GV," "GVH," or "GVR" that indicates the motor shaft type of
2
.
󱯎
󱯐
Motor
󱯒
Gearhead
󱯔
󱯖
Speed controller
󱯘
Capacitor
Output
power
Power supply voltage
Speed control motor Speed controller
Model Component products model Model Component products model
1 2 3 4 5 6
6 W
Single-phase 100 VAC
SCM26JA-
o
SCM26GV-JA
2GV
o
B
DSCD6JA
DSC-U
CH35FAUL2
Single-phase 200 VAC
SCM26JC-
o
SCM26GV-JC DSCD6JC CH08BFAUL
Single-phase 110/115 VAC
SCM26UA-
o
SCM26GV-UA DSCD6UA CH25FAUL2
Single-phase 220/230 VAC
SCM26EC-
o
SCM26GV-EC DSCD6EC CH06BFAUL
15 W
Single-phase 100 VAC
SCM315JA-
o
SCM315GV-JA
3GV
o
B
DSCD15JA CH55FAUL2
Single-phase 200 VAC
SCM315JC-
o
SCM315GV-JC DSCD15JC CH15BFAUL
Single-phase 110/115 VAC
SCM315UA-
o
SCM315GV-UA DSCD15UA CH45FAUL2
Single-phase 220/230 VAC
SCM315EC-
o
SCM315GV-EC DSCD15EC CH10BFAUL
25 W
Single-phase 100 VAC
SCM425JA-
o
SCM425GV-JA
4GV
o
B
DSCD25JA CH80CFAUL2
Single-phase 200 VAC
SCM425JC-
o
SCM425GV-JC DSCD25JC CH20BFAUL
Single-phase 110/115 VAC
SCM425UA-
o
SCM425GV-UA DSCD25UA CH65CFAUL2
Single-phase 220/230 VAC
SCM425EC-
o
SCM425GV-EC DSCD25EC CH15BFAUL
40 W
Single-phase 100 VAC
SCM540JA-
o
SCM540GV-JA
5GV
o
B
DSCD40JA CH110CFAUL2
Single-phase 200 VAC
SCM540JC-
o
SCM540GV-JC DSCD40JC CH30BFAUL
Single-phase 110/115 VAC
SCM540UA-
o
SCM540GV-UA DSCD40UA CH90CFAUL2
Single-phase 220/230 VAC
SCM540EC-
o
SCM540GV-EC DSCD40EC CH23BFAUL
60 W
Single-phase 100 VAC
SCM560JA-
o
SCM560GVH-JA
5GVH
o
B
DSCD60JA CH180CFAUL2
Single-phase 200 VAC
SCM560JC-
o
SCM560GVH-JC DSCD60JC CH40BFAUL
Single-phase 110/115 VAC
SCM560UA-
o
SCM560GVH-UA DSCD60UA CH120CFAUL2
Single-phase 220/230 VAC
SCM560EC-
o
SCM560GVH-EC DSCD60EC CH30BFAUL
90 W
Single-phase 100 VAC
SCM590JA-
o
SCM590GVR-JA
5GVR
o
B
DSCD90JA CH280CFAUL2
Single-phase 200 VAC
SCM590JC-
o
SCM590GVR-JC DSCD90JC CH70BFAUL
Single-phase 110/115 VAC
SCM590UA-
o
SCM590GVR-UA DSCD90UA CH200CFAUL2
Single-phase 220/230 VAC
SCM590EC-
o
SCM590GVR-EC DSCD90EC CH60BFAUL
Reference
SCM 4 25 JA - 15
・
Combination type-parallel shaft gearhead
SCM 4 25 A - JA
・
Round shaft type
① ② ③ ④ ⑤ ① ② ③ ⑤ ④
①
Motor type
SCM
: Speed control motor
②
Frame size
2
:
60 mm (2.36 in.)
3
:
70 mm (2.76 in.)
4
: 80 mm (3.15 in.)
5
: 90 mm (3.54 in.)
③
Output power
6
:
6 W
15
:
15 W
25
: 25 W
40
: 40 W
60
: 60 W
90
:
90 W
④
Power supply voltage
JA
: Single-phase 100 VAC
JC
:
Single-phase 200 VAC
UA
:
Single-phase 110/115 VAC
EC
:
Single-phase 220/230 VAC
⑤
Gear ratio  Motor shaft type Number: Combination type gear ratio
A
: Round shaft type
