S Insta-Cut Screen
This is the S Insta-Cut screen. This screen allows adjustments to the timing and speed set-
ting associated with the Insta-Cut on the HPS or LPS machines, if so equipped.

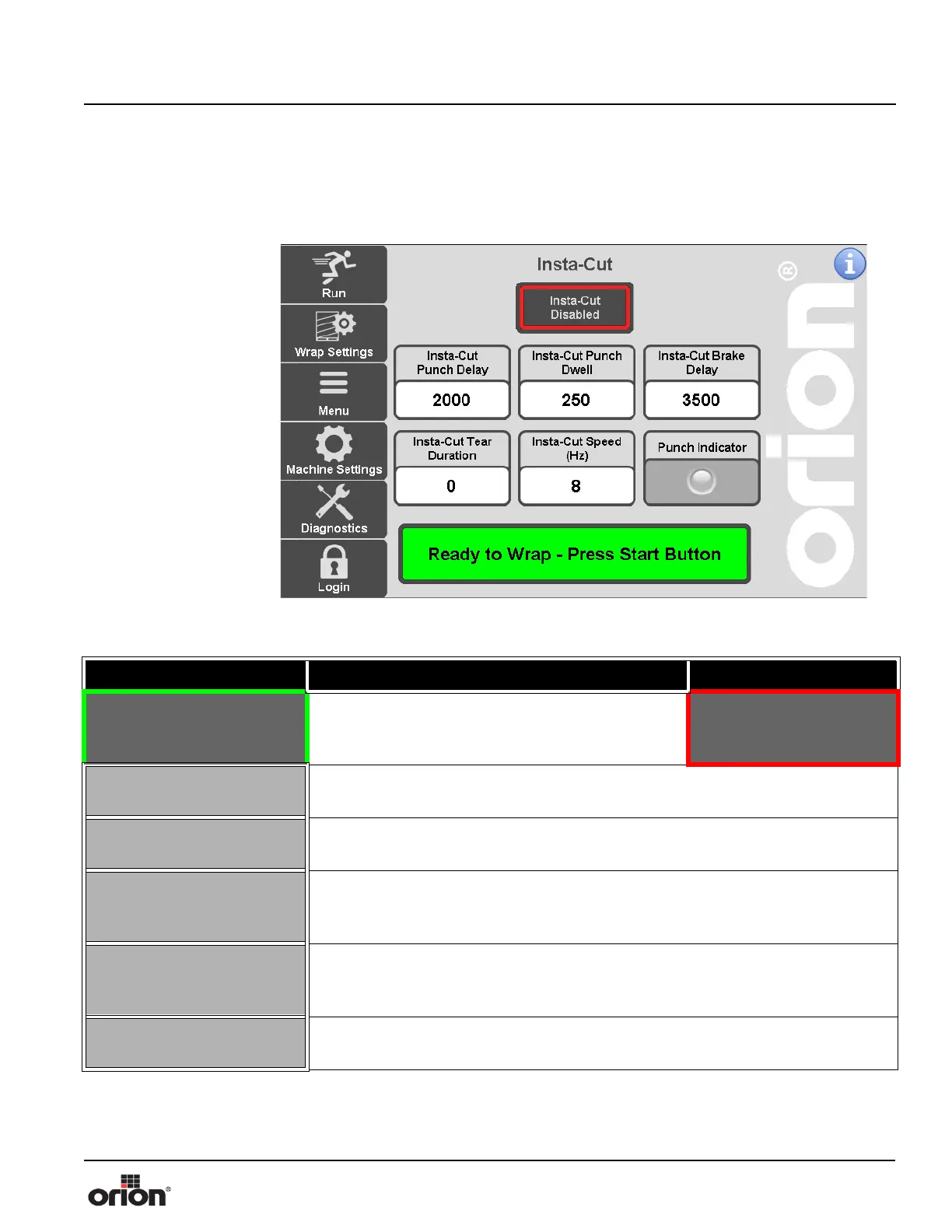

Figure 3 - 26
The S Insta-Cut
Screen
Table 3-25. The Insta-Cut “S” Screen Button Descriptions
STATE 1 DESCRIPTION STATE 2
INSTA- CUT ENABLED
Press this button to toggle between Insta-Cut On or
Insta-Cut Off. This allows the operator to disable the
Insta-Cut function.
INSTA-CUT DISABLED
INSTA-CUT PUNCH
POSITION
Press this button to modify the Insta-Cut Punch Position. This is the tooth count
position at which the Insta-Cut puncher activates to punch a hole in the film.
INSTA-CUT PUNCH
DWELL
Press this button to modify the Insta-Cut Punch Dwell. This is the amount of teeth
that the Insta-Cut puncher will stay activated to create a hole in the film.
INSTA-CUT BRAKE
POSITION
Press this button to modify the Insta-Cut Brake Position. This is the tooth count
position at which the Multistretch will stop paying out film, which causes the film
to tear. Min - (Insta-Cut Punch Position + Insta-Cut Punch Dwell)
INSTA-CUT TEAR
DURATION
Press this button to modify the Insta-Cut Tear Duration. This is the amount of teeth
that the Main Drive will continue to travel at the predefined Insta-Cut Speed before
slowing down to Jog Speed and stopping at home.
INSTA-CUT SPEED HZ
Press this button to modify the Insta-Cut Speed. This is the speed at which the Main
Drive will travel during the Insta-Cut sequence.
