Orion ODC-10000 User Manual

- 70 -
ORION PDP
- 71 -
Innitely Expandable

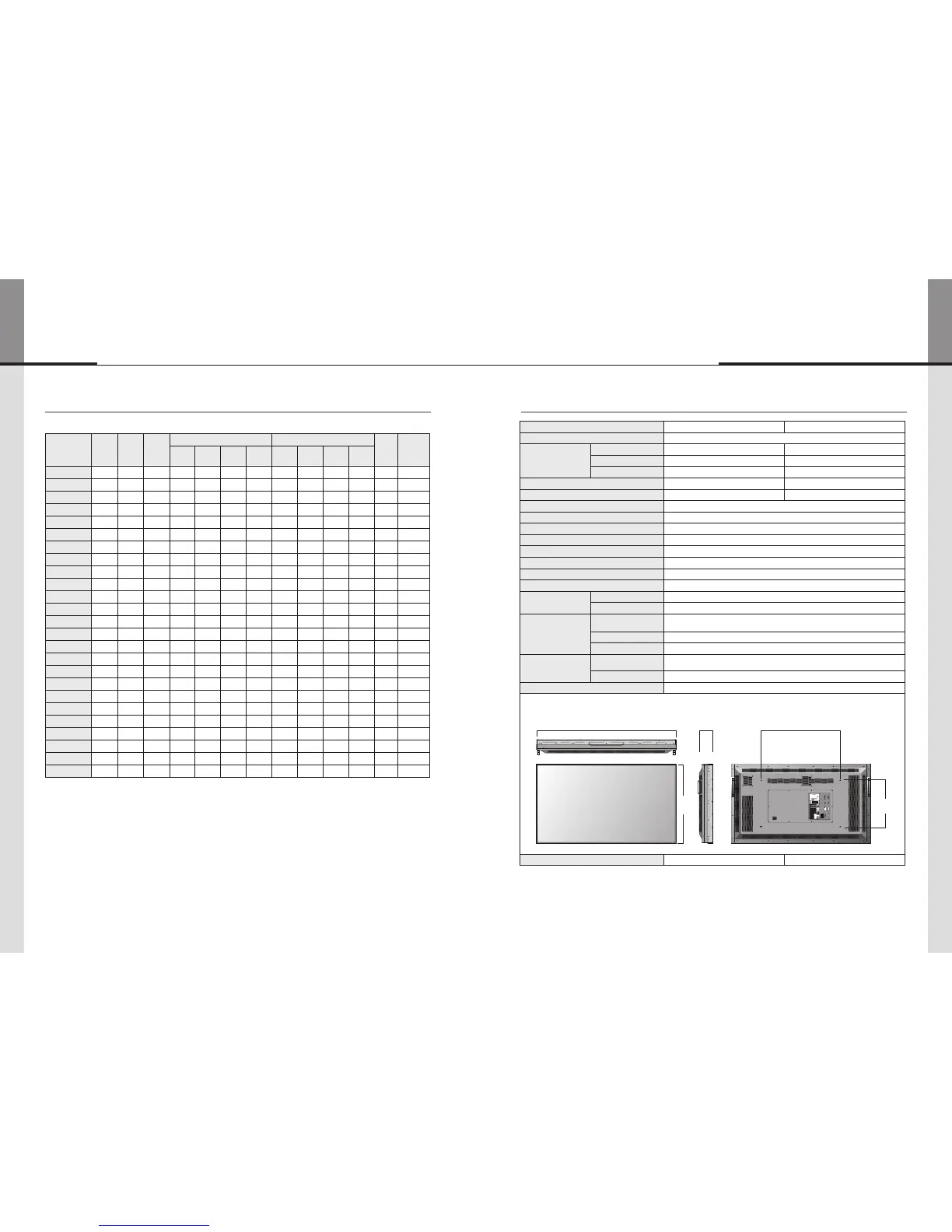

Applicable signals9.
Resolution
V-Freq
(Hz)
H-Freq
(KHz)
Pixel
Clock
(MHz)
Horizontal (Pixels) Vertical (Lines)
Pol.
(H/V)
Standard
Type
Total
Addr.
Width
Sync.
Width
Back
Porch
Total
Addr.
Width
Sync.
Width
Back
Porch
640*480*60
60 31.469 25.175 800 640 96 40 525 480 2 25 -/- DMT
800*600*50
50 30.998 30.750 992 800 72 96 621 600 4 14 +/+ CVT
800*600*60
60 37.879 40.000 1056 800 128 88 628 600 4 23 +/+ DMT
1024*768*60
60 48.363 65.000 1344 1024 136 160 806 768 6 29 -/+ DMT
1280*768*60
60 47.776 79.500 1664 1280 128 192 798 768 7 20 -/+ CVT
1280*960*60
60 60.000 108.000 1800 1280 112 312 1000 960 3 36 +/+ CVT
1280*1024*50
50 52.679 88.500 1680 1280 128 200 1057 1024 7 23 +/+ CVT
1280*1024*60
60 63.981 108.000 1688 1280 112 248 1066 1024 3 38 +/+ DMT
1360*768*50
50 39.564 69.000 1744 1360 136 192 793 768 5 17 +/+ CVT
1360*768*60
60 47.712 85.5000 1792 1360 112 256 795 768 6 18 +/+ DMT
1366*768*50
50 48.800 85.790 1758 1366 16 132 979 768 2 5 -/+ ORION
1366*768*60
60 50.000 80.000 1600 1366 128 64 838 768 5 22 -/+ ORION
1400*1050*60
60 65.317 121.750 1864 1400 144 232 1089 1050 4 32 -/+ CVT
1600*900*50
50 46.394 96.500 2080 1600 160 240 929 900 5 21 -/+ CVT
1600*900*60
60 55.990 118.250 2112 1600 168 256 934 900 5 26 -/+ CVT
1600*1200*50
50 61.795 131.500 2128 1600 168 264 1238 1200 4 31 +/+ CVT
1600*1200*60
60 75.000 162.000 2160 1600 192 304 1250 1200 3 46 +/+ DMT
480p
60 31.469 27.000 858 720 62 62 525 480 6 30 +/+ EDTV
576p
50 31.250 27.000 864 720 64 68 625 576 5 39 +/+ EDTV
720p50
50 37.500 74.250 1980 1280 80 220 750 720 5 20 +/+ HDTV
750p60
60 45.000 74.250 1650 1280 80 220 750 720 5 20 +/+ HDTV
1080i50
50 28.125 74.250 2640 1920 88 148 1125 1080 10 30 +/+ HDTV
1080i60
60 33.750 74.250 2200 1920 88 148 1120 1080 10 25 +/+ HDTV
1080p50
50 56.250 148.500 2640 1920 88 148 1125 1080 5 36 -/- HDTV
1080p60
60 67.500 148.500 2200 1920 88 148 1125 1080 5 36 -/- HDTV
Model Name
OLM-4610 OLM-4650
Power Supply
AC100V~240V(50/60Hz)
Power
Consumption
Max
200W 285W
Typical
130W 190
Stand-By
3.5W 3.5W
Luminance of White
450cd/m
2
 700cd/m
2
Contrast ratio (Dark Room)
4,500:1 3,000:1
Seam Gap (Multi Configuration)
7.3mm
Active Display Area
1018.353(H)X572.544(V)mm
Aspect Ratio
16:9
Number of pixels
1366(H)X768(V)
Pixel Pitch
0.7455X0.7455mm
Display Colors
16.7M
Viewing Angle
H:178
o
,V:178
o
Response Time
8msec(GtoG)
Environmental
condition
Temperature
5℃~35℃
Humidity
35%~75%
Input Signal
PC / DVI Signal
(Not support HDCP)
VGA,SVGA,XGA,SXGA,UXGA,WXGA,
480p,576p,720p(50/60),1080i(50/60),1080p(50/60)
Video Signal
NTSC,PAL,SECAM
Frequency
H:31.5~75kHz,V:50,60Hz
In/Output Terminal
Input
DVI-Dx1,PCx1,Videox1,RS-232Cx1,
LANx1,Servicex1
Output
DVI-Dx1,PCx1,Videox1,RS-232Cx1
Lamp Life Tme
Min50.000Hrs(Ta:25±2℃)
Dimension 1025.7mm(W) x 579.8mm(H) x 100.23mm(D)
Weights
23Kg(±0.5Kg)
26Kg(±0.5Kg)
※Productdesignandspecificationcanbechangedforqualityimprovementwithoutpriornotice.
Specification10.
MLCD
1025.7mm(±0.2) 100.23mm(±0.5)
580mm(±1.0)
579.8mm
(±0.2)
340mm
(±1.0)
MLCD
