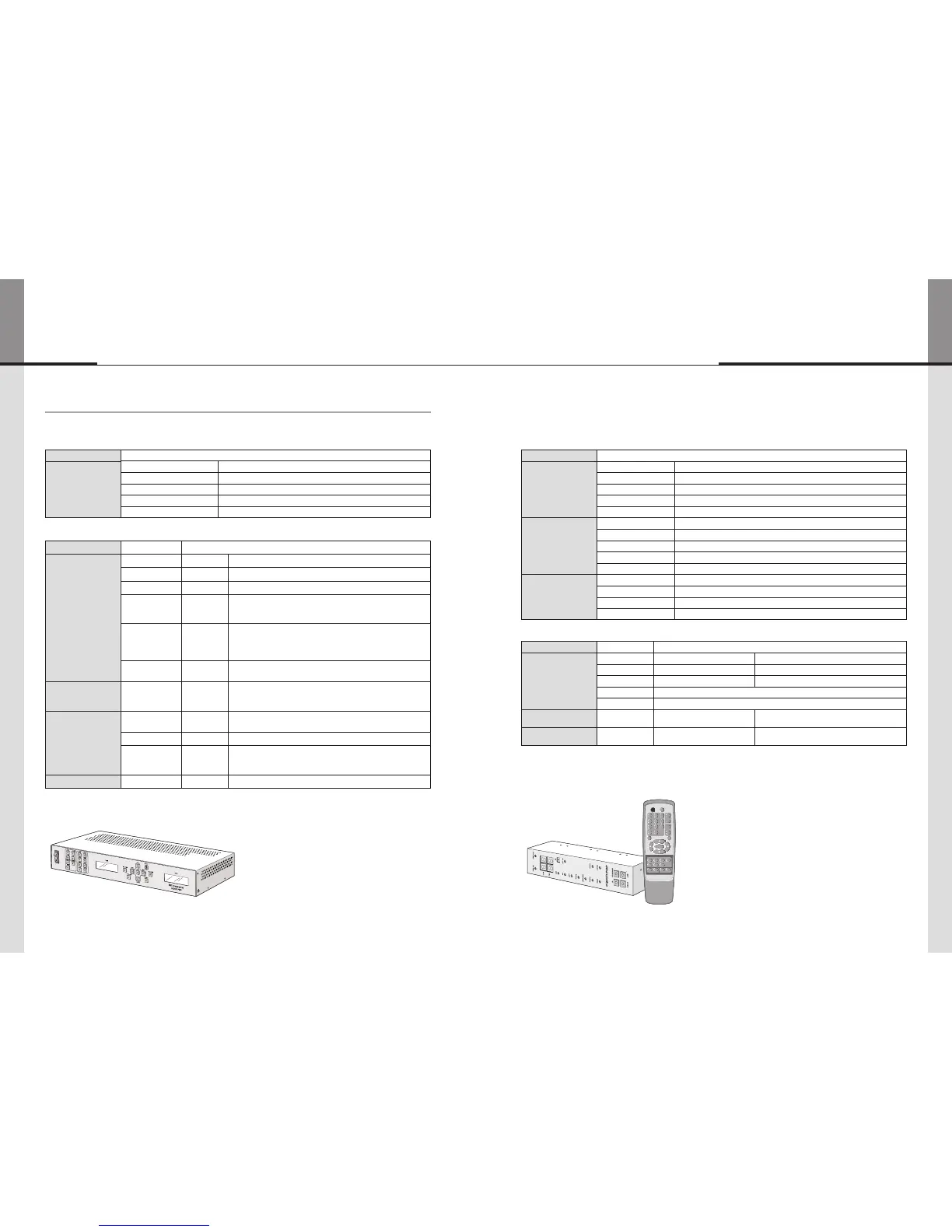

Orion ODC-10000 User Manual

- 72 -
ORION PDP
- 73 -
Innitely Expandable
Option Specification11.

Product Name
Specification
DVI Converter
(ODC-10000)
Powersupply 100~250VAC,50/60Hz
Powerconsumption 40W(MAX)
Size 405mm(W)X250mm(D)X60mm(H)
EnvironmentalCondition 0℃~40℃,20~80%RH
Weight 3Kg
Input/Output Specification
Terminal Name Terminal Specification
Video Input Singal
CompositeVideo BNC1Pin
NTSC,PAL,SECAM
S-Video DIN4Pin NTSC,PAL,SECAM
ComponentVideo BNC3Pin 480i,576i,480p,576p,720p,1080i,1080p
AnalogRGB D-Sub15Pin
VGA,SVGA,WVGA,XGA,SXGA,WXGA,UXGA
HorizontallFreq.:15.5Khz~75Khz
VerticalFreq.:50/60Hz
DVI/HDMI
DVI-D24Pin
/HDMI29Pin
480p,576p,720p,1080i,1080p
VGA,SVGA,WVGA,XGA,SXGA,WXGA,UXGA
HorizontallFreq.:15.5Khz~75Khz
VerticalFreq.:50/60Hz
SDI BNC1Pin
SMPTE259M-C,SMPTE292M,
SMPTE424M,SMPTE425(LevelA&B)
Video Output Signal
DVI
DVI-D24Pin
640X480-60/85,800X600-50/60/85,853X480-50/60,1027X768-
60/85,1280X1024-50/60,1600X900-50/60,1600X1200-50/60,
1706X960-60
Control Method
RS-232C
D-Sub9Pin
(Female)
BaudRate:115200
Max±15V
Ethernet RJ-45 TCP/IP
KeyPad
InputSouceSelectHotKey,OutputResolutionSelectHotKey,
NavigationKey(OSD),ControlChannelSelect,Communication
MethodSelect.
Display
C-LCD 2X16
InputSouce,OutputResolutionDisplay
※Specificationcanbechangedwithoutpriornoticetoimproveproductquality.
※EthernetcommunicationisavailablewhenitisusedwithNewMFC.

Product Name Specification
Remote Controller
Name
MLCDREMOTECONTROL
Power 1.5VBattery(AAA)2EA
Size 55(W)x190(L)x25(H)mm
EnvironmentalCondition -10℃~40℃
Weight 130g
NEW MFC
Voltage
+5~9V(DC),1.25W(MAX)
PowerConsumption 250mA(Max,+5~9V)
Size 58(W)x216(L)x46(H)mm
EnvironmentalCondition 0℃~40℃,20~80%RH
Weight 480g
Adapter
Size
35(W)x80(L)x86(H)mm
Input 90~264V(47~63Hz)
Output
5V,2000mA
OutputJack 2.1φ(Internaldiameter):Vcc,5.5φ(Externaldiameter):GND
Input/Output Specification
NEW MFC Terminal Name Terminal Specification
Control Input
RS-232C
D-Sub9Pin(Female) BaudRate:115200
Ethernet RJ-45 TCP/IP
USB
TypeB USB2.0
IR
Max15m,left/right45°(standard:3m)
KeyButton ControlModeSelect(IR/Ethernet/RS-232C/USB)
Control Output
RS-232C(4ea) D-Sub9Pin(Male)
BaudRate:115200
Max±15V
MLCD ID Setting
7-SegmentLED 1~99
MLCDHorizontalNumber,
VerticalNumber
-Minimumintervalbetweenbuttoninput:0.6second
※Specificationcanbechangedwithoutpriornoticetoimproveproductquality.
PDP
REMOTE CONTROL
ON OFF
INFO
A
SET
DVIC1 DVIC2 INFO AUTO
VIDEO S-VIDEO HDSDI
DVI PC DTV HDMI
B
BROADCAST
ID SETTING
ON
OFF
1 2 3
4 5 6
7 8
0
9
DVI 1
DVI 2
OUTPUT FUNCTION
DVI CONVERTER INPUT
MPDP
MLCD
