3. Keyboard

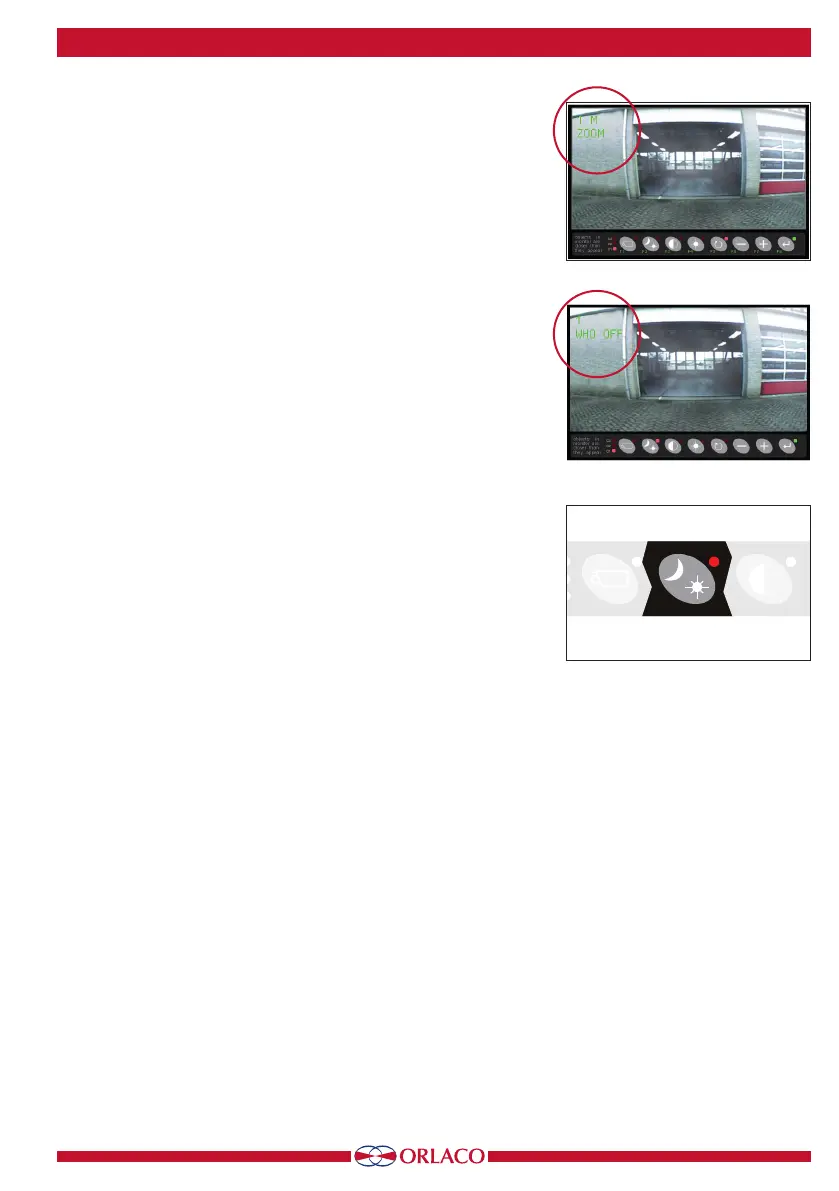

Figure 10
Figure 12
Figure 11
3.8. Quick settings
When in normal image mode, the following quick settings are available
as shortcuts:
3.8.1. TIC camera
When a TIC camera is selected and button 2 (Figure 12) is pressed, then
Color LUT and DDE quick settings are enabled (indicated by illuminated
button 2). Using the minus button (button 6), the Color LUT settings
(WHO, BHO, FUS, RB, I&F) can be selected (see Figure 11). Using the
plus button (button 7), the DDE settings (OFF, LOW, MED, HI) can be
selected.
If button 2 (Figure 12) is pressed for more than 3 seconds, then the TIC
camera performs a FFC (Flat Field Correction) cycle.
3.8.2. AFZ camera
If an AFZ camera is selected and button 2 is pressed (Figure 12), then
the zero lux and backlight functions of the AFZ camera are enabled/
disabled.
3.8.3. CCC camera
If a CCC is selected, then pressing button 2 (Figure 12) switches be-
tween all backlight settings for the entire system (DAY, NIGHT, ABC). See
section 3.2. page 9.
Button 2
Button 3
Button 4
Button 5
Buttons 6 + 7
Buttons 5,6,7,8
Buttons 6 + 7
