17
UM0972080 A 03
Figure 30
4. Service menu
CAN speed
This option selects the bit rate of the CAN bus. Available options are:
100, 125, 200, 250, 500 and 1000 kbit.
Set CAN-ID
The Orlaco CAN protocol has an ID (default 0) to control multiple
monitors via one CAN bus. The ID is inactive when the text is blue and
becomes active when the protocol is set to 1. The CAN-ID can be set
from 0-15 where 0 is the default value.
Main terminator
Enable/disable the 120 Ω terminator (CAN or RS485) between Rx and
Tx.
AUX terminator
Enable/disable the 120 Ω terminator (CAN or RS485) between AUX1
and AUX2.

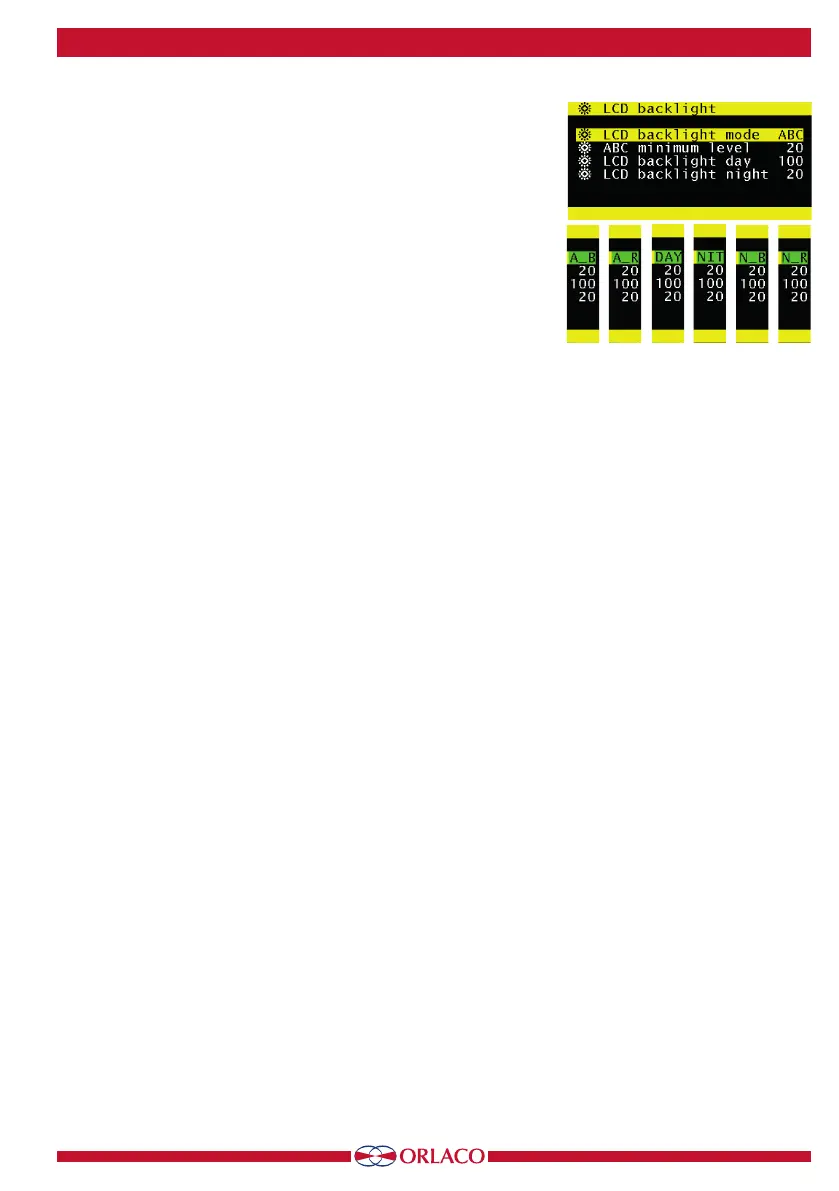

4.3.6. LCD backlight
This option opens the backlight submenu for the 7" RLED/LEDD Monitor.
See Figure 30. This menu has the following 4 options:
LCD backlight mode
This option enables automatic backlight control (ABC). The Monitor
automatically adapts its brightness to the ambient light. If required, a
specific day or night brightness can be manually set.
Alternatively, the user can choose to manually adjust the day or night
brightness setting or select a red or blue night mode.
ABC = Standard Automatic Brightness Control, A_B = ABC blue
mode, A_R = ABC red mode, DAY = Day mode (can be adjusted
between 50–100%), NIT = Night mode (can be adjusted between
0–50%), N_B = Night blue mode (can be adjusted between 0–50%),
N_R = Night red mode (can be adjusted between 0–50%)
ABC minimum level
This setting determines the minimum brightness the ABC can use
when there is low ambient light.
LCD backlight day
This option allows the day brightness setting to be manually adjusted
(50–100%).
LCD backlight night
This option allows the night brightness setting to be manually ad-
justed (0–50%).
