Orlaco RLED User Manual

6
UM0972080 A 03

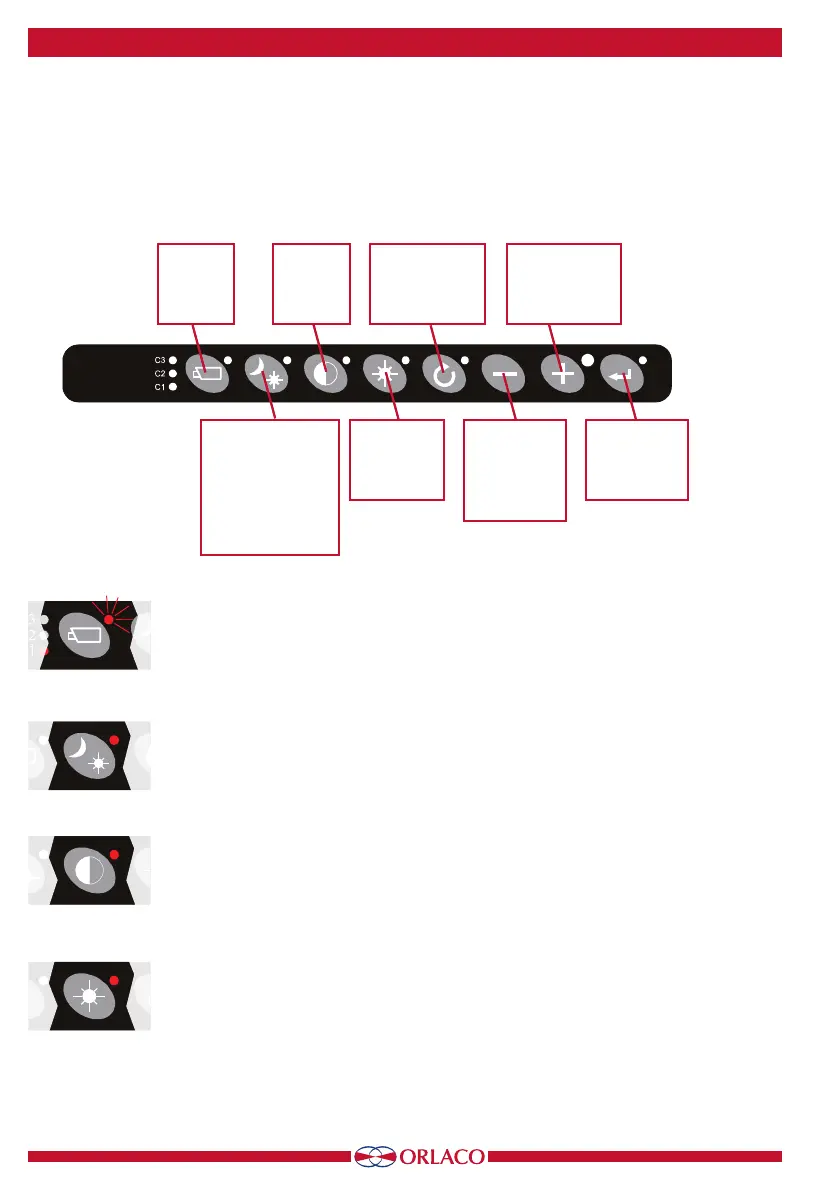

1. Quick Reference
Button 2
Auto backlight
control
day/night
modes
Button 3
Contrast
Button 4
Brightness
Button 5
Option/previ-
ous menu
Button 6
Minus -
select/setting
Button 7
Plus
+
select/setting
Button 8
Enter/Stand by
Button 1
Camera
selection
Button 1, camera selection
Press the camera selection button once. The camera LED flashes to indicate that manual
camera selection is enabled. Use the minus and plus buttons to select the camera. Press
the button again to disable manual camera selection.
Button 2, auto backlight control day/night settings
Press this button to switch between the auto backlight day and night settings.
Button 3, setting the contrast
Press the button once in order to enable the setting mode. Use the minus and plus buttons
to set the required contrast. Press the button again to disable the setting mode.
Button 4, setting the brightness
Press the brightness button once in order to enable the setting mode. Set the required
brightness using the minus and plus buttons. Press the button again to disable the setting
mode.
Keyboard
Below is a brief description of the button functions. See sections 3 and 4 for a more detailed explanation.
Button 1
Button 2
Button 3
Button 4
Button 5
Button 6
Button 8
Button 7
Button 1
Button 2
Button 3
Button 4
Button 5
Button 6
Button 8
Button 7
Button 1
Button 2
Button 3
Button 4
Button 5
Button 6
Button 8
Button 7
Button 1
Button 2
Button 3
Button 4
Button 5
Button 6
Button 8
Button 7
objects in
monitor are
closer
than
they appear
