4. Service menu
* Article No:
0208871
Monitor 7” RLED CAN Radar 6
0208371
Monitor 7” LEDD CAN Radar 6
Figure 26
Figure 27
4.3.3. Keyboard

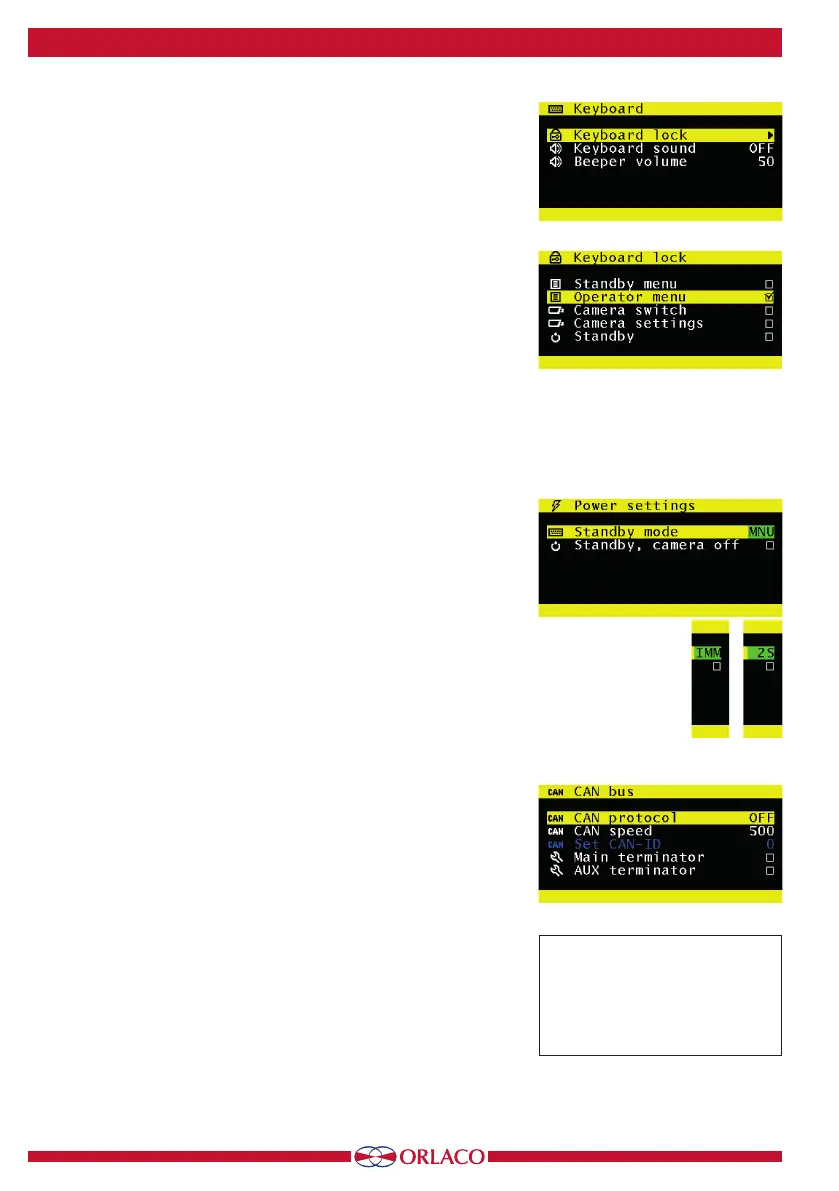

This option opens the keyboard menu. See Figure 26. This menu has the
following 3 options:
Keyboard lock
This option opens the settings menu for the keyboard lock. It is
possible to lock various functions in order to prevent any unwanted
changes. See Figure 27.
Stand by menu
When ON, the monitor can not be set in Stand by mode.
Operator menu
When ON, operator menu is not available, see chapter 5 of the
manual.
Camera switch
When ON the manual camera switch is not operational.
Camera settings
When ON, the camera settings can not be changed via the
keyboard.
Stand by
When ON, the monitor can be set in Stand by mode once and
the mode stays active. This can only be deactivated to enter the
service menu again.
The keyboard sound and beeper volume functions are not available on
all Orlaco Monitors.
4.3.4. Power settings
See Figure 28. This menu has the following 2 options:
Stand by mode
There are three available choices — use the minus and plus buttons
to select the various functions.
MNU = With this setting you access the operator menu via the enter
button (8). Select the required setting.
IMM = Immediate Stand by.
2S = Stand by after a delay of 2 seconds.
Stand by, camera o
If this option is enabled, the camera power is o during Stand by.
4.3.5. CAN bus
See Figure 29. This option opens the CAN bus menu. This menu has the
following 5 options:
CAN protocol
This option selects the signal, or CAN protocol, that the Monitor
uses. By default this is Orlaco CAN protocol 1. For the Orlaco Radar
system*: Orlaco CAN protocol 6 must be set. Other protocols are
customer-specific. The CAN speed is automatically adjusted, but it
can also be set manually once the protocol has been selected.
