Technical characteristics General instructions
cpg.0 ENA range
2.2. Mechanical characteristics
2.2.1. Dimensions and weights

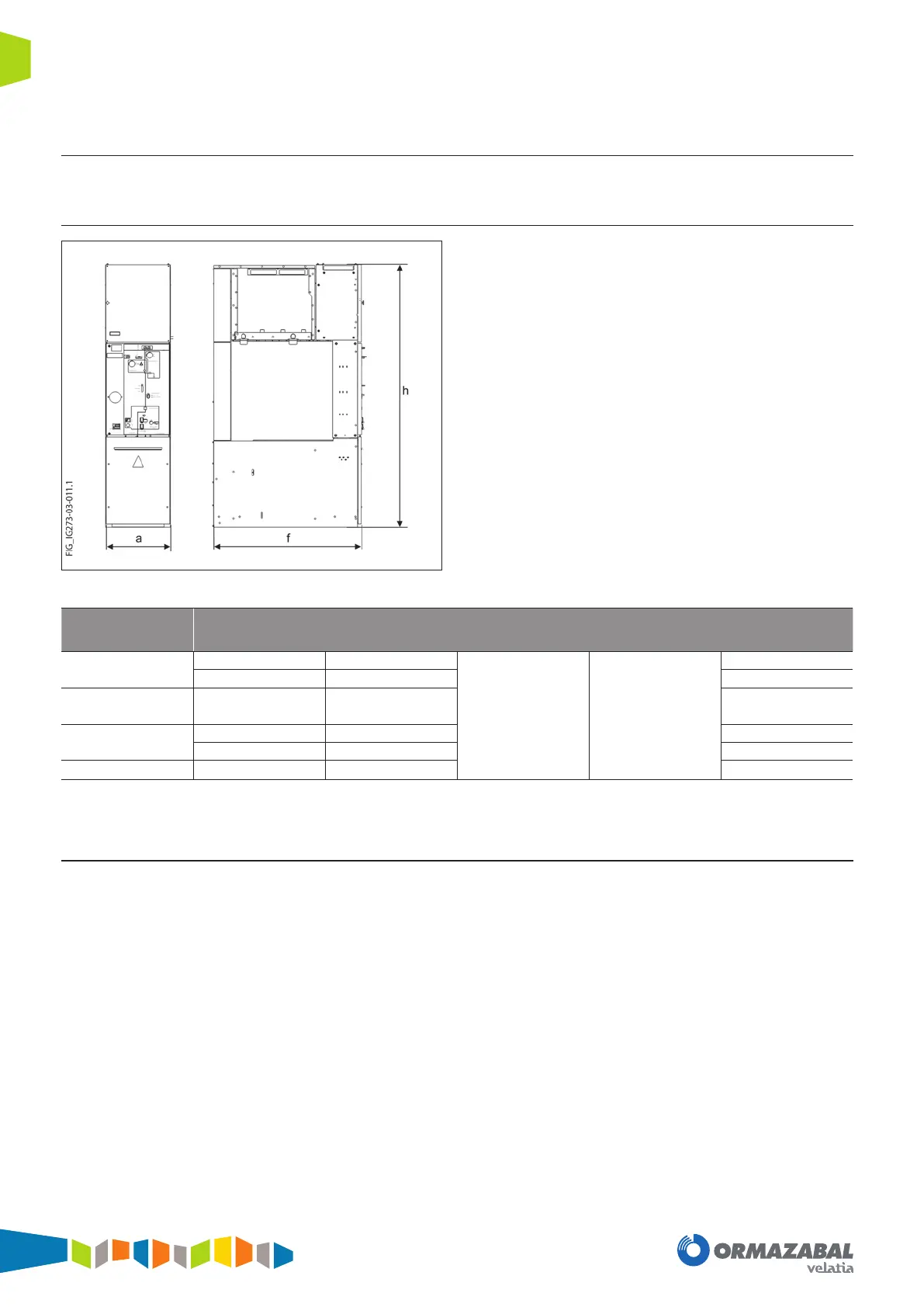

Figure 2.1. cpg.0 dimensions
Model
Feeder I
r
[A]
a
[mm]
h
[mm]
f
[mm]
Weight
[kg]
cpg.0-v
1250 600
2425
(2225 and 2625
on request)
1365
(1377 for
IAC AFL(R) class)
850
2000/2500 1000 1100/1200
cpg.0-l
cpg.0-pt
1250 600 850
cpg.0-c
1250 1200 1300
2000/2500 2000 2300/2500
cpg.0-rb
1250 600 500
Table 2.4. Dimensions of cpg.0 cubicles
2.2.2. Protection grade
All power circuit elements are installed inside a stainless
steel cubicle, providing IP65 degree of protection. The
maximum degree of protection for the cubicle assembly, in
all designations, is IP3X.
