General instructions
cpg.0 ENA range
Operations sequence
7.1.2. Bus section circuit breaker (cpg.0-c)
When the disconnector driving mechanism is also
motorized, this is tted with a “MANUAL/MOTOR”
selector to choose the type of operation to be
carried out.
To carry out any operation on the disconnector shaft,
position the interlock in disconnector position.

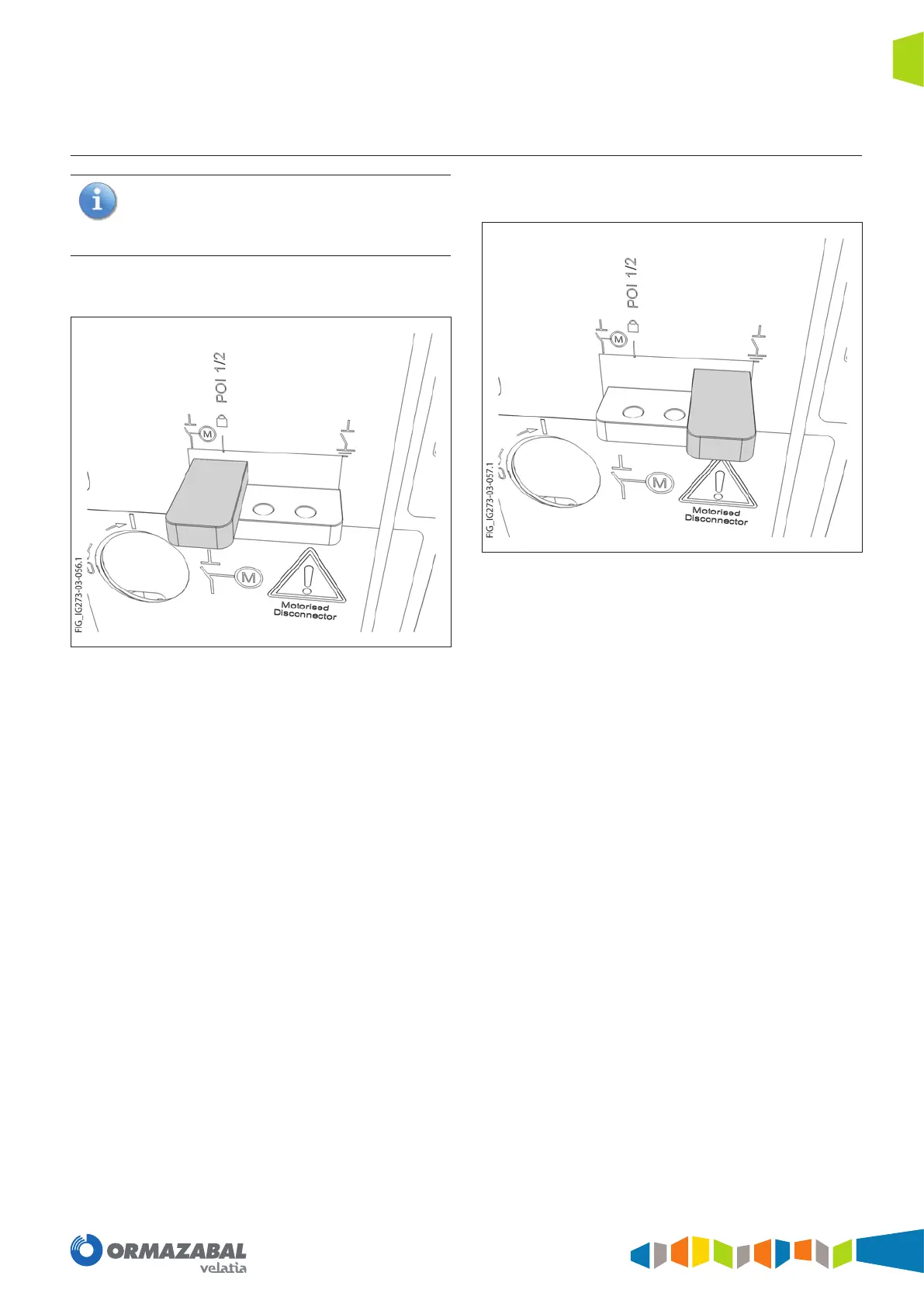

Figure 7.23. “Disconnector” position of the interlock
To carry on any operation on the earthing switch shaft,
position the interlock in earth position.
Figure 7.24. “Earthing” position of the interlock.

Ormazabal cpg.0 ENA Series Specifications

General

Rated Voltage	Up to 24 kV
Rated Current	up to 630 A
Rated Lightning Impulse Withstand Voltage	Up to 125 kV
Gas	SF6
Operating temperature range	-25°C to +40°C
Standards	IEC 62271-200
Insulation	SF6 gas
