IG-273-EN version 03; 05/08/2020
24
Installation General instructions
cpg.0 ENA range
6.6. Cubicle joints
Join the cubicles through the xing points; use the M8 X 20
hexagonal screws and M8 nuts provided.

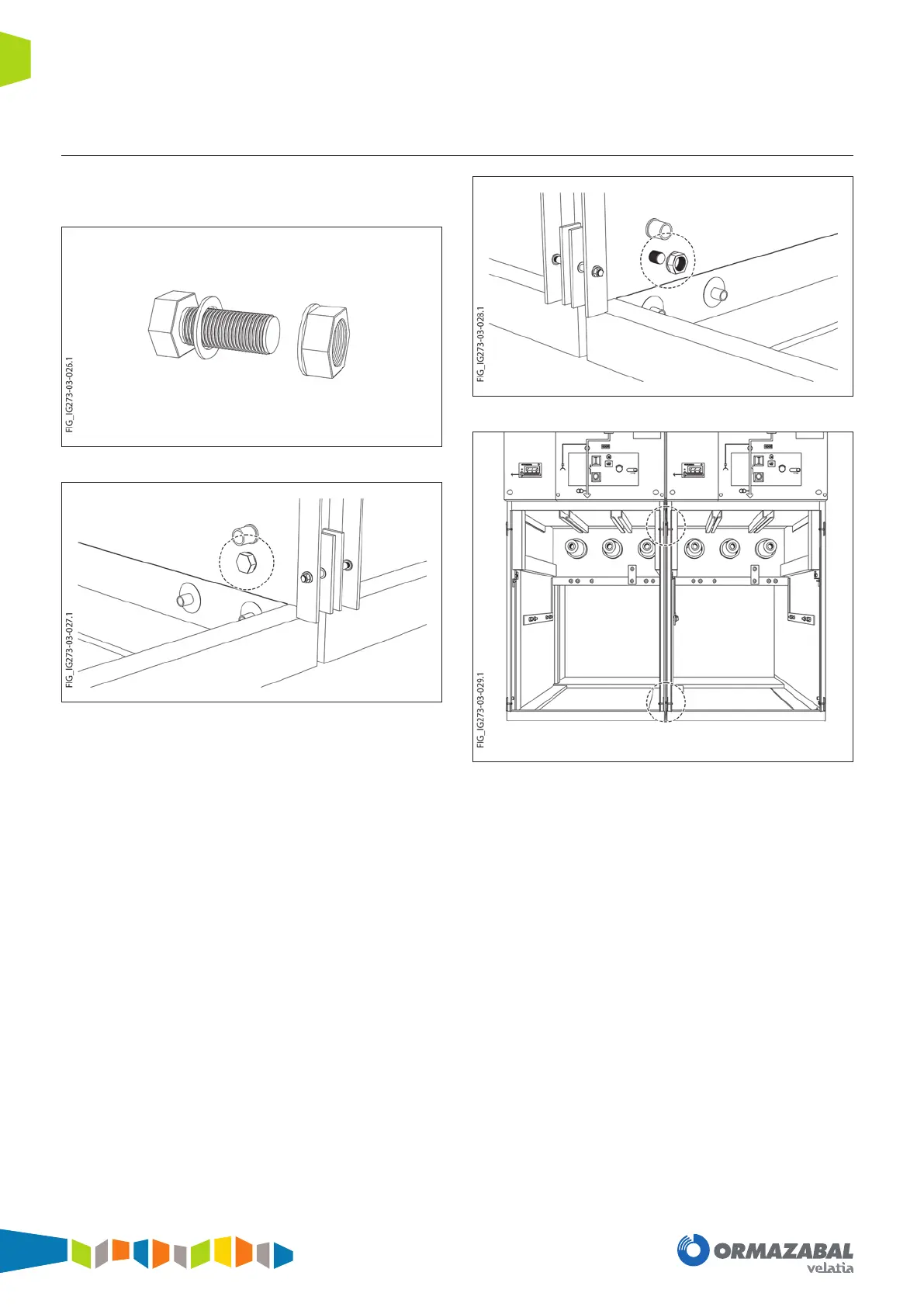

Figure 6.7. Hexagonal bolt detail with captive washers
Figure 6.8. Detail of the positioned screw
Figure 6.9. Detail of the nut
Figure 6.10. Detail of the two connected cubicles
