Handling and transport General instructions
cpg.0 ENA range
4. Handling and transport
4.1. Transport conditions
During transport, the switchgear must be correctly seated
and xed so that it cannot move about and possibly damage
the equipment. Always in upright position, directly on the
ground or on a pallet, depending on the type of handling
involved. Check that the cubicle is perfectly balanced at all
times.
The units are top heavy and due care must be taken
when handling.
4.2. Lifting means
The cpg.0 cubicles can be handled by lifting (with slings) or
with a forklift truck (with a pallet):

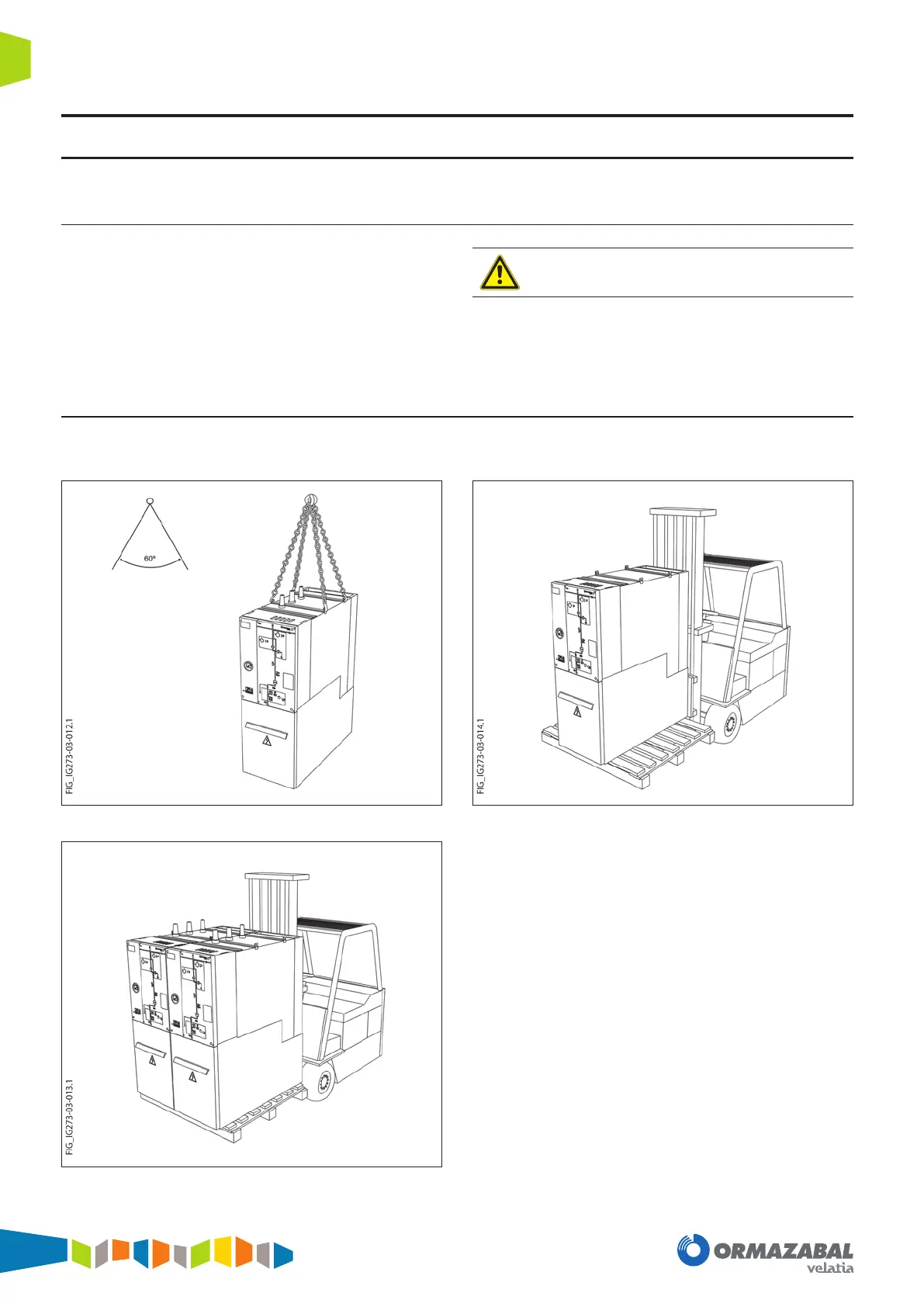

Figure 4.1. Lifting a cpg.0 cubicle using chains
Figure 4.2. Lifting a cpg.0-c cubicle with a forklift truck
Figure 4.3. Lifting a cpg.0 cubicle using forklift truck
