General instructions
cpg.0 ENA range
Handling and transport
During installation, Ormazabal could provide a specic
tool for handling the cpg.0 coupling cubicle when lifting:

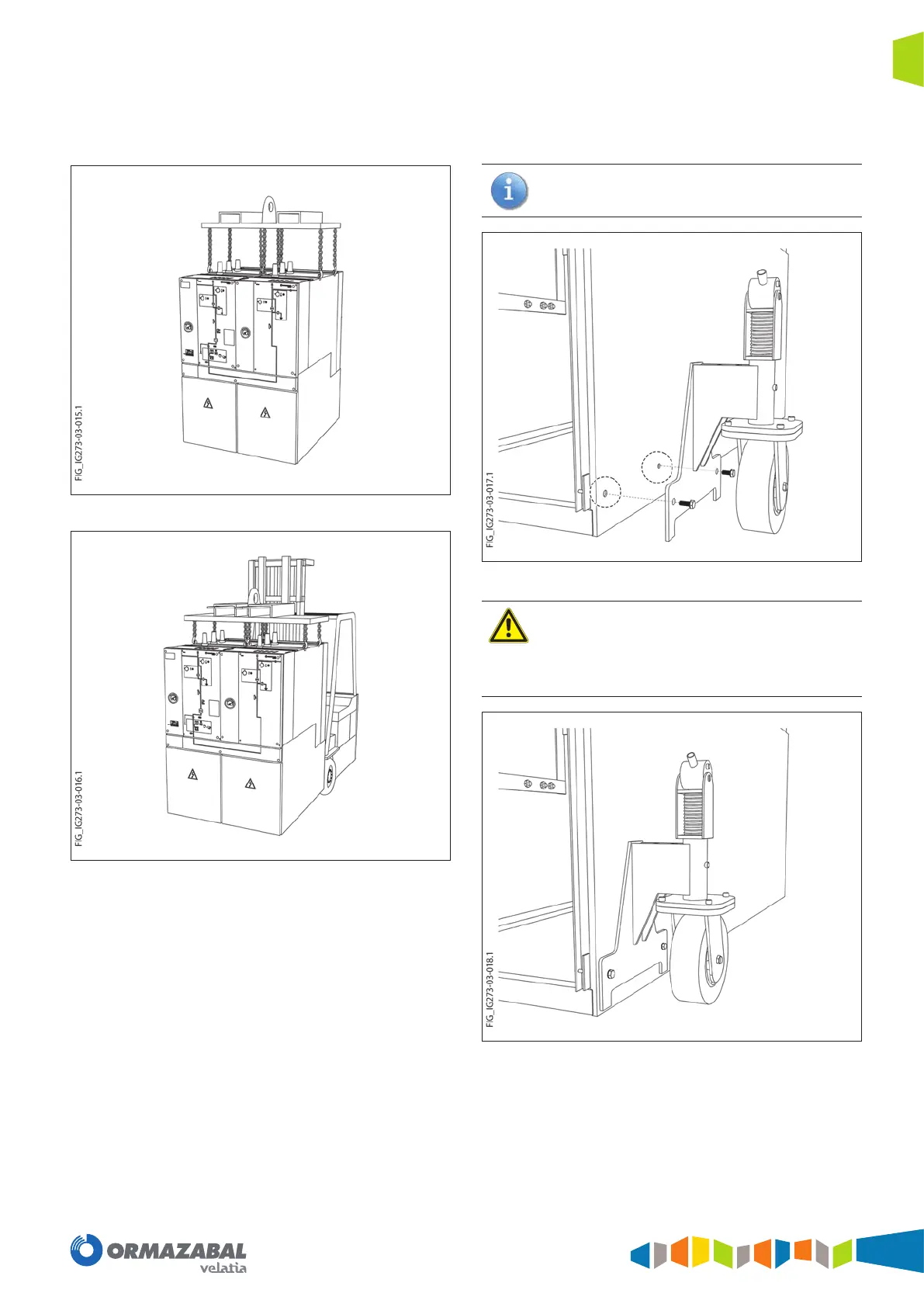

Figure 4.4. Lifting a cpg.0-c cubicle using chains and tool
Figure 4.5. Lifting a cpg.0-c cubicle using a forklift truck and tool
Elevating caster wheels can be used to put the cubicles in
their nal position.
Optional supply. Please check with Ormazabal.
Figure 4.6. Wheel xings in the cubicle
Do not move the units with the cable compartment
threshold section or voltage transformer rear access
cover removed.
Do not use pry bars under the threshold piece as this
may cause damage to the unit.
Figure 4.7. Detail of the positioned wheel
