7.2.2. Bus section circuit breaker (cpg.0-c)
When the disconnector driving mechanism
is also motorized, this is tted with a
“MANUAL/MOTOR” selector to choose the type of
operation to be carried out.
To carry out any operation on the disconnector shaft,
position the interlock in disconnector position.

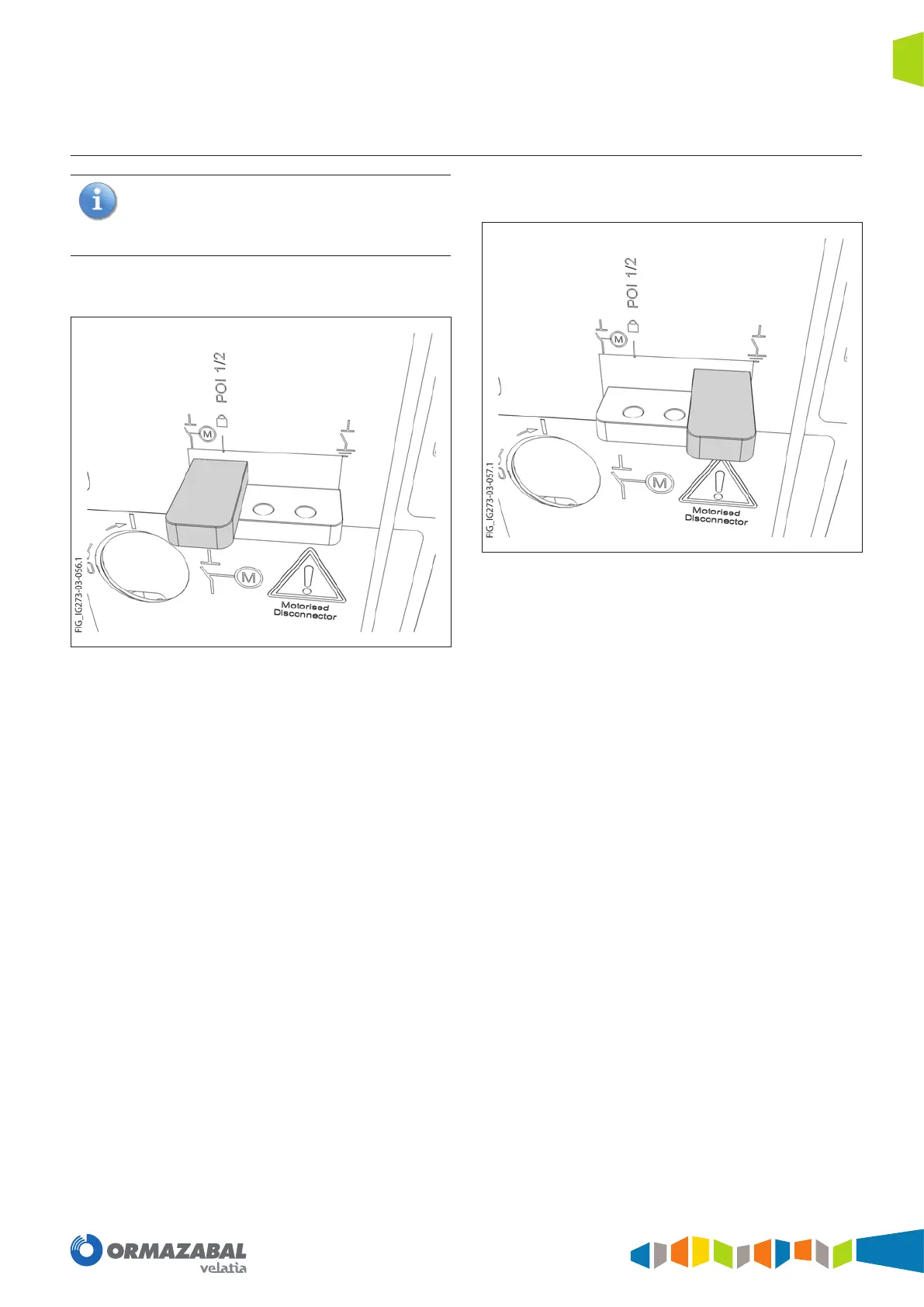

Figure 7.63. “Disconnector” position of the interlock
To carry out any operation on the earthing switch shaft,
position the selector in earth position.
Figure 7.64. “Earthing” position of the selector
