General instructions
cpg.0 ENA range
Installation
6.5. Fastening to the floor
Secure the cubicles to the oor at the relevant xing points
inside the bottom supports using M10 xing bolts.
See contract documentation for dimensional details.

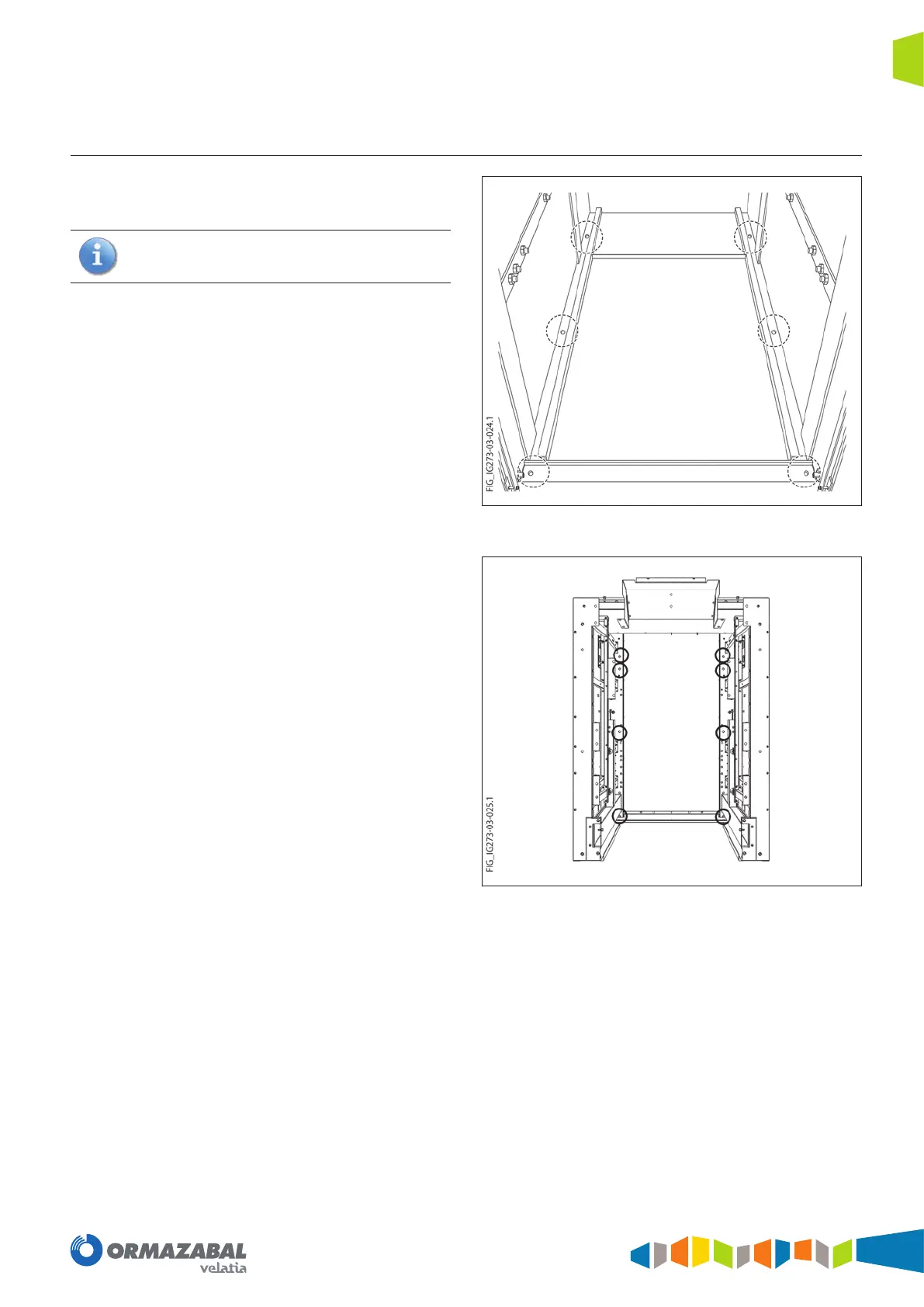

Figure 6.5. Fixing points inside the cable compartment for cubicles up to
1250 A
Figure 6.6. Fixing points inside the cable compartment for cubicles up to
2000/2500 A
