IG-273-EN version 03; 05/08/2020
48
Operations sequence General instructions
cpg.0 ENA range

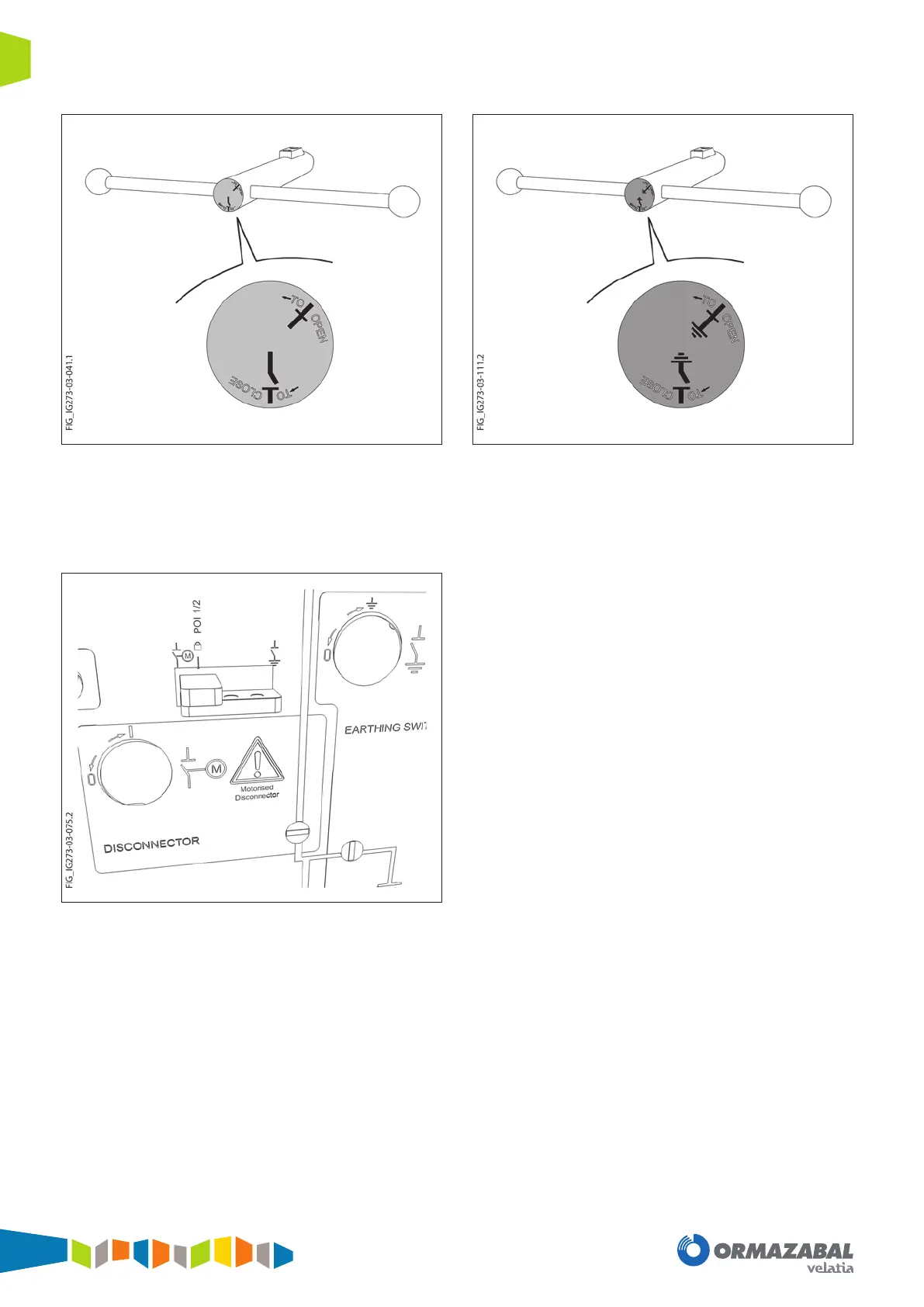

Figure 7.43. Details of the manual driving lever of the disconnector Figure 7.44. Details of the manual driving lever of the earthing switch
To carry out any operation on the disconnector shaft,
position the interlock in the disconnector position.
Figure 7.45. Disconnector position of the interlock
