IG-273-EN version 03; 05/08/2020
50
Operations sequence General instructions
cpg.0 ENA range
Disconnection

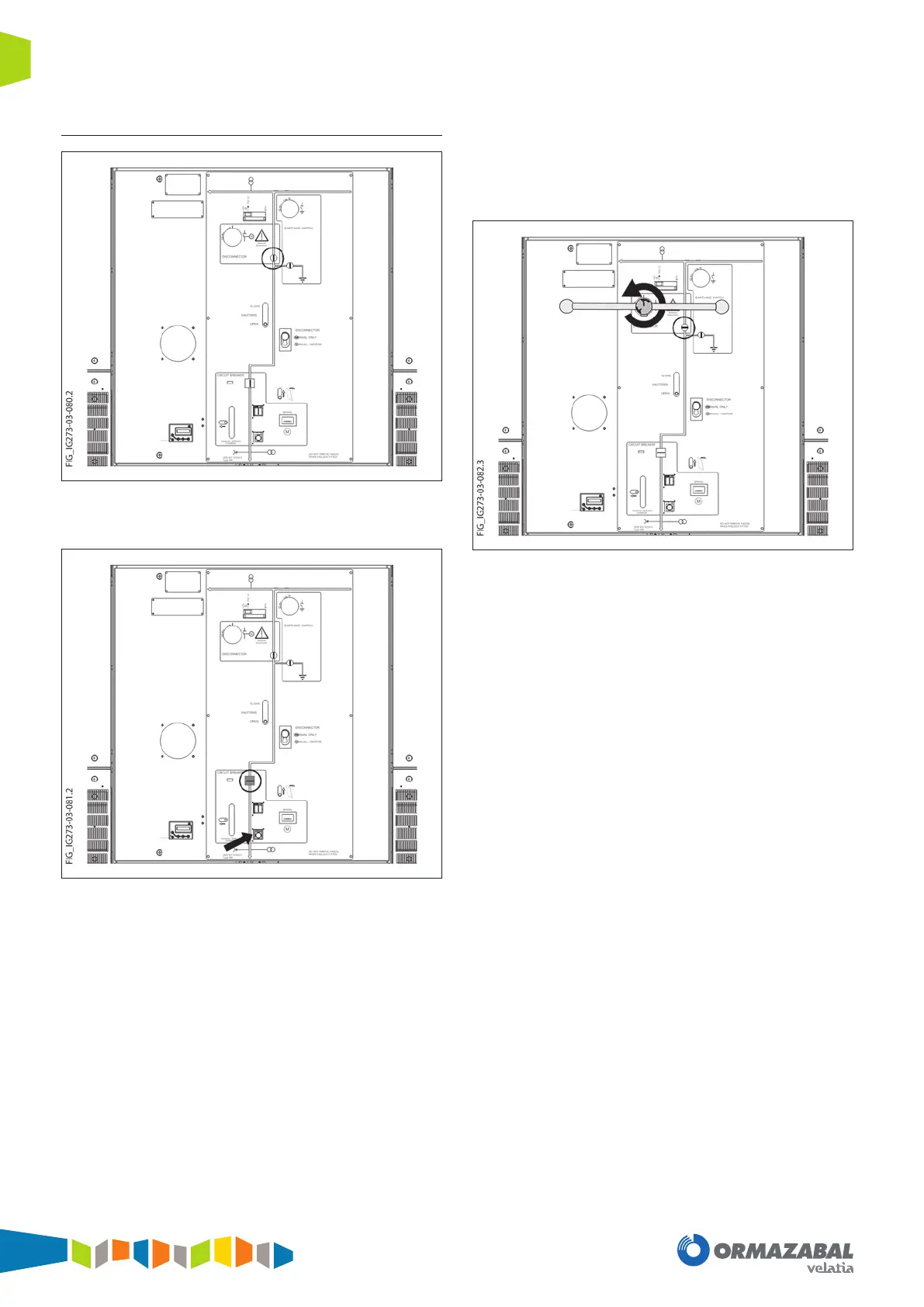

Figure 7.50. Starting position of the cpg.0-v disconnector
Press the “0” pushbutton to open the circuit-breaker.
Figure 7.51. Circuit-breaker open
Insert the lever in the feeder disconnector driving shaft Then
turn ANTI-CLOCKWISE. Check that the feeder disconnector
status indicator shows opened.
Figure 7.52. Feeder disconnector open
