General instructions
cpg.0 ENA range
Operations sequence
Cable test in circuit breaker functions
Once the medium-voltage cables have been earthed:
1. Remove the cable compartment cover.
a. Remove the 6 fixing screws on the front of the cover.

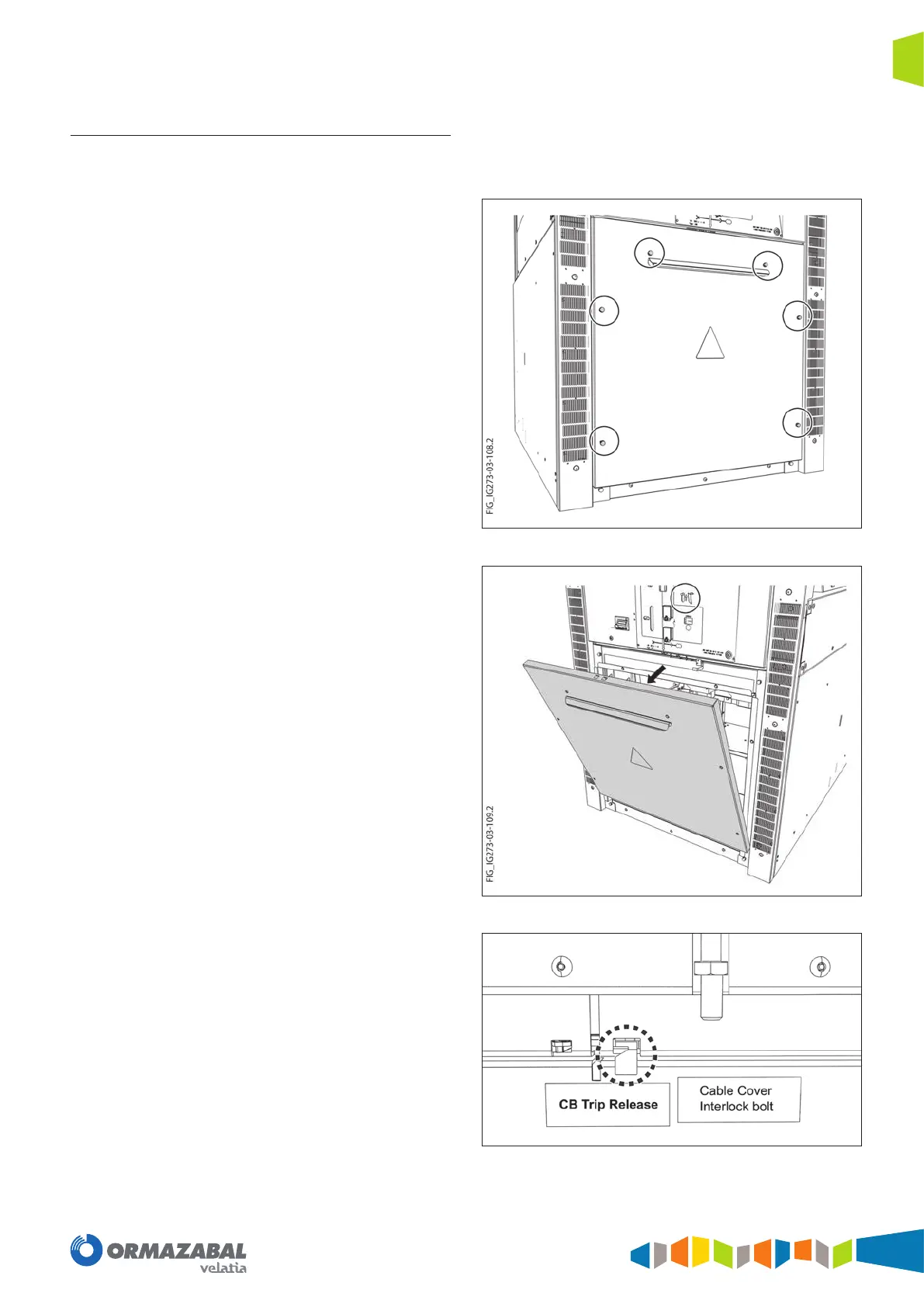

Figure 7.58. Fixing screws of the cable compartment cover
b. Lift the cover release lever located on the fascia. This
will allow the cover to fall forward whereupon it can
be lifted from the unit.
Figure 7.59. Removing the cable compartment cover
2. Operate the “CB Trip Release“ button located in the
top of the cable compartment, allowing the door
interlocking to come down and release the driving
pushbuttons. Open the circuit-breaker.
Figure 7.60. “CB Trip Release” button situation
