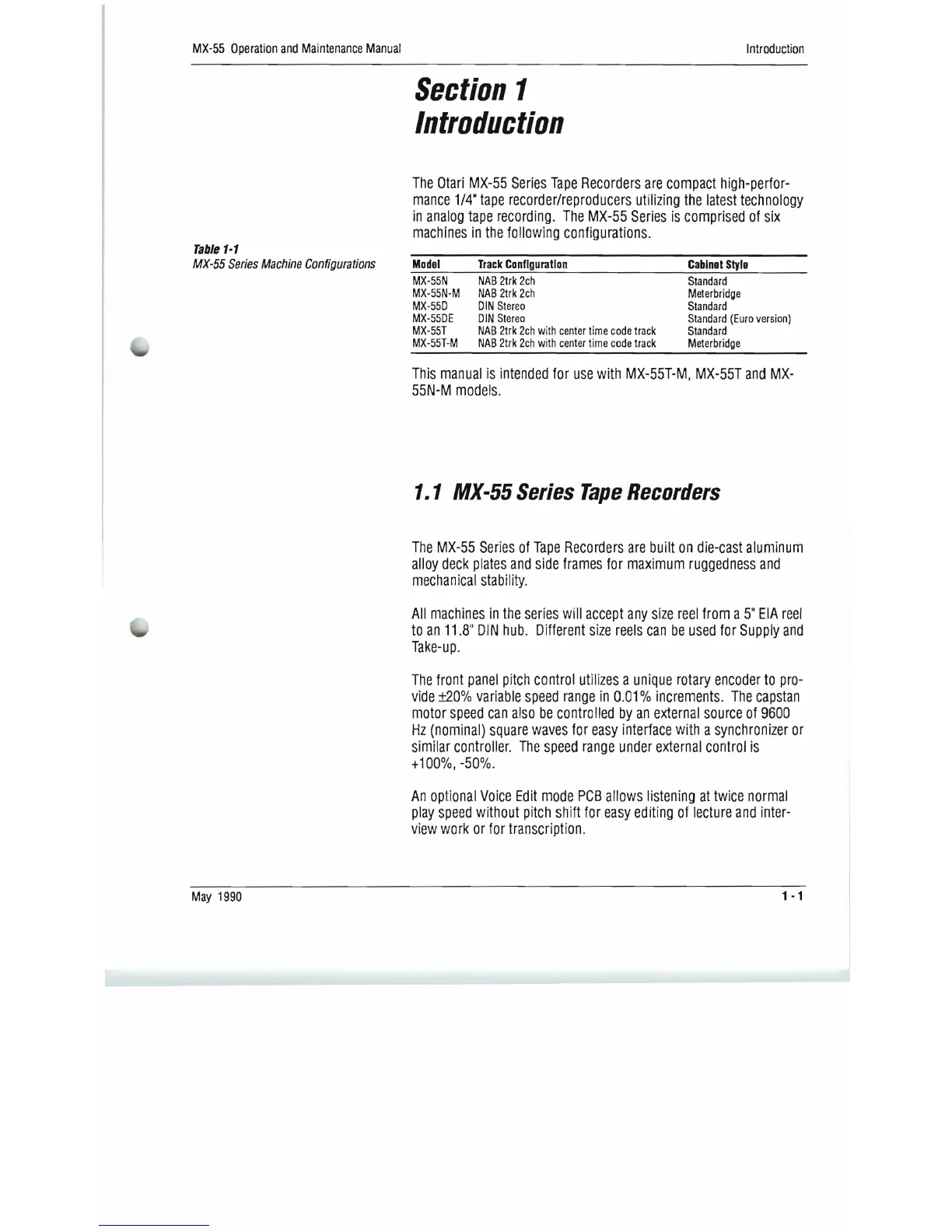

MX-55 Operation and Maintenance Manual
Introduction
Section 1
Introduction
The Otari MX-55 Series Tape Recorders are compact high-perfor-
mance 1/4" tape recorder/reproducers utilizing the latest technology
in analog tape recording . The MX-55 Series is comprised of six
machines in the following configurations.
Table 1-1
MX-55 Series Machine Configurations
Model Track Configuration
Cabinet Style
MX-55N NAB 2trk 2ch
Standard
MX-55N-M
NAB 2trk 2ch
Meterbridge
MX-55D
DIN Stereo Standard
MX-55DE
DIN Stereo Standard (Euro version)
MX-55T
NAB 2trk 2ch with center time code track Standard
MX-55T-M
NAB 2trk 2ch with center time code track
Meterbridge
This manual is intended for use with MX-55T-M, MX-55T and MX-
55N-M models.
1.1 MX-55 Series Tape Recorders
The MX-55 Series of Tape Recorders are built on die-cast aluminum
alloy deck plates and side frames for maximum ruggedness and
mechanical stability.
All machines in the series will accept any size reel from a 5" EIA reel
to an 11.8" DIN hub. Different size reels can be used for Supply and
Take-up.
The front panel pitch control utilizes a unique rotary encoder to pro-
vide ±20% variable speed range in 0.01 % increments. The capstan
motor speed can also be controlled by an external source of 9600
Hz (nominal) square waves for easy interface with a synchronizer or
similar controller. The speed range under external control is
+ 100%, -50%.
An optional Voice Edit mode PCB allows listening at twice normal
play speed without pitch shift for easy editing of lecture and inter-
view work or for transcription.
May 1990
1 -1
