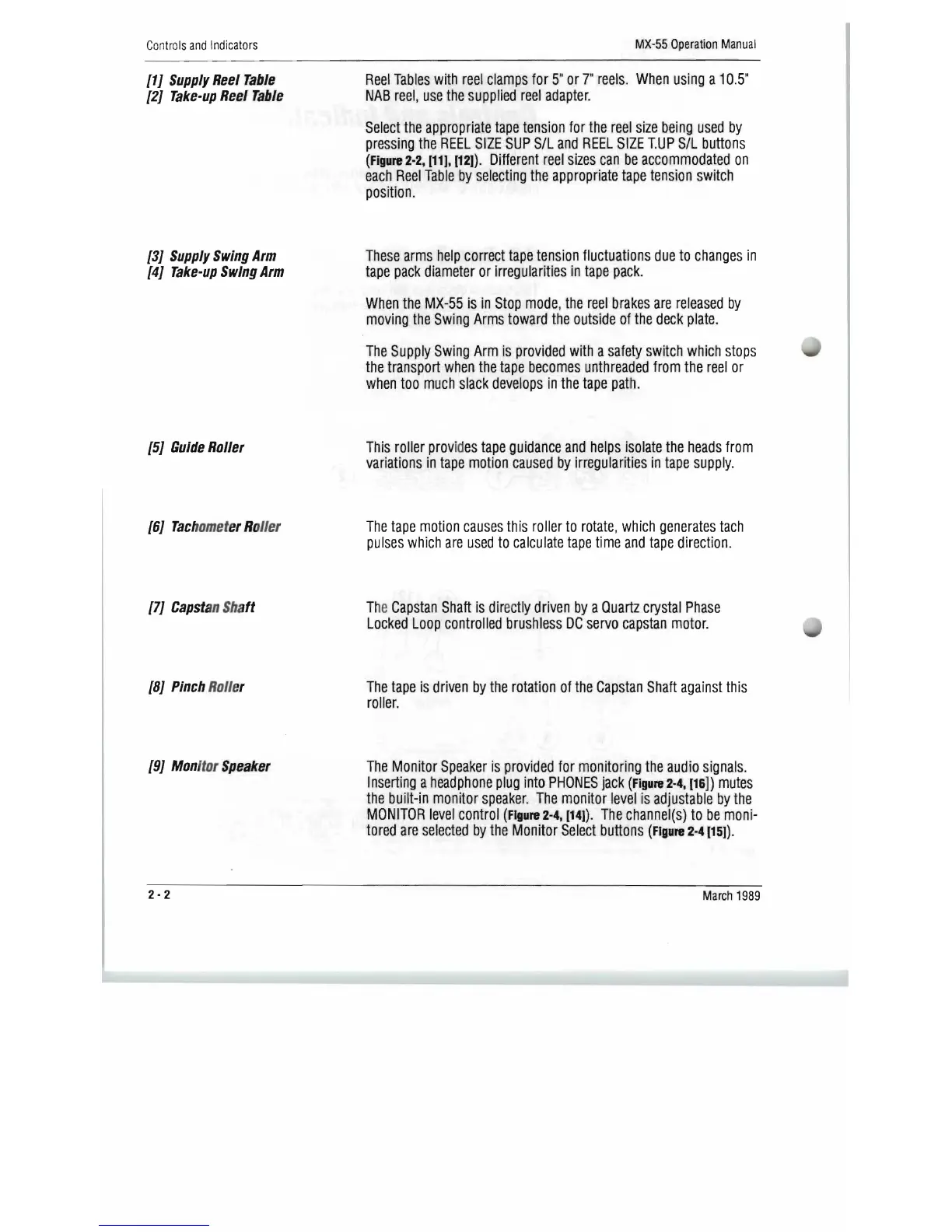

Controls and Indicators
MX-55 Operation Manual
[1 J Supply Reel Table
[2J Take-up Reel Table
[3J Supply Swing Arm
[4J Take-up Swing Arm
[5J Guide Roller
[6J Tac h omet er Roller
[7J Capst an Sh a ft
[8J Pinch Roller
[9J Mon itor Speaker
Reel Tables with reel clamps for 5" or 7" reels. When using a 10.5"
NAB reel, use the supp\'ied reel adapter.
Select the appropriate tape tension for the reel size being used by
press , jl1g the REEL SIZE SUP S/L and REEL SIZE IUP S/L buttons
(f igure 2-2. [11]. [12]). Different reel sizes can be accommodated on
each Reel Table by selecting the appropriate tape tension switc 1h
position.
These arms help correct tape tension fluctuations due to changes in
tape pack diameter or irregularities in tape pack.
When the MX-55 is in Stop mode, the reel brakes are released by
moving the Swing Arms toward the outside of the deck plate.
The Supply Swing Arm is provided with a safety sw ,i tch which stops
the transport when the tape becomes unthreaded from the reel or
when too much slack develops in the tape pat h.
This roller prov id es tape guidance and helps iso ' late the heads from
variations in tape motion caused by irregularities in tape supply.
The tape motion causes this roller to rotate, which generates tach
pulses which are used to calculate tape time and tape direction .
The
Capstan Shaft is dir ec tly driven by a Quartz crystal Phase
Locked Loop controlled brushless DC servo capstan motor.
The tape is driven by the rotation of the Capstan Shaft against this
roller.
The Monitor Speaker is provided for monitoring the audio signals .
Inserting a headphone plug into PHONES jack (Figure 2-4. [16]) mutes
the built-in monitor speaker. The monitor level is adjustable by the
MONITOR level control (Figure 2-4, [1 ' 4]). The channel(s) to be moni-
tored are selected by the Mo n itor Select buttons (FIQure 2-4 [15]).
