OTARI MX-55T-M - Play Button and Indicator; Stop Button and Indicator; Rewind Button and Indicator; F.fwd Button and Indicator

MX-55 Operation Manual
Controls and Indicators

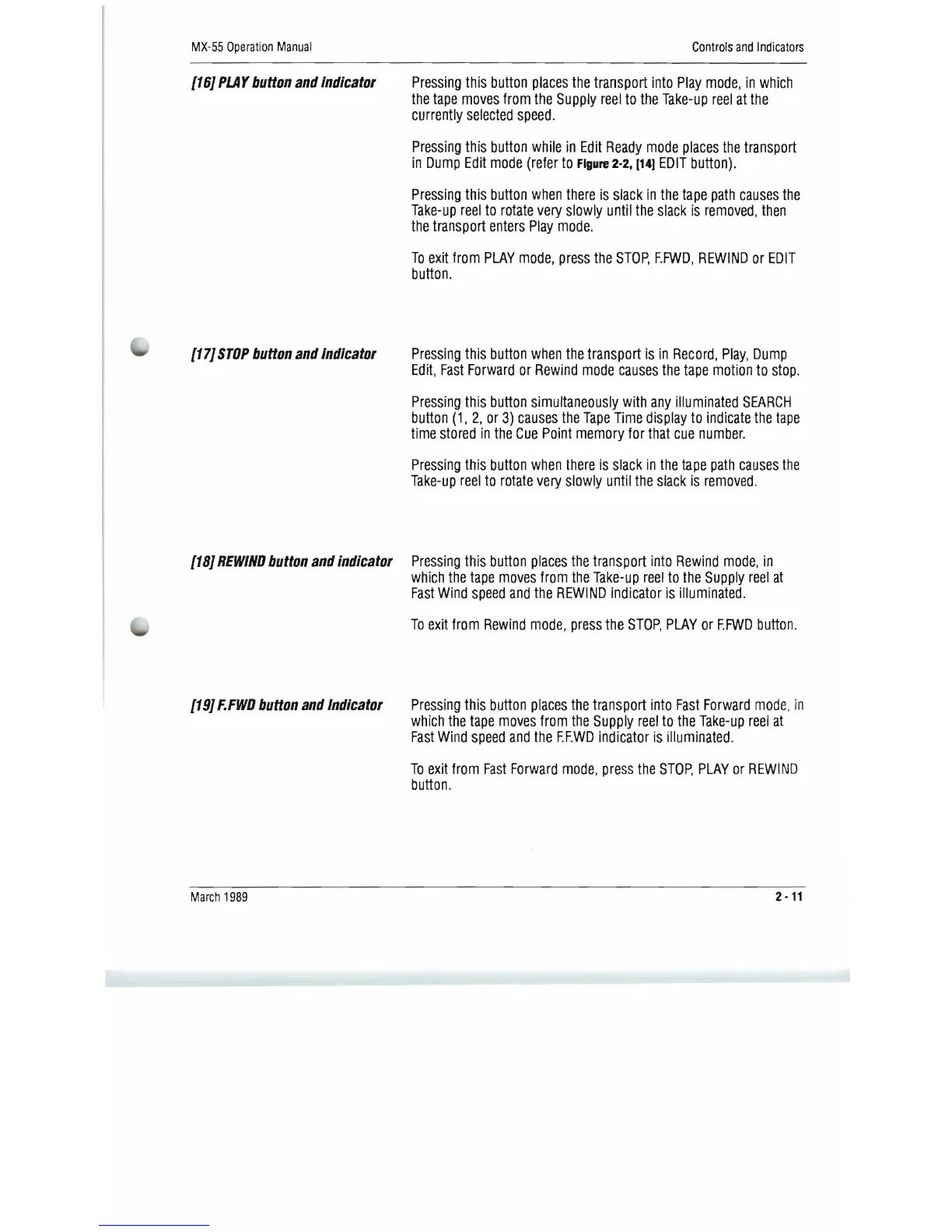

[16J PLAY button and indicator Pressing this button places the transport into Play mode, in which
the tape moves from the Supply reel to the Take-up reel at the
currently selected speed.
Pressing this button while in Edit Ready mode places the transport
in Dump Edit mode (refer to Figure 2-2, [14] EDIT button).
Pressing this button when there is slack in the tape path causes the
Take-up reel to rotate very slowly until the slack is removed , then
the transport enters Play mode.
To exit from PLAY mode, press the STOP, F.FWD, REWIND or EDIT
button.
[17J STOP button and Indicator Pressing this button when the transport is in Record, Play, Dump
Edit, Fast Forward or Rewind mode causes the tape motion to stop.
Pressing this button simultaneously with any illuminated SEARCH
button (1, 2, or 3) causes the Tape Time display to indicate the tape
time stored in the Cue Point memory for that cue number.
Pressing this button when there is slack in the tape path causes the
Take-up reel to rotate very slowly until the slack is removed.
[18J REWIND button and indicator Pressing this button places the transport into Rewind mode, in
which the tape moves from the Take-up reel to the Supply reel at
Fast Wind speed and the REWIND indicator is illuminated.
To exit from Rewind mode, press the STOP, PLAY or F.FWD button.
[19J F.FWD button and Indicator Pressing this button places the transport into Fast Forward mode, in
which the tape moves from the Supply reel to the Take-up reel at
Fast Wind speed and the F.F.WD indicator is illuminated .
To exit from Fast Forward mode, press the STOP, PLAY or REWIND
button.
March 1989
2 -11
