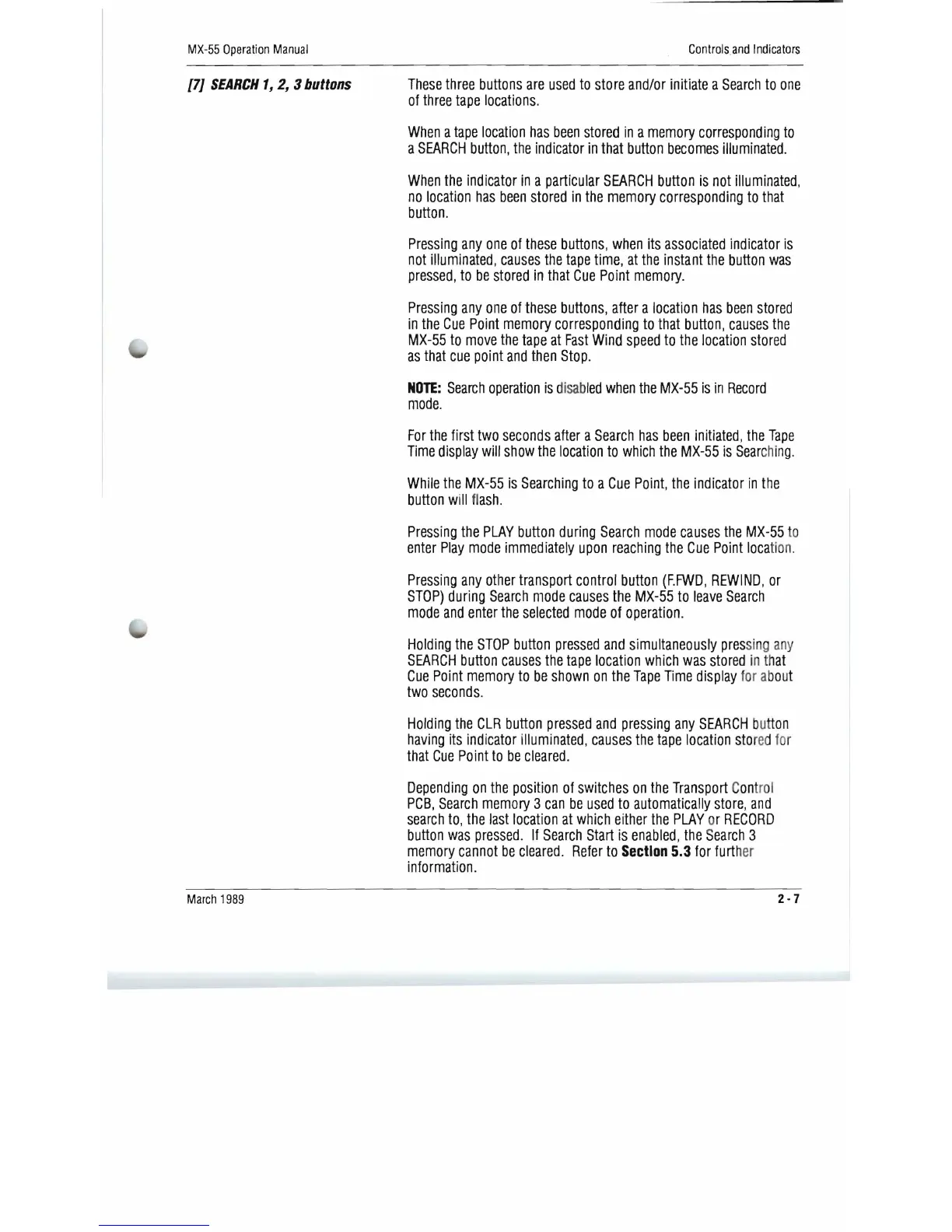

MX-55 Operation Manual
Controls and Indicators
[7J SEARCH 1, 2, 3 buttons
These three buttons are used to store and/or initiate a Search to one
of three tape locations.
When a tape location has been stored in a memory corresponding to
a SEARCH button, the indicator in that button becomes illuminated.
When the indicator in a particular SEARCH button is not illuminated,
no location has been stored in the memory corresponding to that
button.
Pressing anyone of these buttons, when its associated indicator is
not illuminated, causes the tape time, at the instant the button was
pressed, to be stored in that Cue Point memory.
Pressing anyone of these buttons, after a location has been stored
in the Cue Point memory corresponding to that button, causes the
MX-55 to move the tape at Fast Wind speed to the location stored
as that cue pOint and then Stop.
NOTE: Search operation is disab led when the MX-55 is in Record
mode.
For the first two seconds after a Search has been initiated, the Tape
Time display will show the location to which the MX-55 is Searc h ing.
While the MX-55 is Searching to a Cue Point, the indicator in the
button will fl ash.
Pressing the PLAY button during Search mode causes the MX-55 to
enter Play mode immediately upon reaching the Cue Point locati on .
Pressing any otller transport control button (F.FWD, REWIND, or
STOP) during Search mode causes the MX-55 to leave Search
mode and enter the selected mode of operation.
Holding the STOP button pressed and simultaneously pres sing a ny
SEARCH button causes the tape location which was stored in th at
Cue Point memory to be shown on the Tape Time display for a bout
two seconds.
Holding the CLR button pressed and pressing any SEARCH bu tton
having its indicator illuminated, causes the tape location sto red fo r
that Cue Point to be cleared.
Depending on the position of switches on the Transport C ont rol
PCB, Search memory 3 can be used to automatically store, and
search to, the last location at which either the PLAY or RECORD
button was pressed. If Search Start is enabled, the Search 3
memory cannot be cleared. Refer to Section 5.3 for furt h er
information.
March 1989
2·7
