Controls and Indicators MX-55 Operation Manual
f11 PARAllEL I/O connector
[21 GROUND terminal
[31 POWER input connector

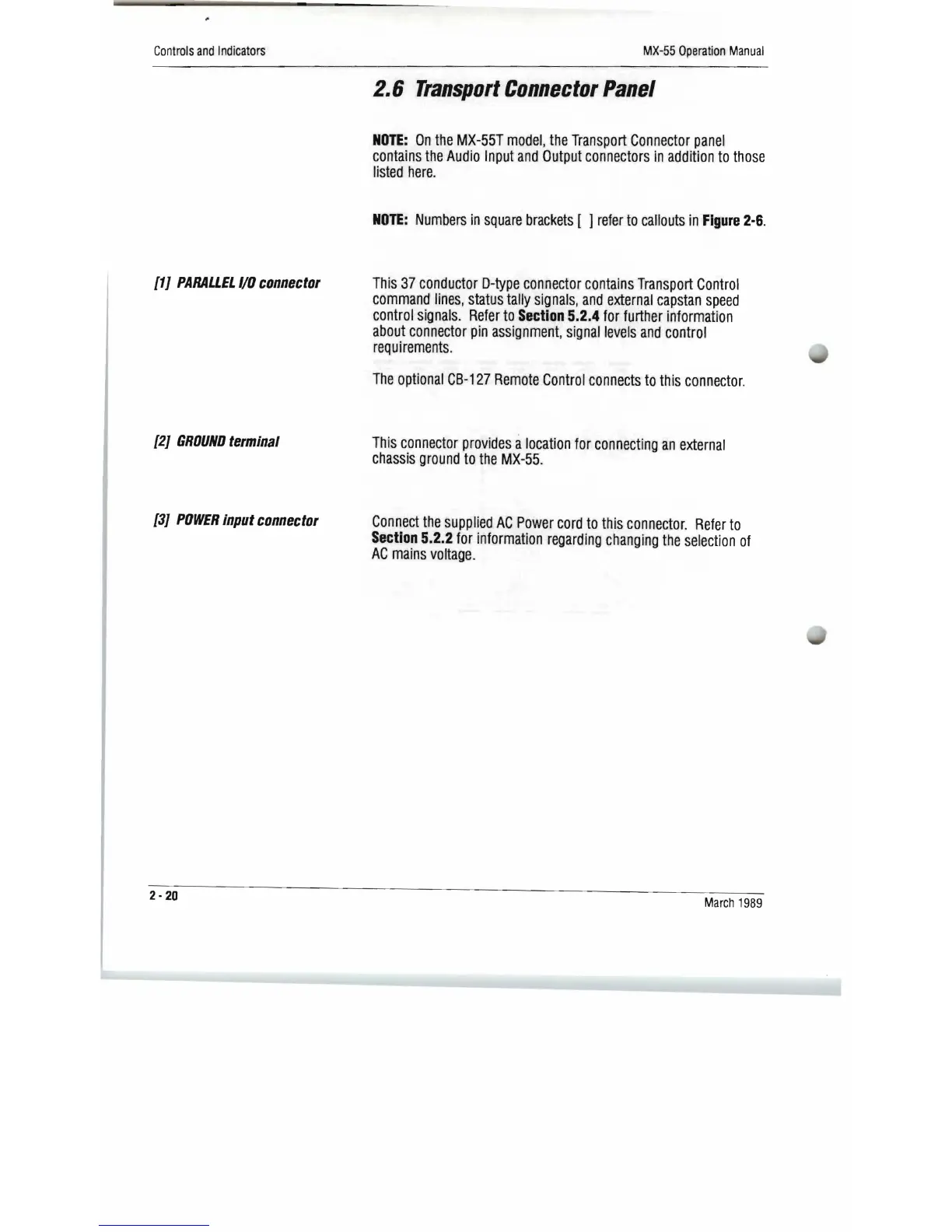

2.6 Transport Connector Panel
NOTE: On the MX-55T model, the Transport Connector panel
contains the Audio Input and Output connectors in addition to those
listed here.
NOTE: Numbers in square brackets [ ] refer to callouts in Figure 2·6.
This 37 conductor D-type connector contains Transport Control
command lines, status tally signals, and external capstan speed
control signals. Refer to Section 5.2.4 for further i nformation
about connector pin assignment, signal levels and control
requirements.
The optional C8-127 Remote Control connects to this connector.
This connector provides a location for connecting an external
chassis ground to the MX-55.
Connect the supplied AC Power cord to this connector. Refer to
Section 5.2.2 for information regarding changing the selection of
AC mains voltage.
2 - 20
March 1989
