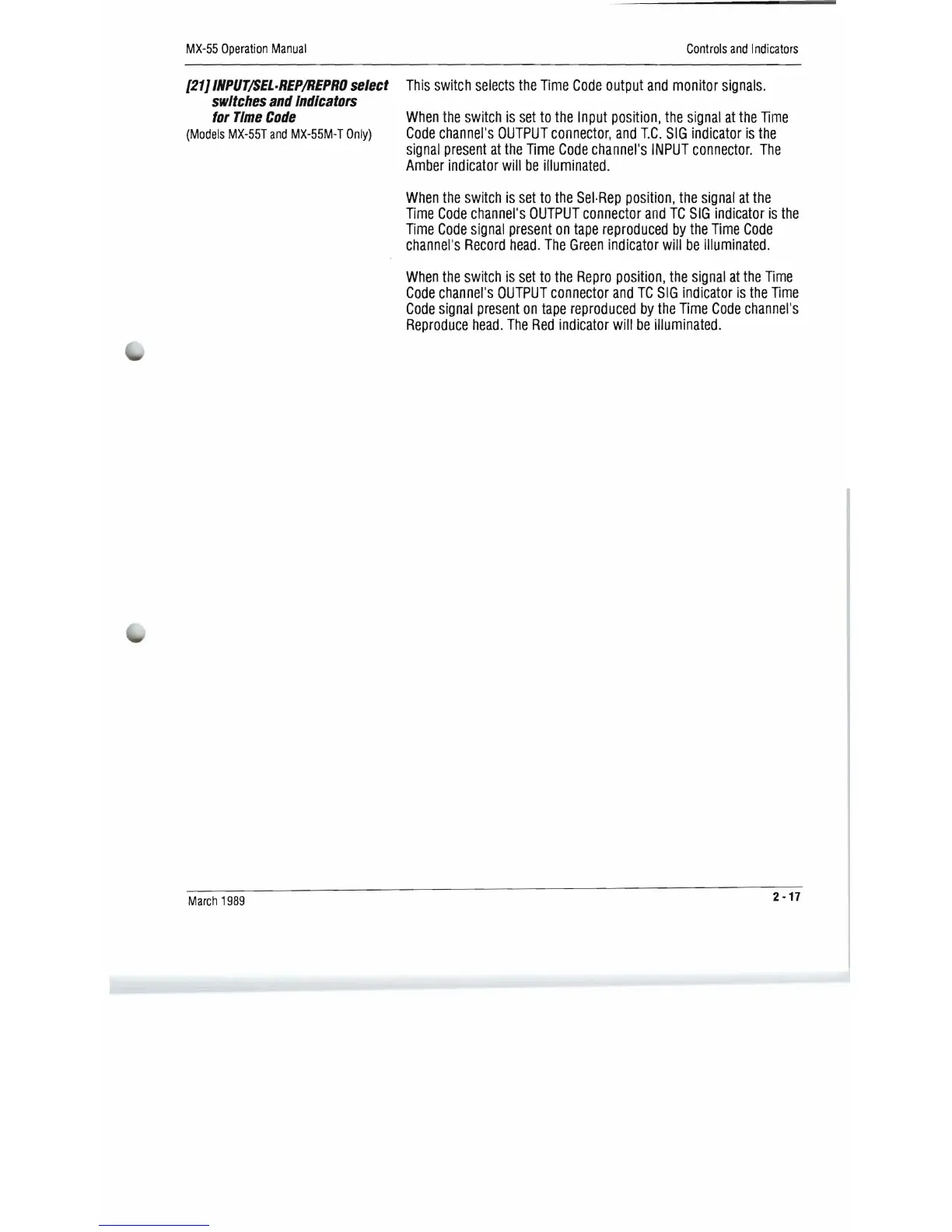

MX-55 Operation Manual
Controls and Indicators
[21J INPUT/SEL.REP/REPRO select
switches and Indicators
for Time Code
(Models MX-55T and MX-55M- T Only)
This switch selects the Time Code output and monitor signals.
When the switch is set to the Input position, the signal at the Time
Code channel's OUTPUT connector, and lC. SIG indicator is the
signal present at the Time Code channel's INPUT connector. The
Amber indicator will be illuminated.
When the switch is set to the Sel·Rep position, the signal at the
Time Code channel's OUTPUT connector and TC SIG indicator is the
Time Code signal present on tape reproduced by the Time Code
channel's Record head. The Green indicator will be illuminated.
When the switch is set to the Repro pOSition, the signal at the Time
Code channel's OUTPUT connector and TC SIG indicator is the Time
Code Signal present on tape reproduced by the Time Code channel's
Reproduce head. The Red indicator will be illuminated.
2 -17
March 1989
