HighCurrentModular InterfaceBox(PCBAPN-830-103125)
Thistypeofinterfaceboxisdesignedforuserswhorequiretheuseofalowervoltagepowersupply,
suchas12V(as long as the sensor also supports awideinputvoltagerange). Theseinterfaceboxes
alsohaveanewGPSinputconnectorcapableofacceptingTTLlevelsignalsthatoriginateinaseparate
GPSdevicethatcontainsanESDdissipationcircuit.
Table7.4: InterfaceBoxConnectionDiagram(PCBAPN-830-104249)

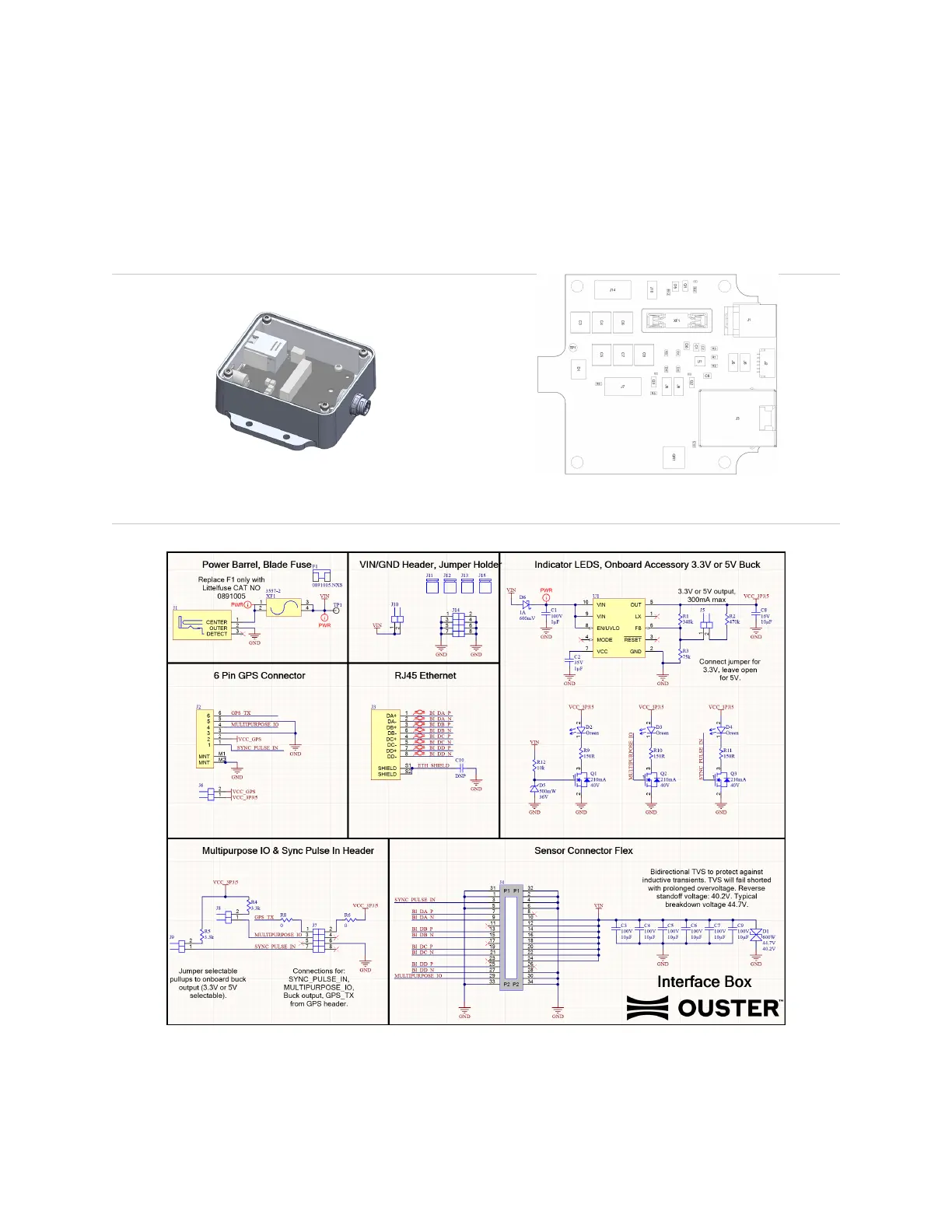

Fig.7.7: InterfaceBox12VDesign
Fig.7.8: ModularInterfaceBoxConnectionDia-
gram(PCBAPN-830-103125)
Figure 7.9: ModularInterfaceBoxSchematicDiagram
28
