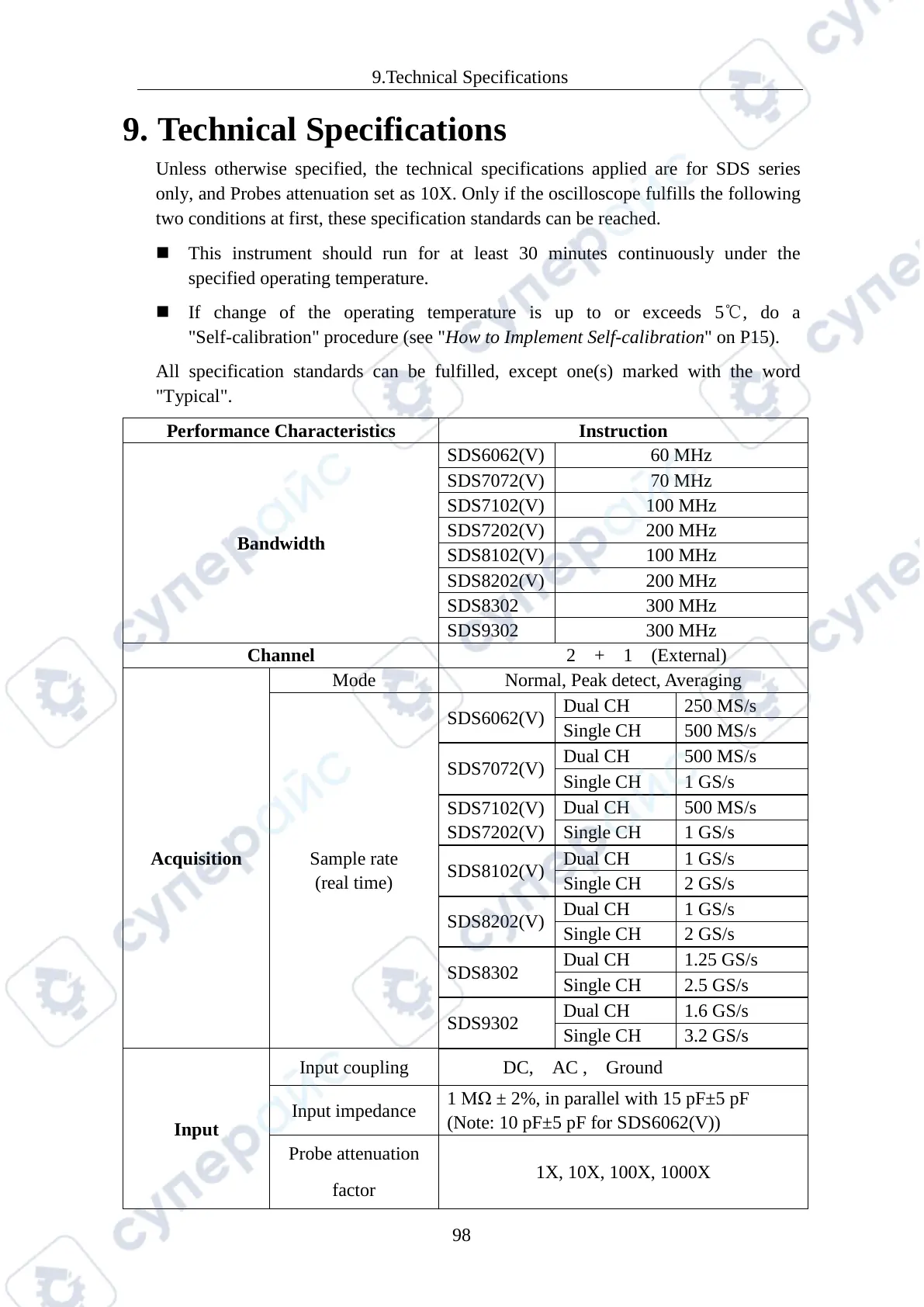

9. Technical Specifications
Unless otherwise specified, the technical specifications applied are for SDS series
only, and Probes attenuation set as 10X. Only if the oscilloscope fulfills the following
two conditions at first, these specification standards can be reached.
 This instrument should run for at least 30 minutes continuously under the
specified operating temperature.
 If change of the operating temperature is up to or exceeds 5℃, do a
"Self-calibration" procedure (see "How to Implement Self-calibration" on P15).
All specification standards can be fulfilled, except one(s) marked with the word
"Typical".
Performance Characteristics
Instruction
Bandwidth
SDS6062(V)
60 MHz
SDS7072(V)
70 MHz
SDS7102(V)
100 MHz
SDS7202(V)
200 MHz
SDS8102(V)
100 MHz
SDS8202(V)
200 MHz
SDS8302
300 MHz
SDS9302
300 MHz
Channel
2 + 1 (External)
Acquisition
Mode
Normal, Peak detect, Averaging
Sample rate
(real time)
SDS6062(V)
Dual CH
250 MS/s
Single CH
500 MS/s
SDS7072(V)
Dual CH
500 MS/s
Single CH
1 GS/s
SDS7102(V)
SDS7202(V)
Dual CH
500 MS/s
Single CH
1 GS/s
SDS8102(V)
Dual CH
1 GS/s
Single CH
2 GS/s
SDS8202(V)
Dual CH
1 GS/s
Single CH
2 GS/s
SDS8302
Dual CH
1.25 GS/s
Single CH
2.5 GS/s
SDS9302
Dual CH
1.6 GS/s
Single CH
3.2 GS/s
Input
Input coupling DC, AC , Ground
Input impedance
1 MΩ ± 2%, in parallel with 15 pF±5 pF
(Note: 10 pF±5 pF for SDS6062(V))
Probe attenuation
factor
1X, 10X, 100X, 1000X
