9.Technical Specifications
103

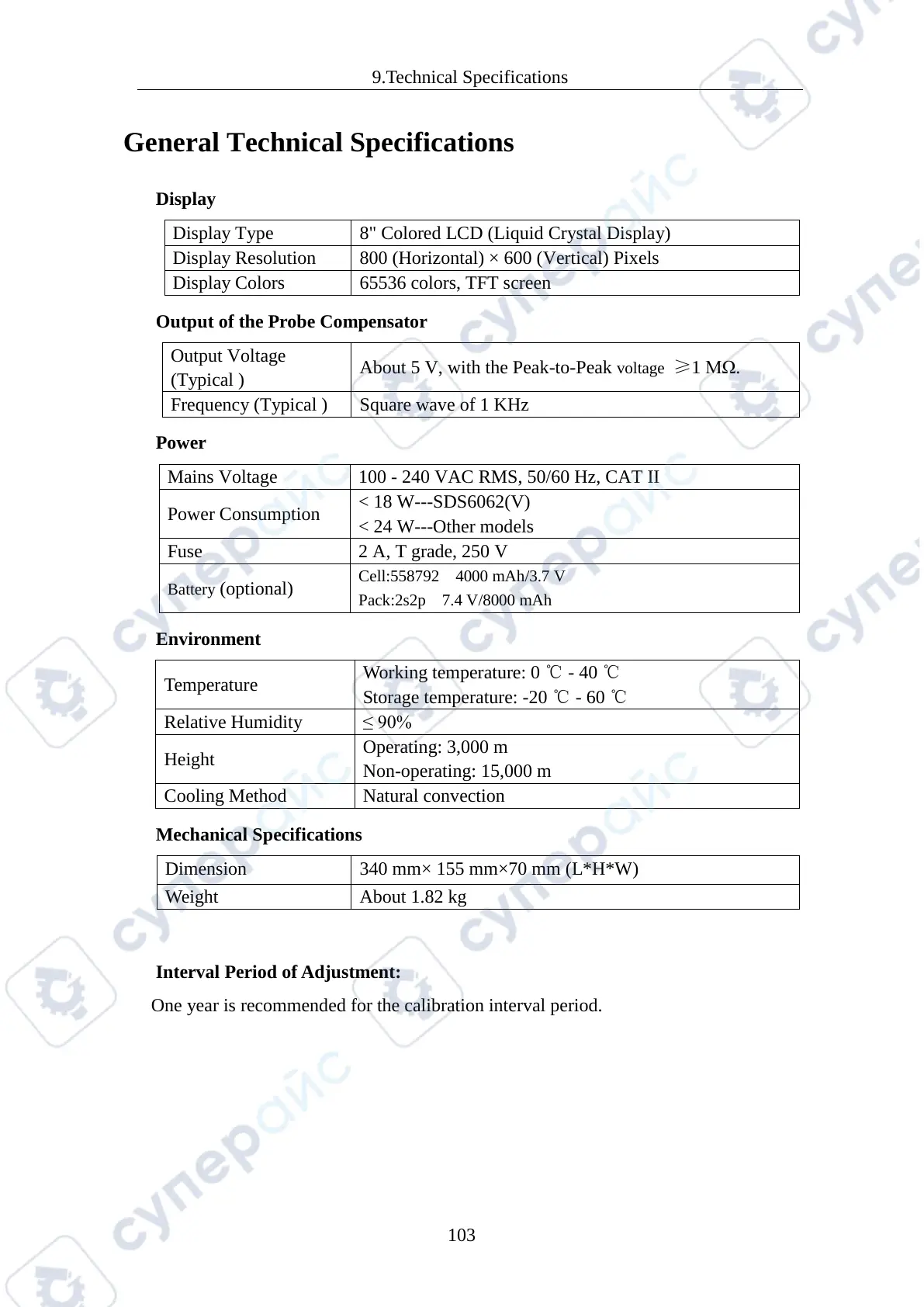

General Technical Specifications
Display
Display Type
8" Colored LCD (Liquid Crystal Display)
Display Resolution
800 (Horizontal) × 600 (Vertical) Pixels
Display Colors
65536 colors, TFT screen
Output of the Probe Compensator
Output Voltage
(Typical )
About 5 V, with the Peak-to-Peak voltage ≥1 MΩ.
Frequency (Typical )
Square wave of 1 KHz
Power
Mains Voltage
100 - 240 VAC RMS, 50/60 Hz, CAT II
Power Consumption
< 18 W---SDS6062(V)
< 24 W---Other models
Fuse
2 A, T grade, 250 V
Battery (optional)
Cell:558792 4000 mAh/3.7 V
Pack:2s2p 7.4 V/8000 mAh
Environment
Temperature
Working temperature: 0
℃
- 40
℃
Storage temperature: -20
℃
- 60
℃
Relative Humidity
≤ 90%
Height
Operating: 3,000 m
Non-operating: 15,000 m
Cooling Method
Natural convection
Mechanical Specifications
Dimension
340 mm× 155 mm×70 mm (L*H*W)
Weight
About 1.82 kg
Interval Period of Adjustment:
One year is recommended for the calibration interval period.
