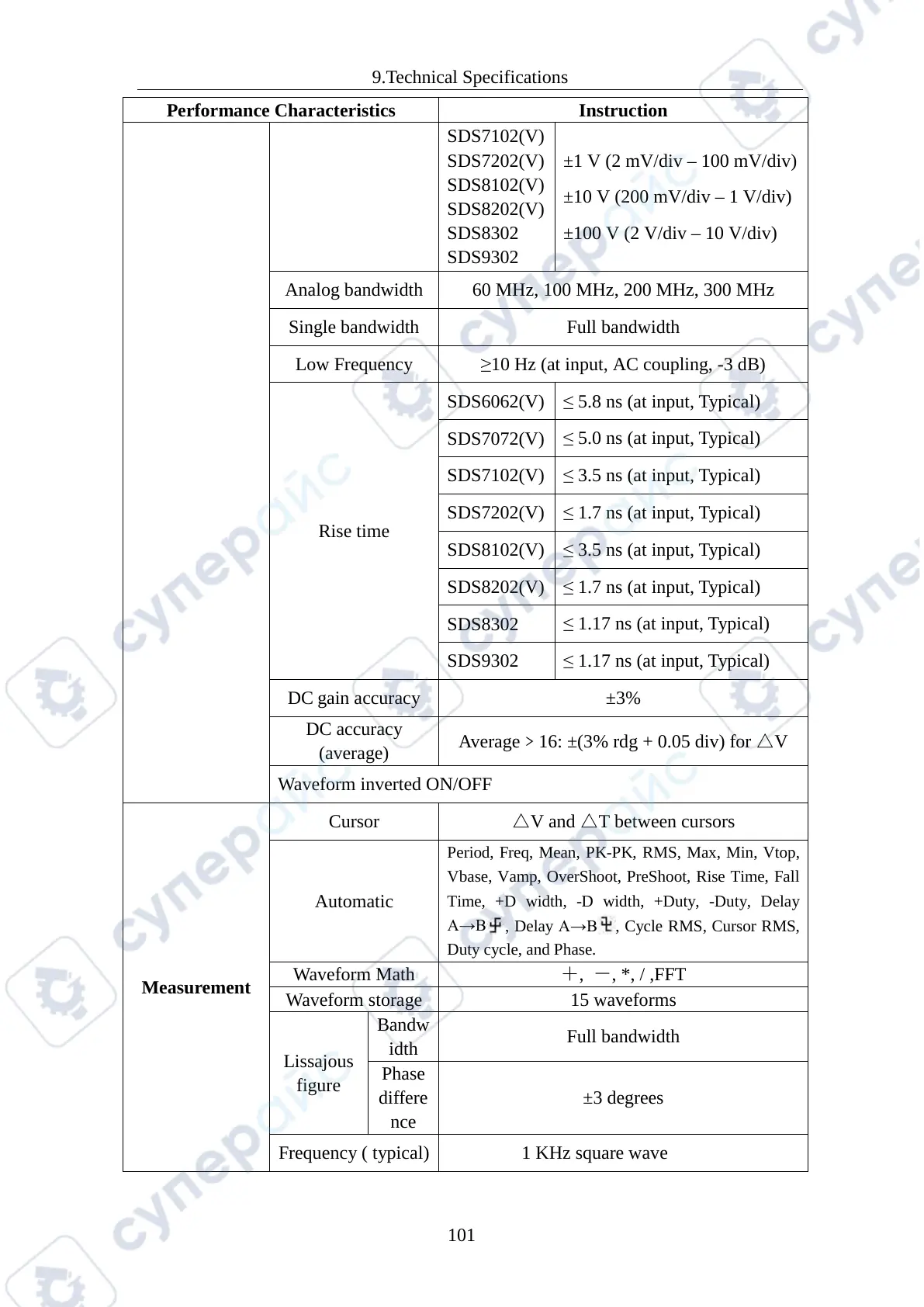

9.Technical Specifications
101
Performance Characteristics
Instruction
SDS7102(V)
SDS7202(V)
SDS8102(V)
SDS8202(V)
SDS8302
SDS9302
±1 V (2 mV/div – 100 mV/div)
±10 V (200 mV/div – 1 V/div)
±100 V (2 V/div – 10 V/div)
Analog bandwidth 60 MHz, 100 MHz, 200 MHz, 300 MHz
Single bandwidth Full bandwidth
Low Frequency ≥10 Hz (at input, AC coupling, -3 dB)
Rise time
SDS6062(V)
≤ 5.8 ns (at input, Typical)
SDS7072(V)
≤ 5.0 ns (at input, Typical)
SDS7102(V) ≤ 3.5 ns (at input, Typical)
SDS7202(V) ≤ 1.7 ns (at input, Typical)
SDS8102(V) ≤ 3.5 ns (at input, Typical)
SDS8202(V)
≤ 1.7 ns (at input, Typical)
SDS8302
≤ 1.17 ns (at input, Typical)
SDS9302
≤ 1.17 ns (at input, Typical)
DC gain accuracy ±3%
DC accuracy
(average)
Average﹥16: ±(3% rdg + 0.05 div) for △V
Waveform inverted ON/OFF
Measurement
Cursor
△V and △T between cursors
Automatic
Period, Freq, Mean, PK-PK, RMS, Max, Min, Vtop,
Vbase, Vamp, OverShoot, PreShoot, Rise Time, Fall
Time, +D width, -D width, +Duty, -Duty, Delay
A→B
, Delay A→B , Cycle RMS, Cursor RMS,
Duty cycle, and Phase.
Waveform Math
＋
,
－
, *, / ,FFT
Waveform storage
15 waveforms
Lissajous
figure
Bandw
idth
Full bandwidth
Phase
differe
nce
±3 degrees
Frequency ( typical) 1 KHz square wave
