OXIGRAF O2iM User Manual

Oxigraf O2iM NEMA 4X Oxygen Analyzer
February 13, 2007 08-0427-B0, Manual, O2iM.doc Page 8
2.4.2 Performance Specifications
Range: 5 to 100%
Resolution: 0.1%
Stability (24 hrs): +- 0.5%
Linearity: +-0.2%
Cross-sensitivity: +-0.2%, and gas mixture.
Response time; 1s @350 ml/min flow and electronic filter setting 6.
Alarms (4): Oxygen A, Oxygen B, Low Flow, System Check
Relays: Form C (SPDT), 5 A, 250 VAC rating.
Analog Output: 4 – 20 mA programmable from front panel
Sample Inlet Fittings: 10-32 UNF, 1/16 “ flex tubing barbs std.
2.4.3 Electrical Specifications
Sensor power requirements 15 to 32 VDC, 1.4 A max, 0.4 A typical at 24 VDC
AC power supply 100 to 230 VAC, 50 to 60 Hz
2.4.4 Mechanical Specifications

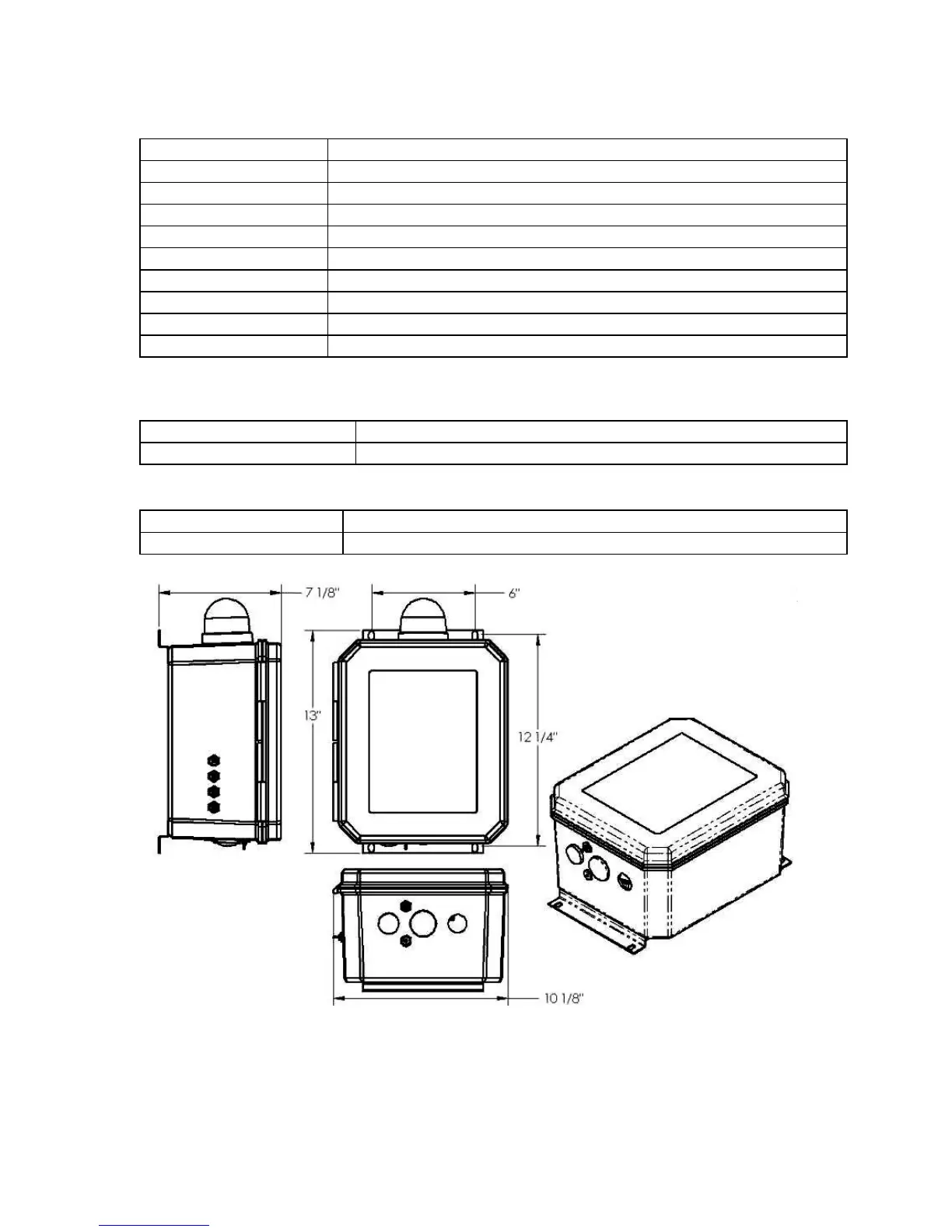

Dimensions See Below
Weight 8 lb. (5 Kg)

OXIGRAF O2iM Specifications

General

Brand	OXIGRAF
Model	O2iM
Category	Monitor
Language	English
