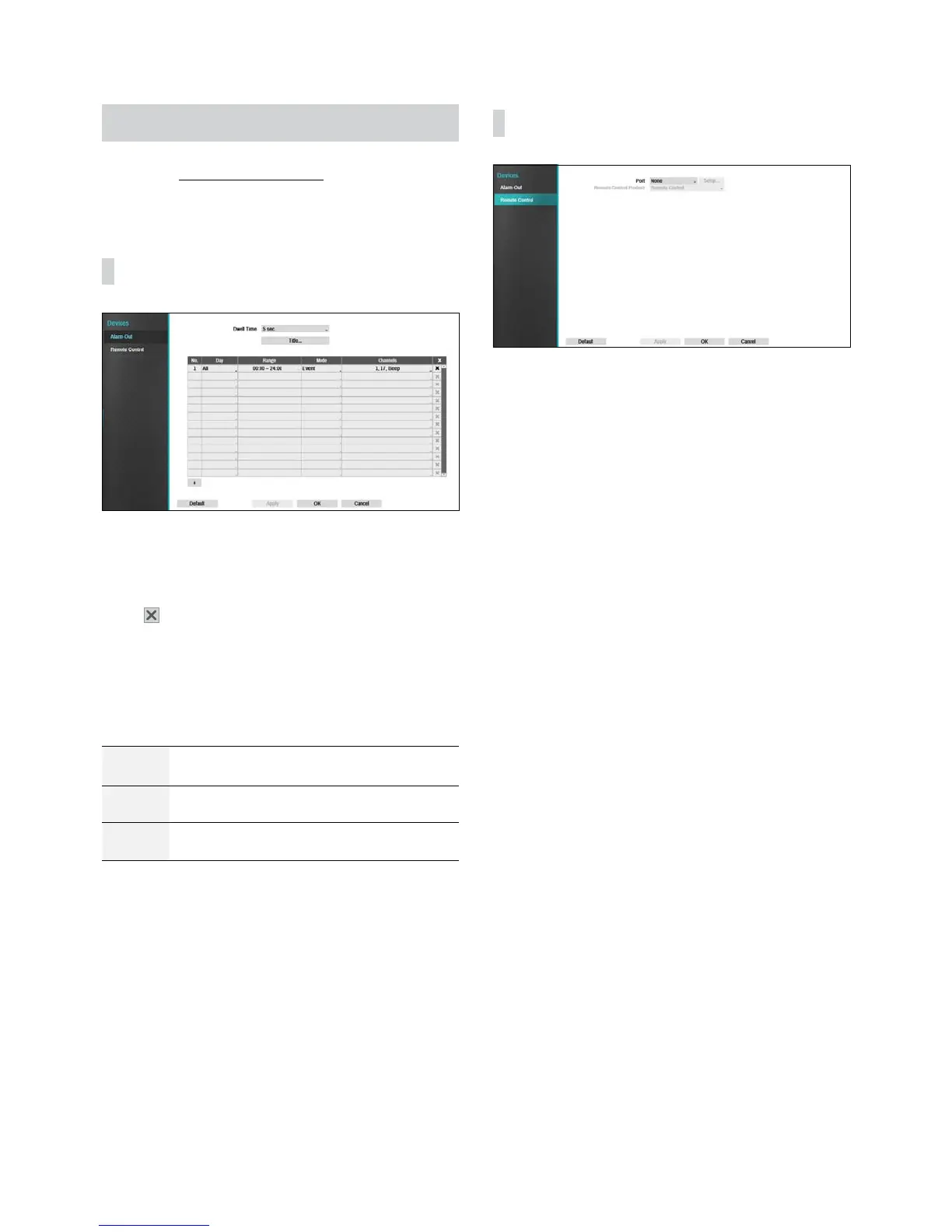

Part 3 - Conguration
62
Device Setup
Refer to the Menu Use on page 36 for basic
information on using the Setup menus.
Alarm-Out
Select the + icon at the bottom left corner of the screen
to add a schedule.
You can apply dierent schedules for dierent Days of
the week.
Select
icon to delete the schedule.
t Dwell Time: Select a value between 5 secs and 15
mins as the alarm-out duration.
t Title: Designate a name for the alarm-out.
t Range: Change the schedule time frame.
t Mode: Select Event, On, or O.
Event
Generates an alarm-out when an event
occurs.
On Alarm-out is always on.
O
Alarm-out is always o.
t Channels: Congure alarm-out port and beep
settings.
Remote Control
t Port: Select None, RS232 or RS485. Click the Setup
button and then select the correct Baud Rate,
Parity, Data Bits and Stop Bits for the device you are
connecting to the NVR. You can select the device from
the Remote Control Product list. If the RS232 port
and RS485 port are in use for PTZ control, networking
or text input, the remote keyboard cannot be
congured. A warning message window will appear
when other devices are using the same port, such as
PTZ control, networking or text input. The message
warns that you cannot use another device because
the ports overlap.
