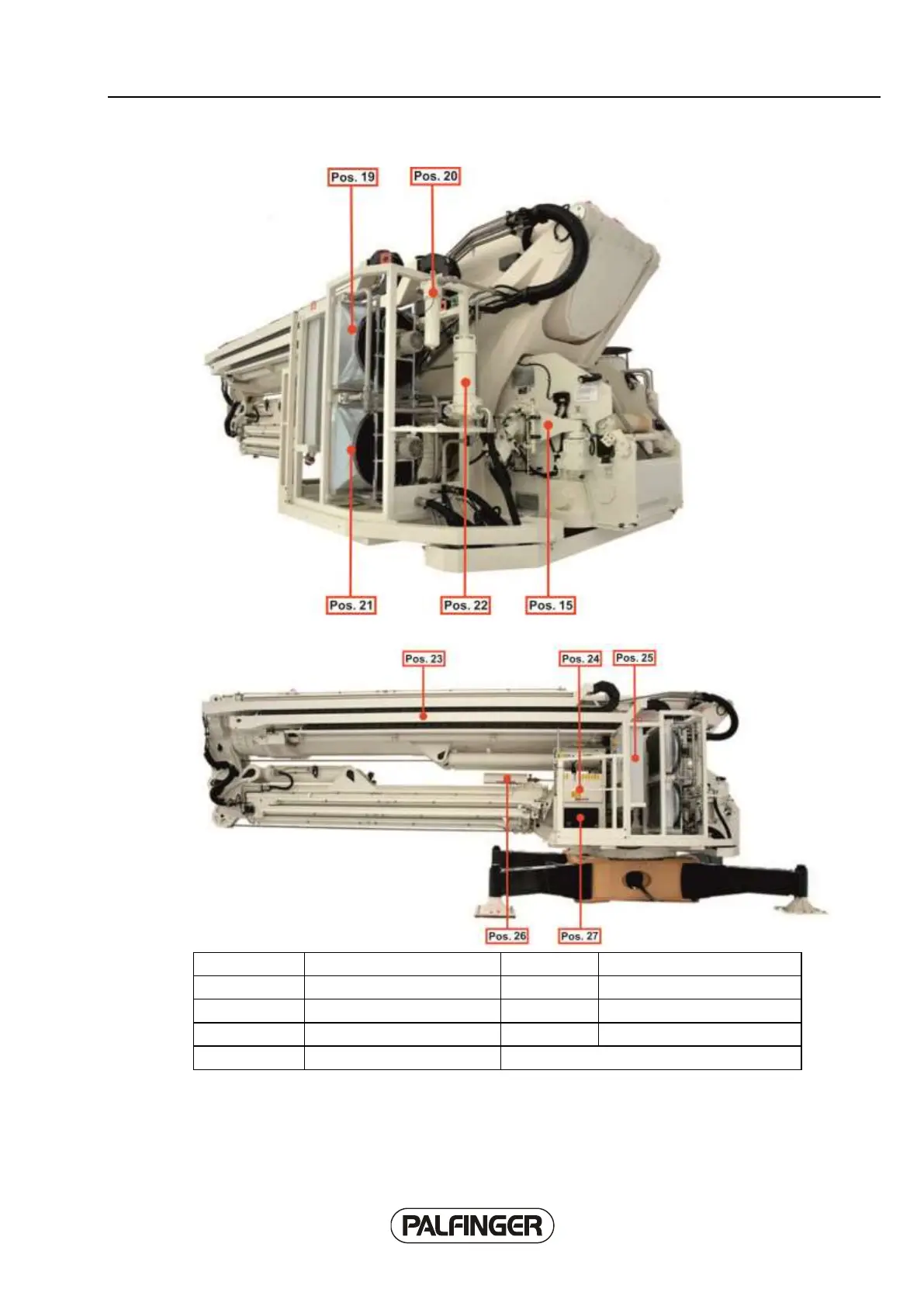

Chapter 4 Device and function
23
Item 19
Oil cooler 1
Item 24
Operator station
Item 20
High pressure filter
Item 25
Switch cabinet of power unit
Item 21
Oil cooler 2
Item 26
Rope protection cylinder
Item 22
Filter for cooling circuit
Item 27
Paltronic 150 control
Item 23
Hose assembly
