Palfinger Clocktower PK2400 TK - Overview of Operator Station

Chapter 4 Device and function
29

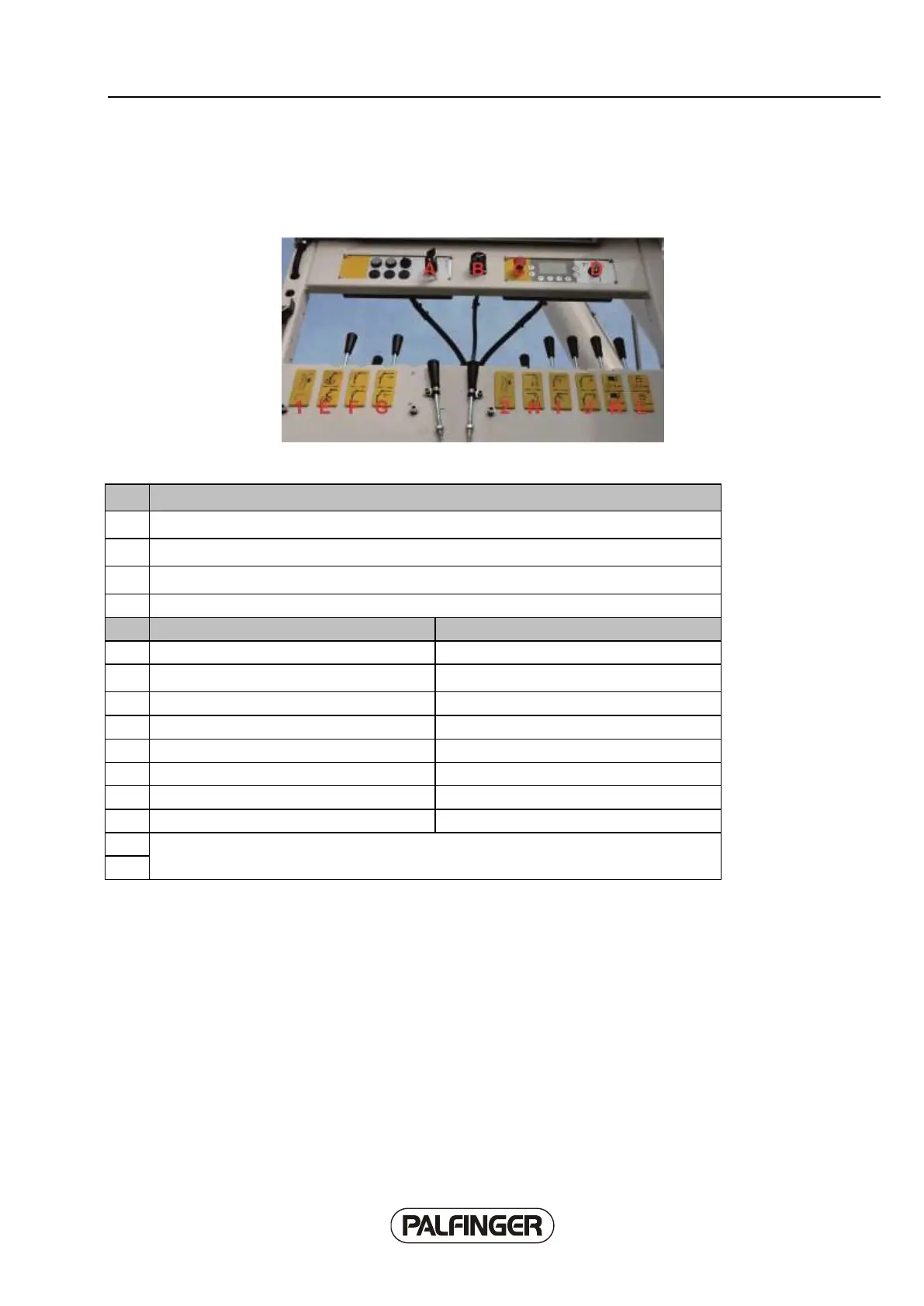

Overview of operator station
Description
A
Key switch - Workman basket and crane operation
B
Connection for remote control cable
C
Emergency cut-off
D
Key switch - Stabilizer (free), RC and manual control
Function towards the body
Function away from body
E
Slewing drive to the left
Slewing drive to the right
F
Lift main boom
Lower main boom
G
Retract extension booms
Extend extension booms
H
Raise rope winch
Lower rope winch
I
Lift outer boom
Lower outer boom
J
Retract extension booms
Extend extension booms
K
Extend rope protection cylinder
Retract rope protection cylinder
L
Lock the crane interlock
Unlock the crane interlock
1
Emergency control
2
