Chapter 4 Device and function

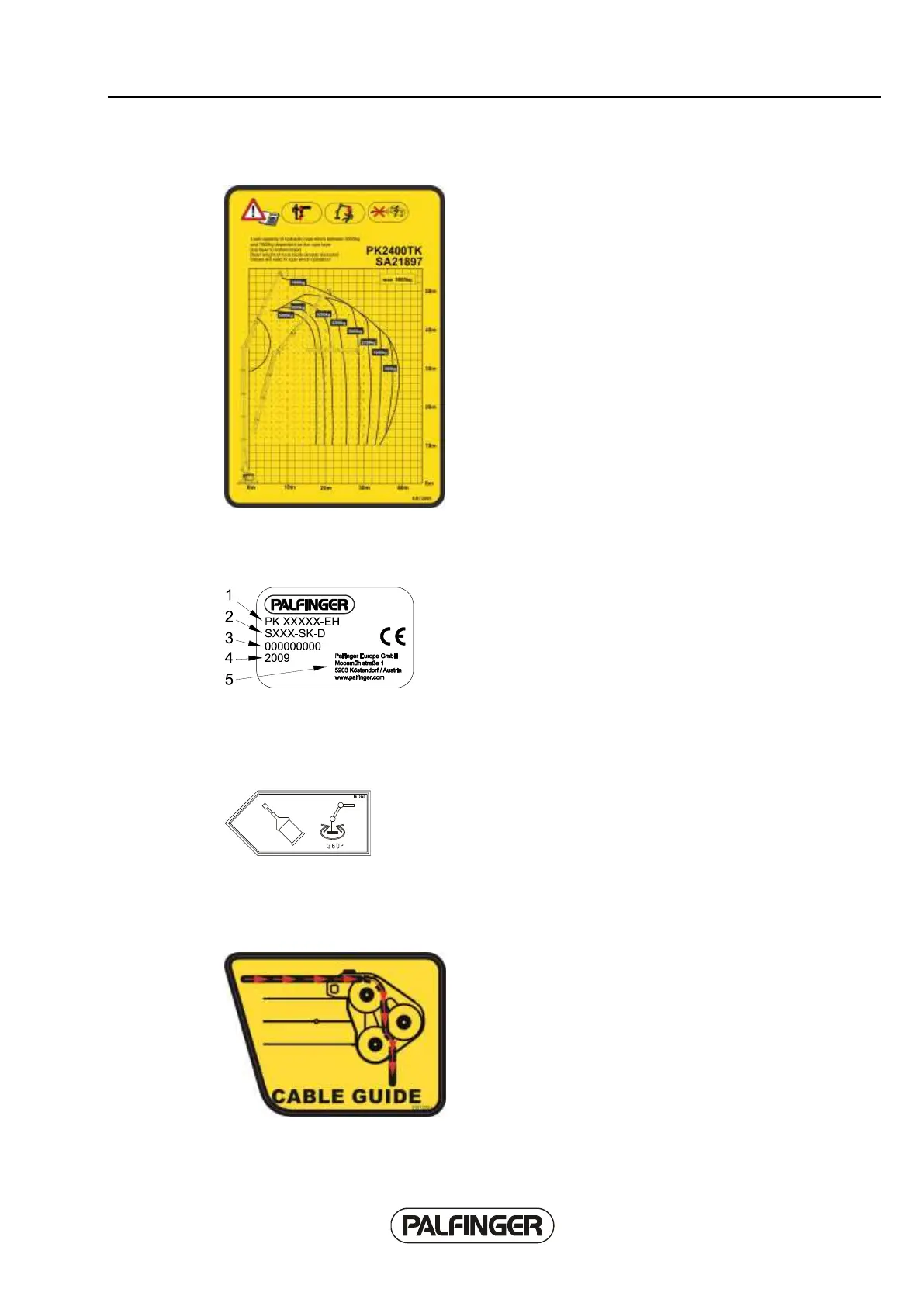

5. Load capacity label
Position:
Operating stand, main boom
Meaning:
Specification of loads, load ranges and ranges.
Risk if ignored:
Crane overload, forces in foundations exceeded -> danger of
breakage
6. Type plate
Position: On the crane column.
Meaning: Information about
1 Machine type
2 Internal code
3 Serial number
4 Year built
5 Company address
The identification plate may not be changed or removed.
7. Instruction label '360° Slewing during lubrication'
Position:
On the slewing ring near the lubrication points
Meaning:
Indicates the bearing points to be lubricated.
Risk if ignored:
Premature failure of bearing components.
8. Deflection pulley
Position: Fly-jib
Meaning: Rope guidance
Risk if ignored: Rope operation endangered
